Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS; FDA |
Model Number: | UPSE-8732D160 |
Minimum Order Quantity: | 500m2 |
Price: | $1.6~3/m2 |
Packaging Details: | 50 meters one roll, 20 rolls one pallet |
Delivery Time: | 15days after receive the payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 100000m2/Month |
Material: | Silicone | Coating Sides: | 2 Sides |
---|---|---|---|
Weight: | 590g/m2 | Thickness: | 0.5mm |
Width: | 1/1.2/1.5m | Weave: | 4HS |
Roll Length: | 50m | Temperature: | -50~260℃ |
Type: | E-Glass | Color: | Red |
Highlight: | silicone coated glass cloth,silicone coated glass fabric |
High Intensity Welding Blanket Red Silicone Coated Fiberglass Fabric 590g Weight
Silicone Coated Fiberglass Fabric is a new composite material which is made of high strength glass fiber cloth and is compounded by special process of silicone rubber. Since it has high insulation performance and multi-usage, silicone glass fiber has been widely used in industries such as machinery,transportation, petroleum, aerospace, chemical,construction, large-scale power generation equipment, metallurgy, electrical insulation, etc..
The width can be customized as sheet below, and the coating weight also can be made as your requirements.
DATA:
Main Specifications | |||||
Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
UPSE-8732D160 | 590 | 0.5 | 1/1.2/1.5 | grey,red,white | 2 |
UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
Properties:
1.Fire prevention
Fiberglass Sunglasses have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred. Ordinary fabric, after the fire, the entire skeleton is burned and charred.
2.High Temp. resistance, working temeperature can be from -50℃ to 260℃.
3.Good insulation performance
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy
4. low friction coefficient, is the best choice for oil-free self-lubrication.
5.Anti-stripping
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.
6.Chemical resistant, can withstand the corrosion of strong acid, alkali, aqua regia and various organic solvents.
Applications:
1.Construction
glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
2.Enhanced Materials
Glass fiber cloth is generally used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
3.Industry
Heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
4.Anti-corrosion aspect
Silicone-coated glass fiber can be used as the inner and outer anti-corrosion layer of pipelines and storage tanks. It has excellent anti-corrosion performance, high temperature resistance and high strength. It is an ideal anti-corrosion material.

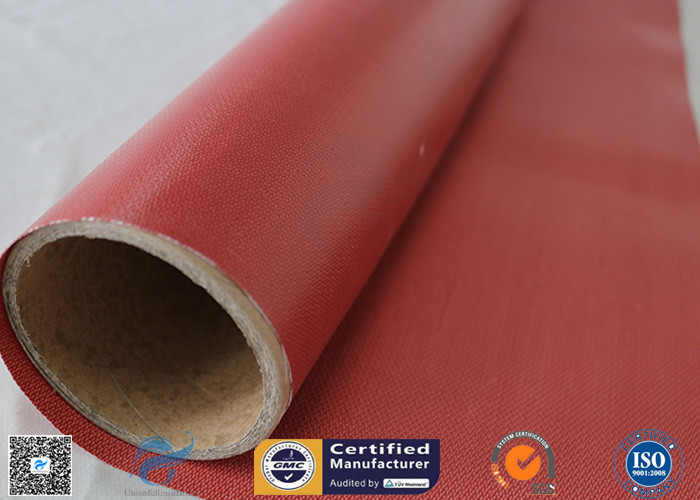

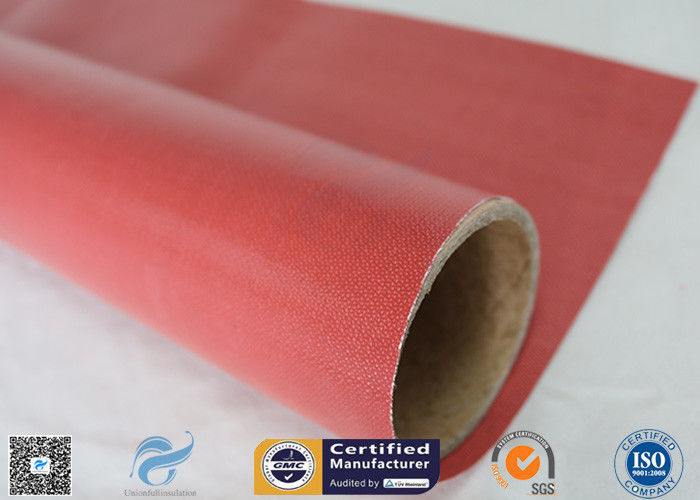

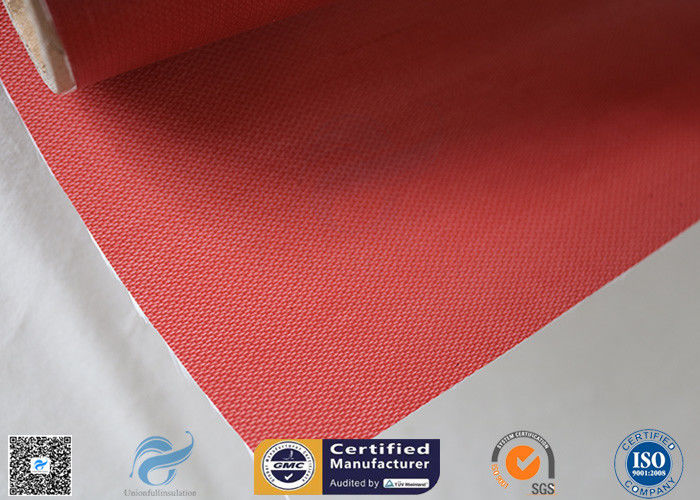

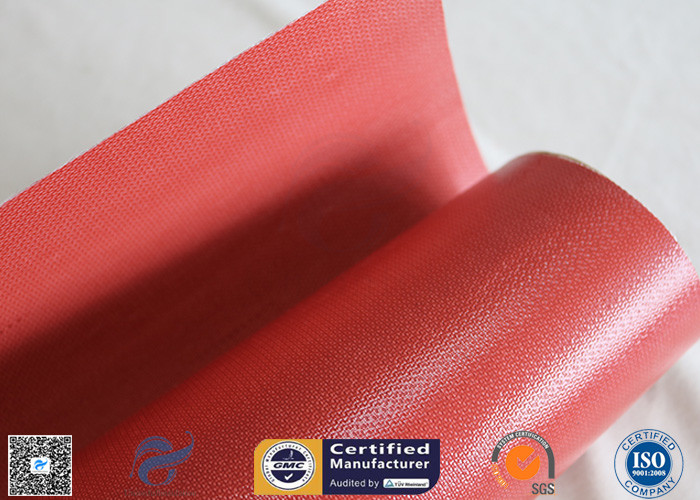

Pictures:
Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
