Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation

China Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation supplier
Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation supplier Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation supplier Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation supplier Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation supplier

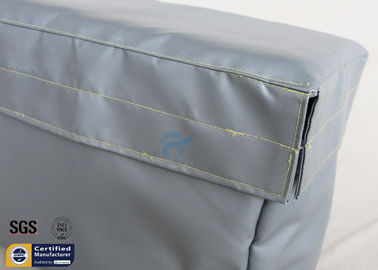

Large Image :  Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UNP8IJG-A-25

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: $20--$45 one piece
Packaging Details: 10-12 pcs in woven bag
Delivery Time: 3 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3,200 PCS Per Day
Contact Now
Detailed Product Description
Materials: Fiberglass Cloth + Needled Mat Total Thickness: 25mm
Color: Grey Inside Size: Customized Design
Open With: Fire Retardant Hook And Loop Work Temperature: -50 To 260℃

Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation


Removable thermal insulation jacket is designed to warp pumps, filters, valves, pipe, turbine and actuators for heat&electrical insulation. It is made of grey silicone coated fiberglass fabric and fiberglass needle mat.



Silicone fiberglass cloth is heat resistant, oil&moisture resistant, electrical insulation and anti chemical corrosion. With silicone coating on two sides, the coated cloth is still flexible and easy to fabricate without fraying. Silicone coated fabric can withstand continuous heat below 260℃. Inside 25mm wadding material e-glass needled mat can resist continuous heat below 800℃. E-glass needle mat is anti corrosion, chemical agents.



Data Sheet



Item Name Removable Thermal Insulation Mattress
Fit Actuator
Weight 3KG
Thickness 25mm
Size Customized
Outside Materials Name Silicone Coated Fiberglass Cloth
Work Temperature Fiberglass Cloth: 550℃
Silicone Coating:260℃
Inside Materials Name Fiberglass Needle Mat
Work Temperature 800℃ Continuously


IR Test


IR Test result of removable jacket showed that when the temperature in equipment goes up to 300℃ continuously, the surface temperature of this jacket is below 40℃.


Features


  • Removable, easy to install and remove
  • High temperature materials
  • Low heat loss
  • Low surface temperature
  • Chemical, oil&moisture resistant


Images

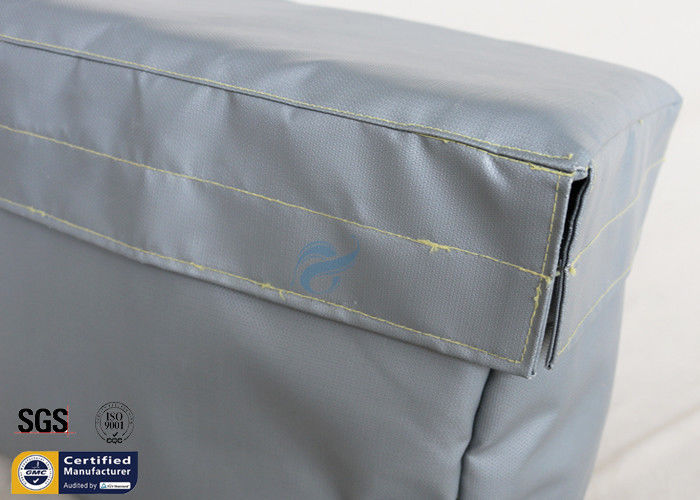

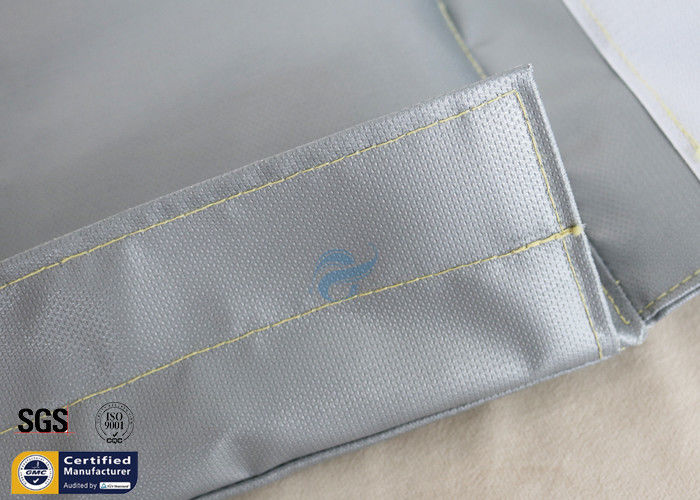

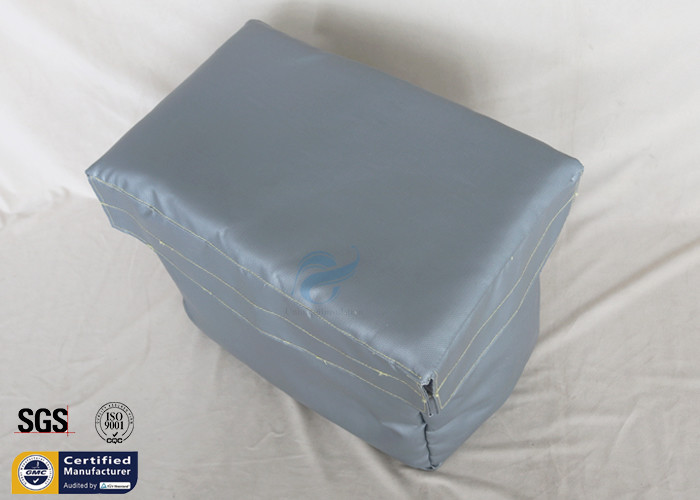

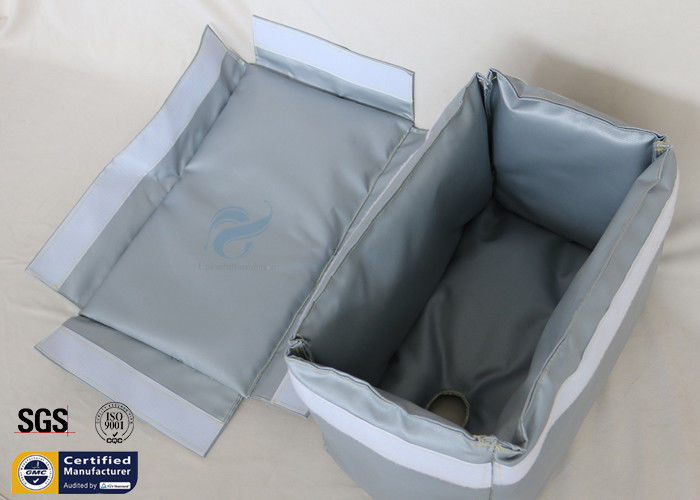

Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation



Fiberglass Thermal Insulation Jackets Removable Grey 260℃ Electrical Insulation
