260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover

China 260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover supplier
260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover supplier 260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover supplier 260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover supplier 260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover supplier

Large Image :  260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UNP8IJG-A-25

Payment & Shipping Terms:

Minimum Order Quantity: 20PCS
Price: $20--$48 one piece
Packaging Details: 10-12pcs in woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, Western Union, T/T
Supply Ability: 2,500 PCS Per Day
Contact Now
Detailed Product Description
Material: Fiberglass Cloth+Needle Mat Weight: 3kg
Thickness: 25mm Color: Grey
Size: Customized Work Temperature: <260℃

260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover



Removable jacketed insulation covers of pumps, filters, valves, pipeline, engine for cold&heat protection is made of silicone coated fiberglass fabric and fiberglass needle mat.  It is able to keep the inside equipments in stable work environment. Fiberglass cloth is a flexible but high stength material. It is easy to fabricate. Its design provides quick removal and re-application, so this insulation blanket is widely used in industrial fields. This jacket is open by fire retardant velcro and metal buckles. We can also produce it based on customers' drawing.



Design of thermal insulation jacket is sandwich style. There is 800℃ heat resistant fiberglass needle mat between two layers of 260℃ silicone coated fiber glass fabric. With this insulation mattresses, high temp air, gas, oil or hot liquid in the equipment will be insulated so that workers won't feel itchy or too hot when they touch the equipments.




Data Sheet



Item Name Removable Exhaust Covers
Fit Actuator
Weight 3KG
Thickness 25mm
Size Customized
Outside Materials Name Silicone Coated Fiberglass Cloth
Work Temperature Fiberglass Cloth: 550℃
Silicone Coating:260℃
Wadding Materials Name Fiberglass Needle Mat
Work Temperature 800℃ Continuously


IR Test


IR test result of this thermal insulation blanket showed that when the temperature inside of the equipment goes up to 300℃, the surface of blanket is below 32℃ continuously.

Features



  • Install and remove easily
  • Continuous heat resistant 260℃
  • Low heat loss
  • Surface temperature will be below 40℃
  • Smooth surface, no irritating, hurt
  • Chemical agents, oil resistant
  • High strength, long using life



Images

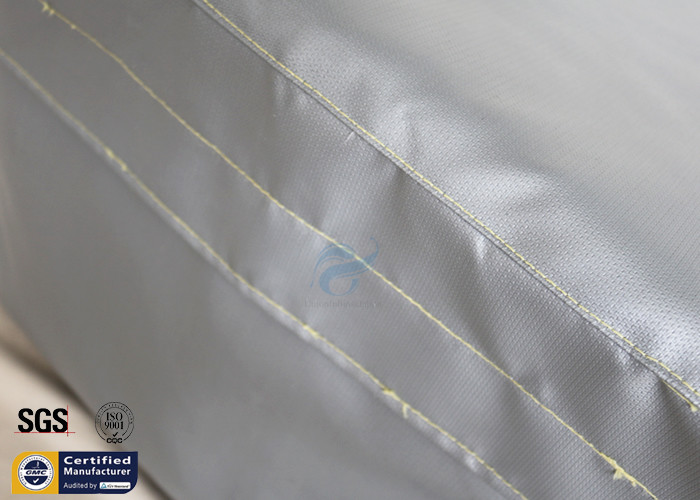

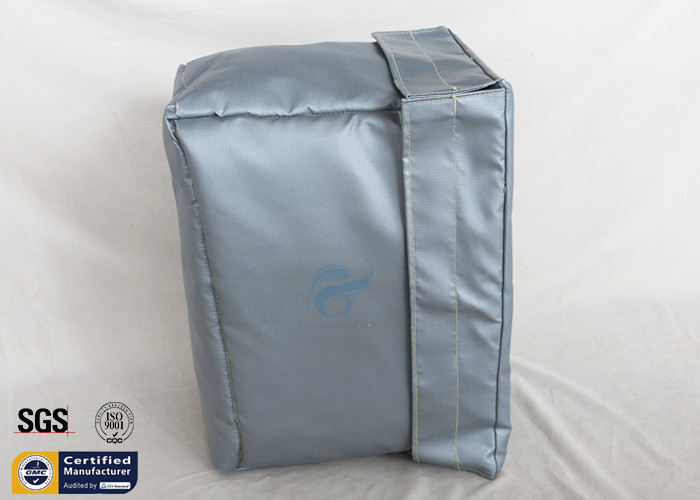

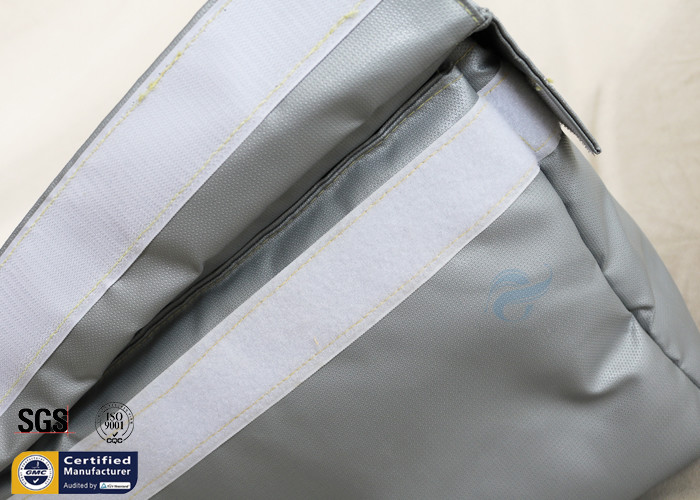

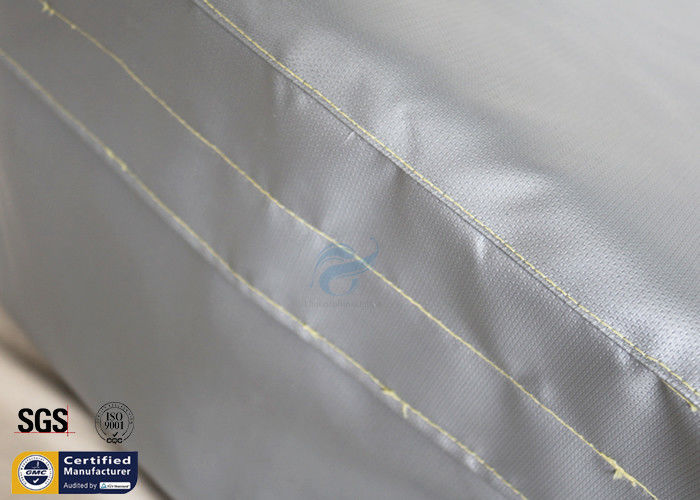

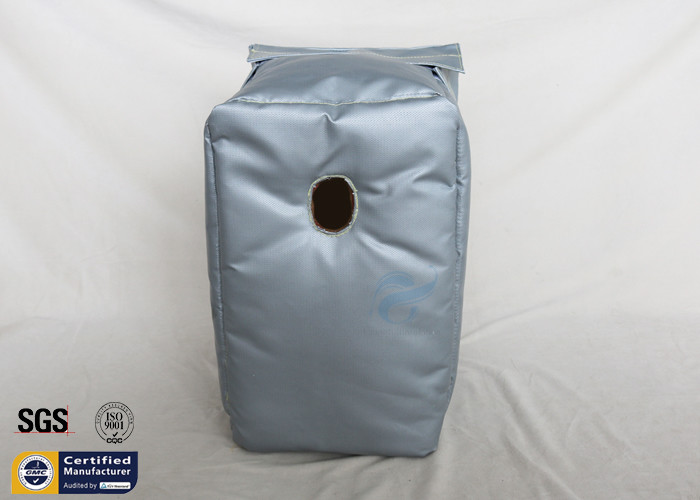

260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover



260℃ Valves Thermal Insulation Jacket 25MM Removable Fiberglass Pumps Cover
