Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket

Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket
Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8732S100
Minimum Order Quantity: 100 Meters
Price: $3 - 5 / Square Meter
Packaging Details: 50 meters one roll in carton
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 45,000 m2 per day
Get Best Price Contact Now
Basic Cloth: 430g/m2 Fiber Glass Coating: Silicone Rubber
Weave: Cross Twill, Satin Total Weight: 530g/m2
Width: 1000MM Length: 50m One Roll
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket



Basic cloth of 530gsm silicone coated fiberglass fabric is 3732 e-glass 4H satin (break twill) weave fabric. With black color silicone rubber on single side, the finish coated glass fiber fabric is weighed at 530g/m2 (about 15.6oz/sq.yd). Thickness is 0.43mm and standard roll width and length is 1 meter wide and 50 meters. Silicone coated glass fiber cloth is resistant to moisture, sunlight, oil, chemical agents, corrosion etc. Also this coated fiberglass fabric has properties like high tensile strength and durability, which makes it a ideal heat insulation material for fire&welding blanket.



Silicone coating provides great electrical insulation. Basic fiberglass fabric is able to withstand heat below 550℃ continuously. Silicone coating can resist heat under 260℃. Silicone coated fiberglass fabrics are mainly used for electric welding cover, removable insulation jackets, mattress and pad, fire blanket, smoke screen curtain, pipe cover, flexible joints.



Specification:

Item Silicone Coated Fiberglass Fabric
Material Fiberglass Cloth
Coating Silicone, Single Side
Weave 4H Satin
Thread Count (Ends/CM) 20/11
Total Weight 530g/m2
Thickness 0.43mm
Width 1000mm
Roll Length 50 meters
Work Temperature

Silicone coating below 260℃

Fiberglas cloth below 550℃


Features:



  • Electrical insulation
  • Flame resistant
  • Durable, chemical resistant
  • Anti corrosion
  • Tear resistant
  • Non-hazardous, non toxic


Application:



  1. Fire blanket
  2. High temp welding blankets
  3. Smoke screen curtain
  4. Hot works operations
  5. Engineer thermal insulation

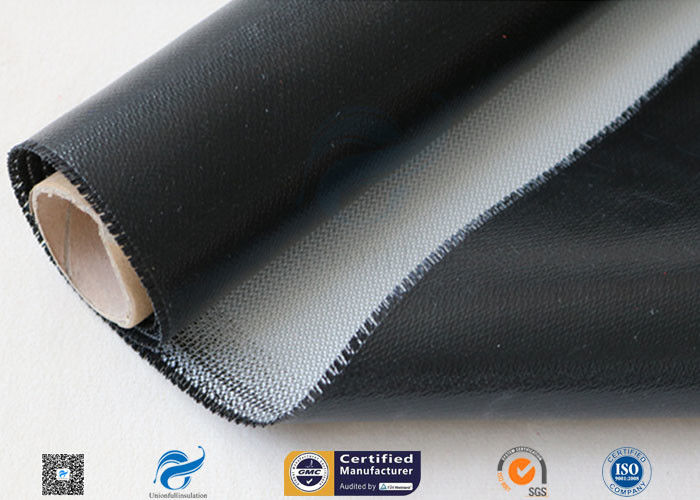

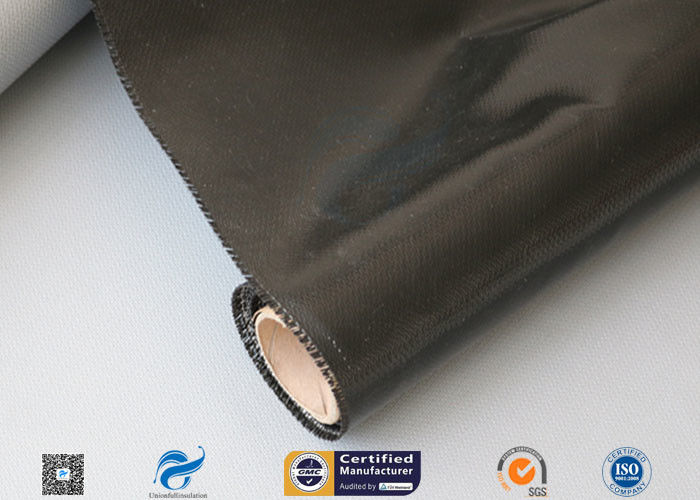

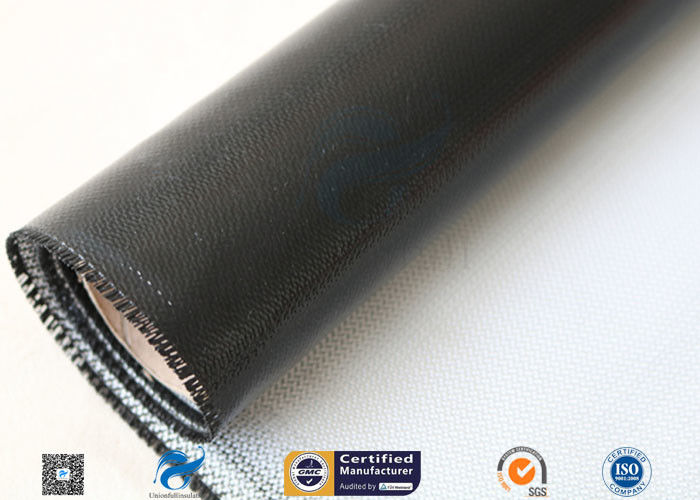

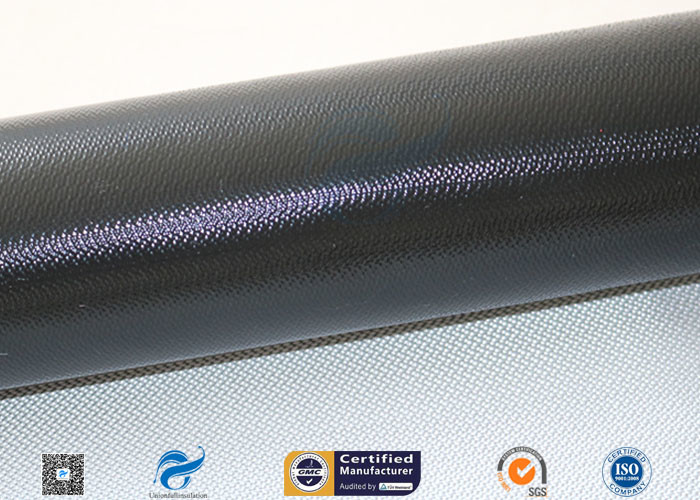

Pictures:



Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket 0Black Silicone Coated Fiberglass Fabric 3732 530GSM Insulated Welding Blanket 1
