Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective

Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective
Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732
Minimum Order Quantity: 100m
Price: $2.3--$3.85/ meter
Packaging Details: One roll in fiberglass fabric packing
Delivery Time: 2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 47,000 Square Meters Per Day
Get Best Price Contact Now
Basic Cloth: 3732 Fiber Glass Fabric Surface: Aluminium Foil
Weight: 430gsm, About 12.7oz Thread Count: 19.6/11.5 Per CM
Length: 50 Meters One Roll Temperature: 300℃ Continuously
Highlight:

carbon fiber fabric

,

silver carbon fiber

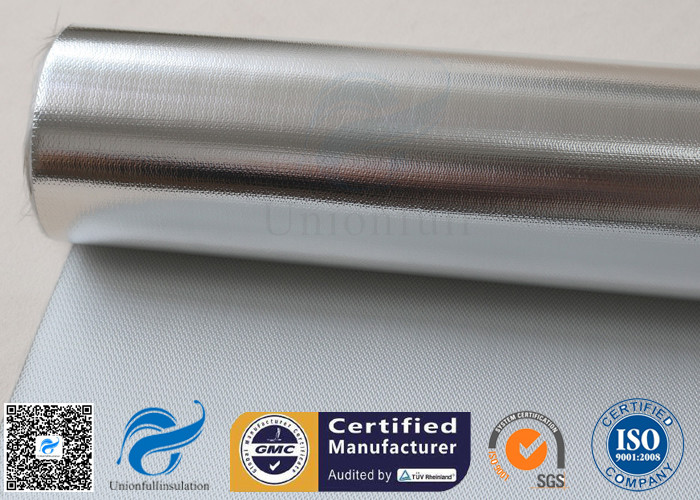

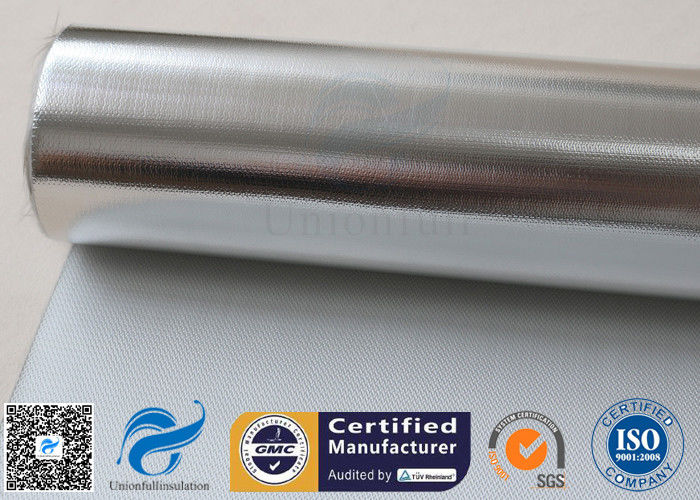

Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective

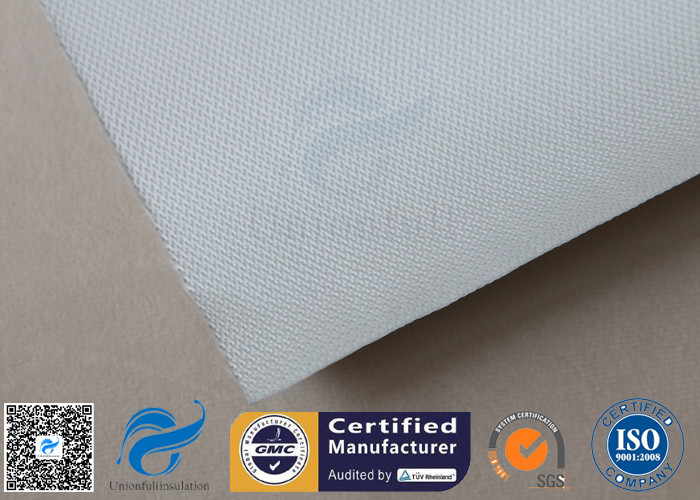

Heat reflective aluminium foil fiber glass fabric is made of 430gsm fiber glass fabric laminated with aluminium foil by high temperature adhesive. The basic fabric is woven in satin (3x1 twill) weave. Yarn count is 18/13 per cm. Continuous work temperature of fiber glass fabric is -50 to 550℃. The adhesive of aluminium foil can resist heat below 300degree Celsius continuously.

Aluminized fiberglass cloth is an ideal heat insulation material. It is waterproof, heat reflective, oil resistant, anti chemical corrosion. This reflective insulation material is widely used in industrial fields.





Data Sheet



Material Aluminium Foil Fiberglass Fabric
Weave Satin
Yarn Tex Warp EC9 33 2X2
Weft EC9 33 2X2
Total Weight 430 gsm
Thickness 0.43 mm
Aluminium Foil Thick 7micron/18micron/25micron

Tensile

Strength

 Warp 6000 N/5cm
Weft 4500 N/5cm
Standard Width 1000mm
Temperature

Fibreglass Cloth: 550℃

Adhersive: 300℃



Features



  1. Heat reflective
  2. Silver Foil Insulation
  3. Waterproof
  4. Chemical&Oil Resistant
  5. Electrical Insulation
  6. Recycled insulation



Application



  • Sparks protection
  • Kiln heat insulation
  • Petroleum refineries
  • Energy efficient insulation
  • Extreme heat insulation

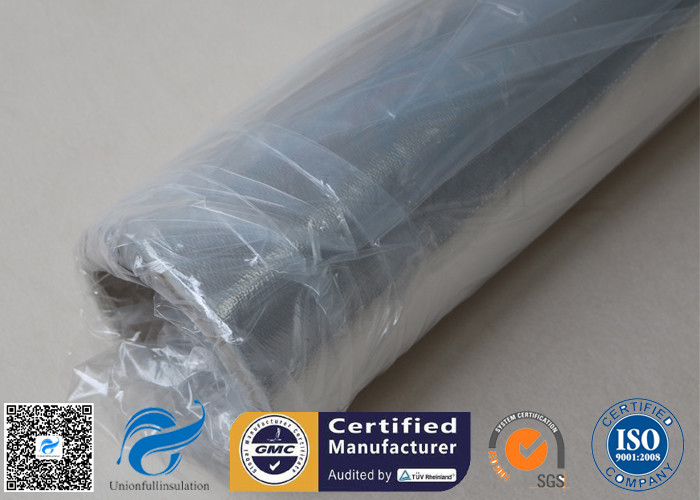

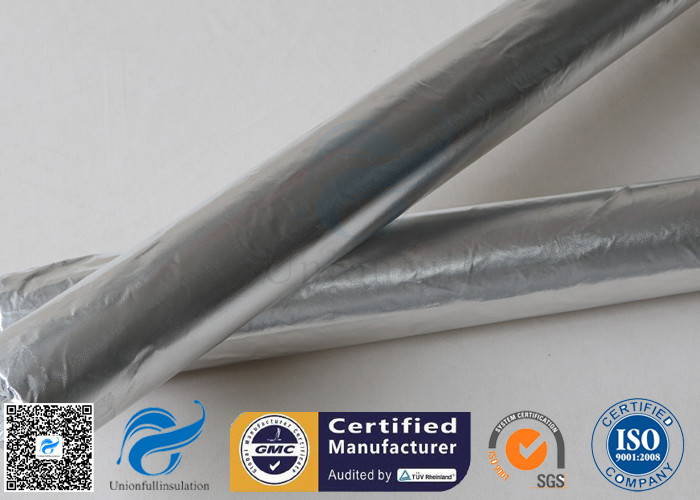

Packing Images





Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective 0Silver Coated Aluminium Foil Fiberglass Fabric 3732 0.43MM 430G Heat Reflective 1
