960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth

960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth
960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UNP8660SG-D150-100
Minimum Order Quantity: 100 meters
Price: $4.4 - 5.9 / Square Meter
Packaging Details: 50 meters one roll in carton
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 52,000 square meter one day
Get Best Price Contact Now
Base: 660gsm Fiberglass Cloth Weave: Satin
Area Weight: 960g/m2 Coating: Silicone, 300gsm
Width: 100cm Temperature: 260℃
Highlight:

silicone coated glass cloth

,

silicone coated fiberglass cloth

960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth


28oz/sq.yd grey silicone coated fibre glass fabric is made of basic cloth 660gsm 8H satin e-glass fiberglass fabric. It is coated with 300g/m2 grey silicone coating on two sides, 150gsm per side. 28oz (960gsm) silicon coated fiberglass cloth is heavy duty, durable but flexible and easy to fabricate. Standard width of coated fabric is 100cm and length is 50 meters one roll.


Silicone coating provides the electrical insulated and abrasion resistant of basic fiberglass fabric. This coating is able to withstand heat below 260℃ and fiberglass cloth can resist 550 degree centigrade continuously. This high temperature cloth is used in many industrial thermal insulation fields.



Specification:

Item Silicone Coated Fiberglass Fabric
Yarn E-glass
Weaving 8H Satin
Thread Count 8 / 6 per cm
Weight 960g/m2, 28oz/sq.yd
Thickness 0.65mm
Width 1 meter
Work Temperature

Fiberglass Cloth ≤ 550℃
Silicone ≤ 260℃


Features


  • High strength, tear resistant
  • Flexible, easy to fabricate
  • Electrical insulation
  • Low smoke emission
  • Non-hazardous, no toxic
  • No melting or dripping
  • No thermal shrinkage, stable dimension
  • Good smoke prevention
  • Large surface friction and abrasion resistance


Application


  1. Fire resistant blanket&curtain
  2. Welding sparks protection
  3. Fabric expansion joint
  4. Engine, auto heat insulation
  5. Electric insulation cover
  6. Exhaust heat shield


Pictures:

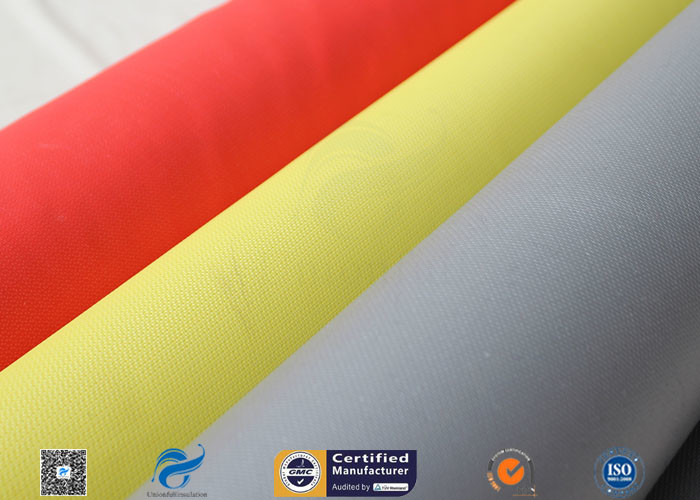

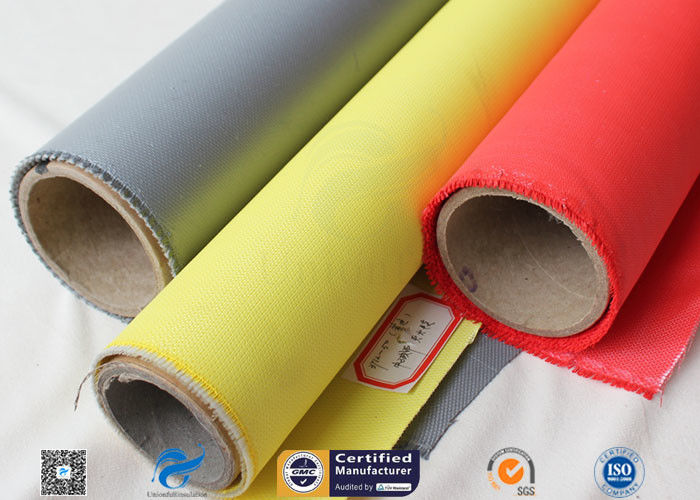

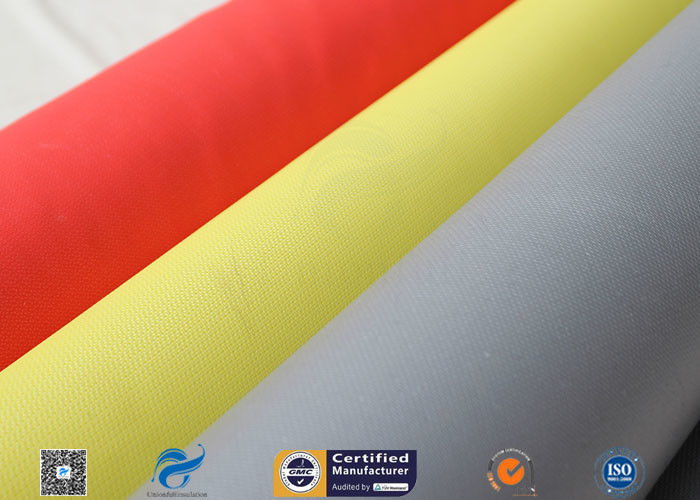

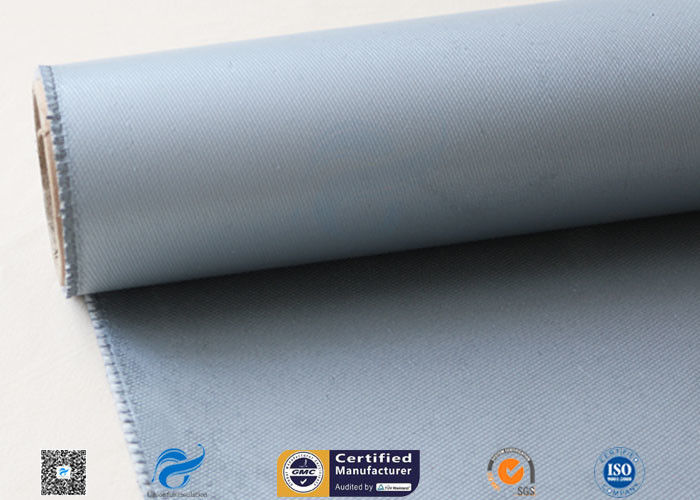

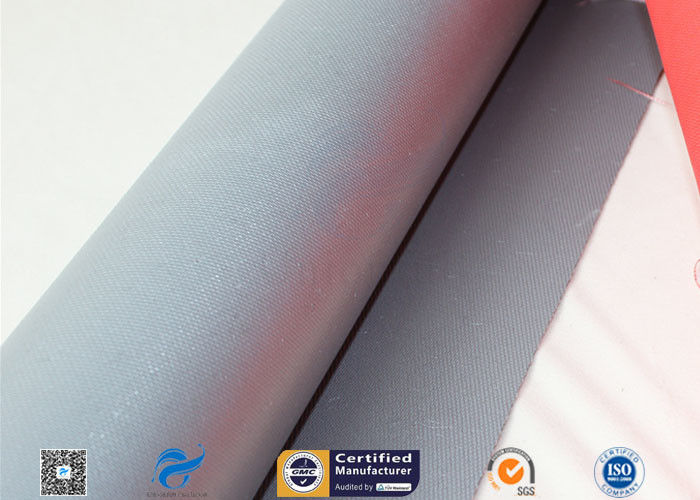

960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 0960GSM Silicone Coated Fiberglass Fabric Grey 0.65MM Heat Insulating Cloth 1




Tag:

silicone coated fiberglass cloth,

silicone coated glass cloth,

silicone coated glass fabric
