Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation

Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732
Minimum Order Quantity: 100 meters
Price: $2.3--$3.85/m2
Packaging Details: One roll in poly bag, then fiberglass fabric packing
Delivery Time: 2 weeks after payment received
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Get Best Price Contact Now
Basic: Fiber Glass Fabric Area Weight: 430g/m2
Weave: 3x1 Twill Thread Count: 18/13 Per Cm
Roll Length: 50 Meters Work Temperature: Fiber Glass ＜ 550℃
Highlight:

silver plated fabric

,

silver carbon fiber

Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation



Aluminium foil composite fiberglass fabric is made from basic 100% woven fiber glass fabric laminated with a layer of aluminium foil by a high temperature adhesive. For this 430gsm silver coated fabric, base is 430gsm 3x1 twill weave fiberglass cloth. Its yarn count is 18/13 per cm. This fiber glass cloth is able to withstand continuous heat below 550℃. The high temperature adhesive can be used below 300℃.

Aluminized fiberglass cloth provides superior performance in a wide range of temperatures. Also, it is oil resistant, waterproof, chemical resistant and heat reflective. This high temperature resistant woven cloth is used for pipe insulation and heat protective layer of glass wool.


  • Thickness of alu. foil: 7um, 18um, 25um, 50um(max)
  • Width: 101.6cm/121.9cm/152.4cm
  • Roll Length: 50-100m, as customers' required.



Data Sheet



Material Aluminium Foil Fiberglass Fabric
Weave 3x1 Twill
Yarn Tex Warp EC9 33 2X2
Weft EC9 33 2X2
Total Weight 430 g/m2
Thickness 0.43 mm
Aluminium Foil Thick 7micron/18micron/25micron

Tensile

Strength

 Warp 6000 N/5cm
Weft 4500 N/5cm
Width 100cm
Work Temperature

Fibre Glass Cloth: 550℃

Adhersive: 300℃



Features



  1. Heat Reflective
  2. Noninflammable
  3. Waterproof
  4. Tear resistant
  5. Anti Corrosion
  6. Low Moisture Absorption
  7. Electrical Insulation
  8. Non-hazardous, non toxic



Application



  • Spark welding protection
  • Protection from weather elements
  • Kiln heat insulation
  • Gas pipe anticorrosion
  • Covering for removable insulations
  • Automotive Engine
  • Petroleum Refineries
  • Maritime
  • Fire blanket, heat insulation curtain

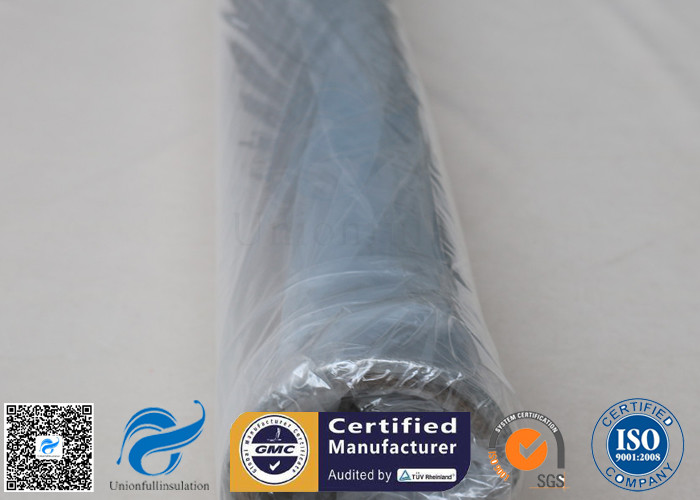

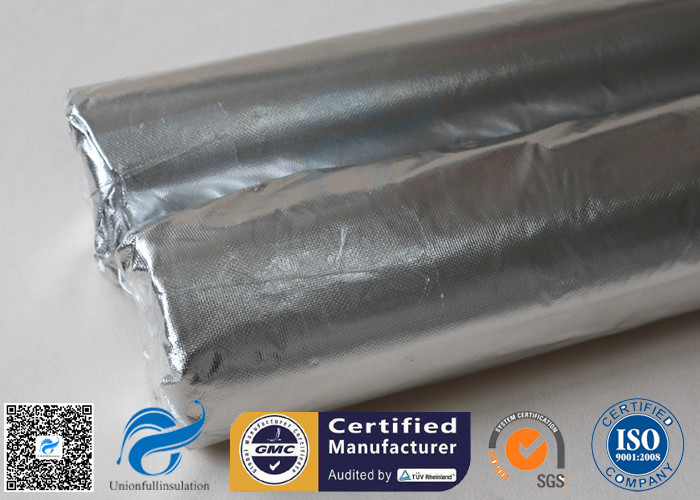

Packing Images







Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation 0
