Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket

China Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket supplier
Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket supplier Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket supplier Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket supplier Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket supplier

Large Image :  Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UNP8IJG-A-25

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: $20--$45 one piece
Packaging Details: 10pcs in woven bag
Delivery Time: 3 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3,000 PCS Per Day
Contact Now
Detailed Product Description
Materials: Fiberglass For: Actuator, Valve, Pipe
Thickness: 25mm Open: Fire Retardant Velcro
Size: Customized Work Temperature: Below 260℃

Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket


Removable thermal insulation blanket jacket is made of fiberglass fabric and needlemat to eliminate heat loss of strainer, filters, valves, pipe, turbine, etc. Compared with sheetmetal, fiber glass cloth is more flexible and easy to fabricate. Due to its quick removal and re-application, exhaust insulation wrap is mainly used in heat-exchanger rooms, manufacturing plants application, boiler rooms, etc. Jacket can be open with fire retardant velcro and buckles so this removable insulation jacket is applied to cover the equipment.



Structure of jacket is a sandwich design. Between two layers of single side grey silicone coated fiberglass fabric is e-glass fiberglass needle mat. It is ideal fire resistant and eco-friendly material. Fiber glass needlemat can be recycled. This jacket is light weight but high strength, durable, chemical resistant and electrical insulated.



With this 25mm jacket, high temp air, gas, oil or hot liquid in the object won't makes the surface too hot. Also it can protect the inside object from heat and cold damage. Workers won't feel itchy or too hot when they install and remove the cover.




Data Sheet



Item Name Removable Insulation Mattress
Fit Actuator
Weight 3KG
Thickness 25mm
Size Customized
Outside Materials Name Silicone Coated Fiberglass Cloth
Work Temperature Fiberglass Cloth: 550℃
Silicone Coating:260℃
Inside Materials Name Fiberglass Needle Mat
Work Temperature 800℃ Continuously


IR Test


IR Test result of this removable insulation cover showed that when the temperature inside of the equipment goes up to 300℃, the surface of jacket is below 32℃.

Features



  • Removable, install and remove easily
  • Heat resistant
  • Low heat loss
  • Surface temperature will be below 40℃ continuously
  • Smooth surface, no itchy
  • Chemical resistant and oil resistant
  • Easy to clean, washable

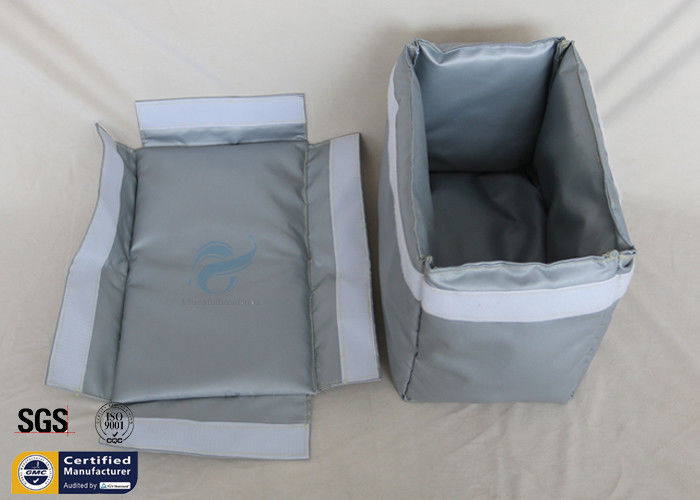

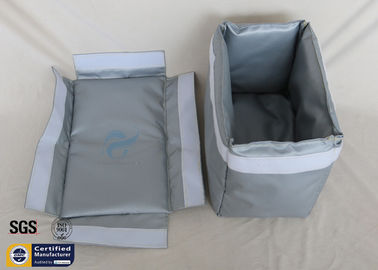

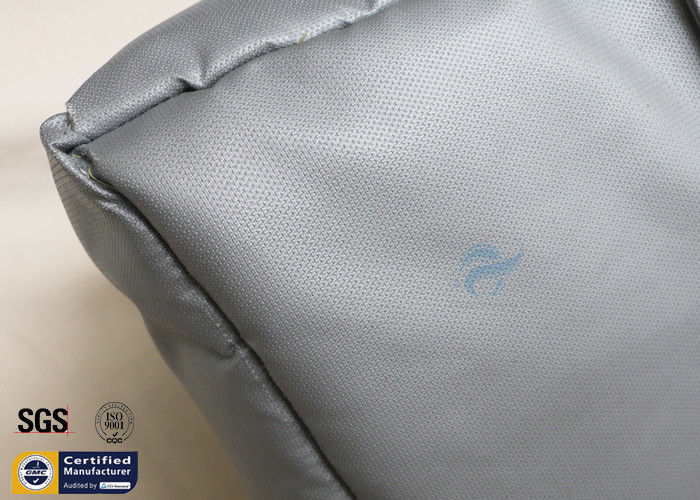

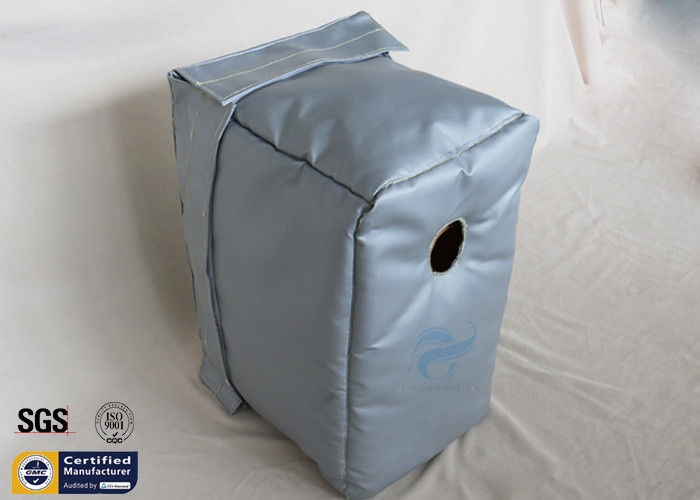

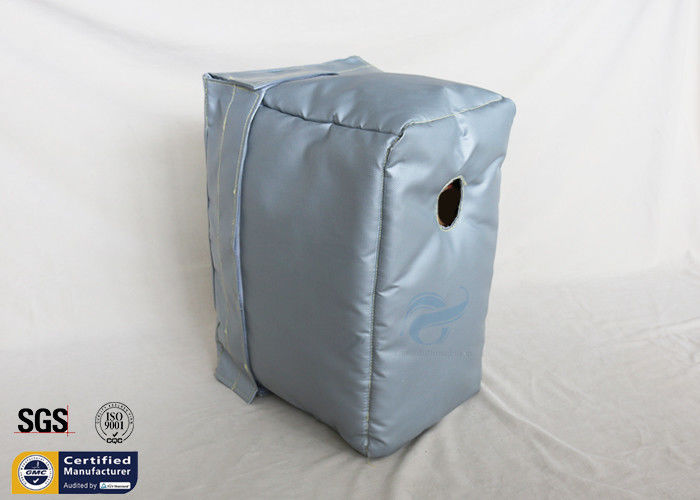

Images Of Insulation Blanket



Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket



Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket
