Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection

China Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection supplier
Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection supplier Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection supplier Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection supplier Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection supplier

Large Image :  Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8732D150

Payment & Shipping Terms:

Minimum Order Quantity: 100 Meters
Price: $3.6 - 4.9 / Square Meter
Packaging Details: 50 meters one roll, 20 rolls one pallet
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 45,000 m2 per day
Contact Now
Detailed Product Description
Base: Fiber Glass Cloth Weave: Satin
Area Weight: 580g/m2 Coating: Silicone 150gsm
Color: Red Length: 50m One Roll

Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection​​


Basic cloth of this silicone coated fabric is 430gsm e-glass high temperature fiber glass cloth woven in 4H satin (break twill).  With 150gsm red color silicone on two sides, the finish fabric is weighed at 580g/m2 (17oz). Thickness is 0.43mm and one standard roll is 1000mm wide and 50 meters long. This silicone coated glass cloth is resistant to moisture, sunlight, mineral lubricating oils, chemical acids, mild alkali etc. Also this fabric has properties like high abrasion resistance and flexibility, which makes it s common used material for fire welding blanket fabrication.



Silicone coating provides better electrical insulation and waterproofing. Base fiber glass fabric can withstand continuous heat 550℃. Silicone coating can resist heat below 260℃. Silicone coated fiberglass fabrics are mainly used for electric welding cover, removable insulation jackets, mattress and pad, fire blanket&curtain, smoke screen, pipe anti corrosion, engine exhaust cover etc.



Specification:

Item Silicone Coated Fiberglass Fabric
Material Fiber Glass Cloth
Coating Silicone, two sides
Weave 4H Satin
Thread Count (Ends/CM) 20/11
Total Weight 580g/m2
Thickness 0.45mm
Width 1000mm
One Roll 50 meters
Servise Temperature

Silicone coating below 260℃

Fiberglas cloth below 550℃


Features:



  • -50 to 260℃ heat resistant
  • Electrical insulation
  • Anti chemical agents
  • Corrosion resistant
  • Non flammable insulation
  • Environmentally friendly


Application:



  1. Fire welding blanket
  2. High temp welding blankets
  3. Smoke screen
  4. Building insulation materials
  5. Aerospace and other industrIes application



Pictures:

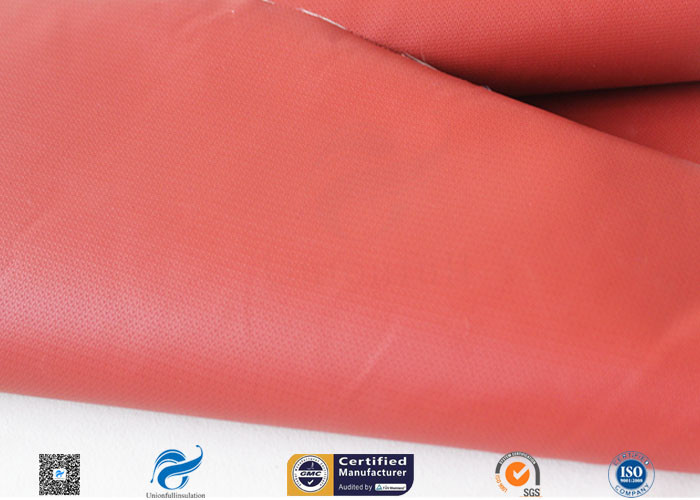

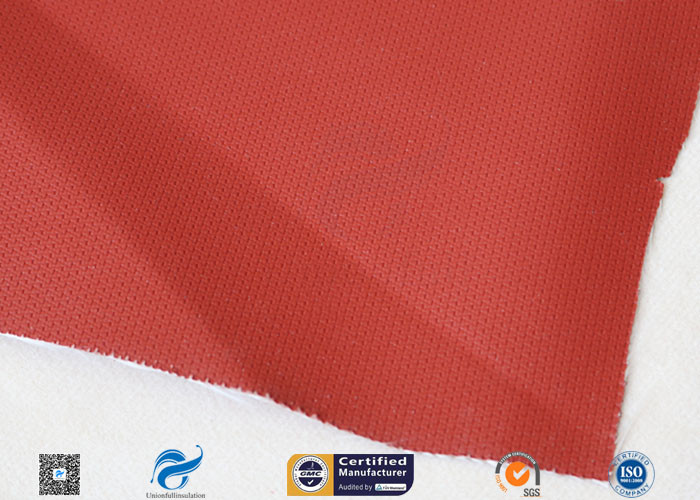

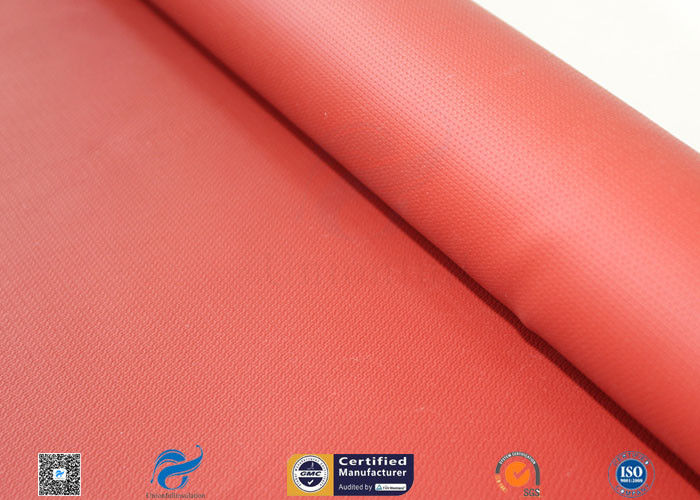

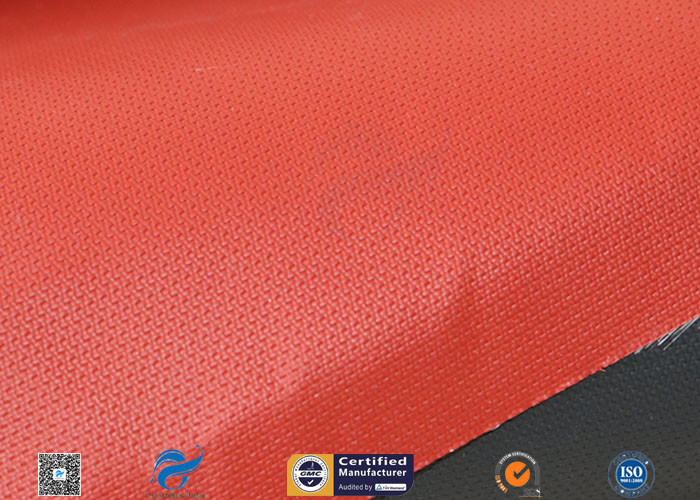

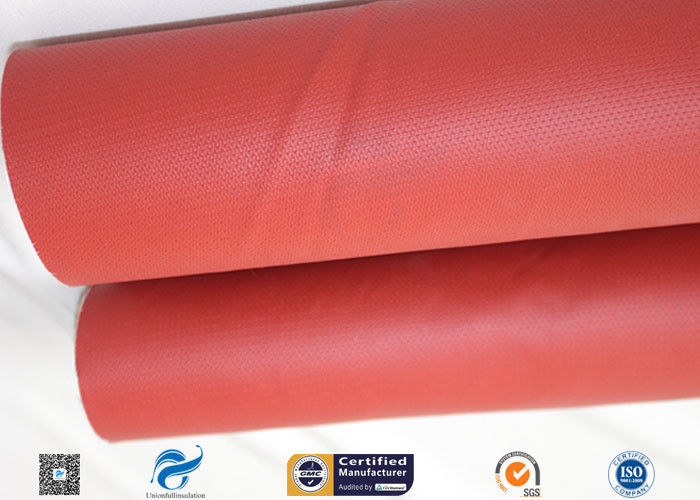

Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash ProtectionRed Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection
