Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant

Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant
Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant
Basic Information
Place of Origin: China
Brand Name: Unionfull Insulation
Certification: ISO9001:2008,SGS
Model Number: UPSE-8784D200
Minimum Order Quantity: 100 meters
Price: $4.4 - 5.9 / Square Meter
Packaging Details: 50 meters one roll in poly bag, 20 rolls one pallet
Delivery Time: 15 days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50,000 square meter one day
Get Best Price Contact Now
Yarn: E-glass Weave: Satin
Weight: 1010GSM Coating: Silicon 100/100
Width: 1000mm Temperature: Fiberglass＜550℃
Highlight:

silicone coated glass cloth

,

silicone coated fiberglass cloth

Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant


1050g/m2 (30.9oz/sq yd) grey silicon coated fiber glass fabric is basic fabric - 850gsm e-glass fiber glass fabric woven in satin weave coated with grey silicone coating on two sides. This 0.85mm silicone fiberglass cloth is a heavy duty great fire resistant material. With 100gsm coating per side, the total area weight is 1050gsm. Standard width is 100CM.



Silicone coating is a high temp compound with electrical insulation and abrasion resistance. It makes the fiberglass fabric with improved properties to meet different application. This textile is used in wide fields. Basic fiber glass fabric is able to withstand heat below 550℃ continuously and silicone coating can resist heat from -50 to 260 degree centigrade. Its final applications includes fire blanket, welding cover, engine/automative heat insulation, flexible jointsand fabric ductwork connector.



Specification:

Item Silicone Coated Fiberglass Fabric
Yarn Type E-glass
Weave Satin
Thread Count 8/6
Weight 1050g/m2
Thickness 0.85mm
Width 1000mm
Temperature

Fiberglass Cloth ≤ 550℃

Silicone ≤ 260℃


Properties:

  • Tear resistant, abrasion resistance
  • Heat insulation
  • Noninflammable
  • Acid alkali resistant
  • Abrasion resistant, durable
  • Electrical insulation


Application:

  1. Industrial fire blanket
  2. Thermocouple insulation
  3. Heat insulation part
  4. Fabric expansion joint
  5. Railway engine heat resistant
  6. Thermal insulation pad cover
  7. Building materials
  8. Smoke fire curtains



Pictures:

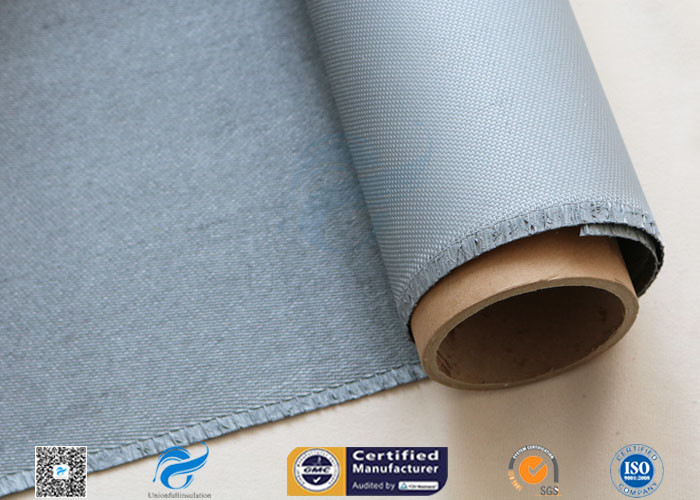

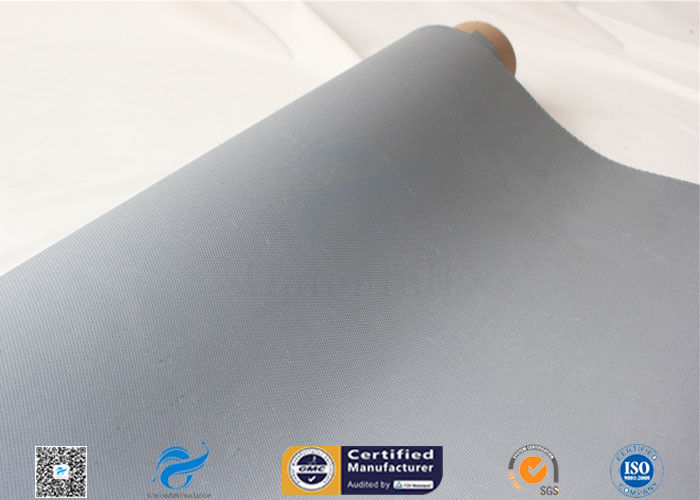

Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant 0

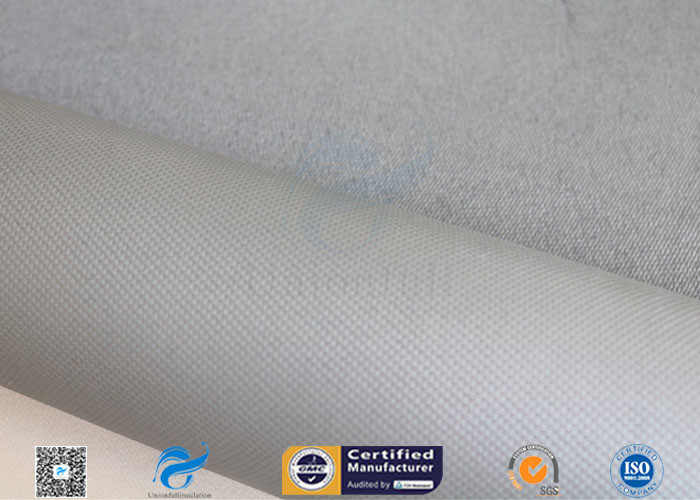

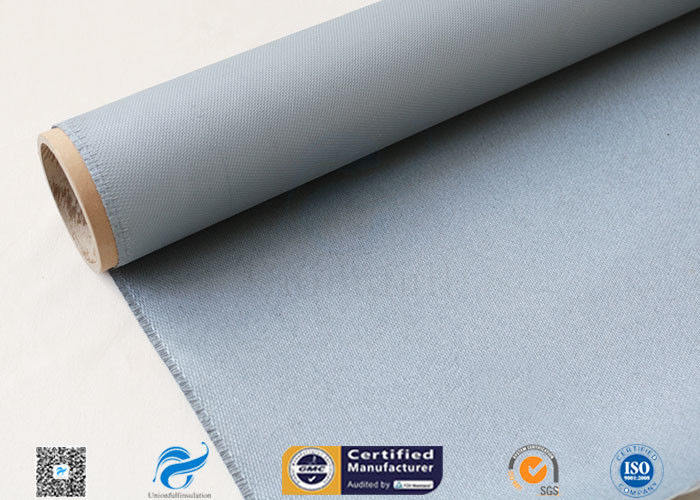

Grey Silicone Coated Fiberglass Fabric 0.85MM Satin Weave Abrasion Resistant 1
