Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM

China Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM supplier
Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM supplier Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM supplier Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM supplier Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM supplier

Large Image :  Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430TIJ-25

Payment & Shipping Terms:

Minimum Order Quantity: 30pcs
Price: $20--$45 one piece
Packaging Details: 10pcs in woven bag
Delivery Time: 3 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000 PCS Per Day
Contact Now
Detailed Product Description
Materials: Fiberglass Fabric, Fiberglass Needlemat Thickness: 25mm
Inner Size: 23x25x41cm, Customized Weight: 3kgs
Heat Protection: -50 To 260℃ Open With: Fire Retardant Velcro


Fire Retardant Grey Thermal Insulation Covers , High Temp Insulation Blanket Pads 800℃ 25MM
The removable heat insulation pad is designed to eliminate heat loss of armatures, filters, valves, pipeline and other industrial equipments. Instead of standard sheetmetal, this material is more flexible and easy to fabricate. Because of the advantages of quick removal and re-application, it is mainly used for combined heat and power, in heat-exchanger rooms, manufacturing plants application, boiler rooms, etc. Removable insulation blanket is applied to the equipment and it shall be opened around the object it covers. So we design to open it with fire retardant velcro and buckles.

Its structure looks like a sandwich style. Outside material of heat insulation cover is glass fiber cloth with single side grey silicone. Inside material is e-glass fiber glass needlemat. Fiberglass material is great fire resistant and eco-friendly. Especially, fiber glass needlemat can be recycled. It will be cut into fibers again and be punched by needles to form a blanket. These fiber glass materials are electrical insulated, chemical corrosion resistant and abrasion resistant.

With this 25mm heat protection blanket jacket, high temp air, gas, oil or hot liquid in the object won't makes the surface too hot to touch. And this cover will be a  protection of the equipment object from heat and cold damage. Workers could feel hurt or too hot when they touch the jacker surface. You will install and remove this cover easily to fix the inside equipments.
Ourside fibre glass cloth can withstand heat from -50 to 550℃. E-glass needlemat can be used below 800℃. Please don't contect flame directly because the hook and loop is fie retardant only, not fireproof.
Data Sheet


Item NameRemovable Heat Insulation Jacket
FitActuator
Weight3KG
Thickness25mm
Inner Size23x25x41cm, customized
Outside MaterialsNameSilicone Coated Fiberglass Cloth
TemperatureFiberglass Cloth: 550℃
Silicone Coating:260℃
Inside MaterialsNameFiberglass Needle Mat
Temperature800℃ Continuously


IR Test
IR Test result of this jacket cover showed that when the temperature inside of the equipment goes up to 300℃, the surface of jacket is at 32℃ continuously.
Features



  • Removable, easy to install
  • Easy to insulate armatures, equipment, piping and bends
  • Heat protection, industrial fibre glass fabric
  • Surface touch temperature will be below 40℃ continuously
  • Decrease heat loss a lot, lower your energy bill
  • Protect workers from heat damage
  • Designed for re-application
  • Washable
  • Chemical resistant and oil resistant  surface

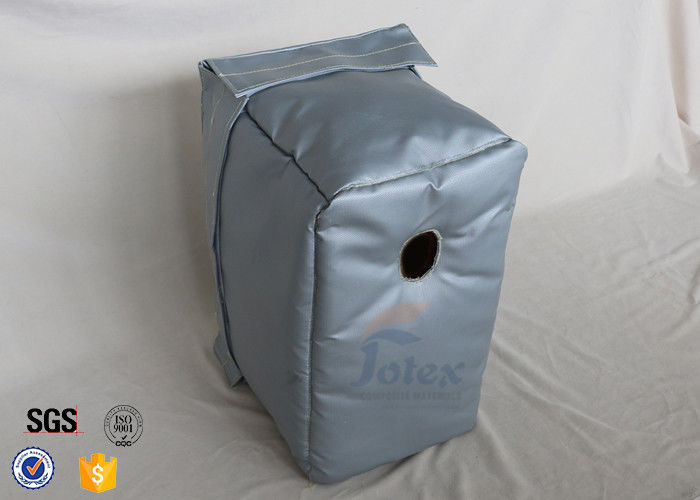

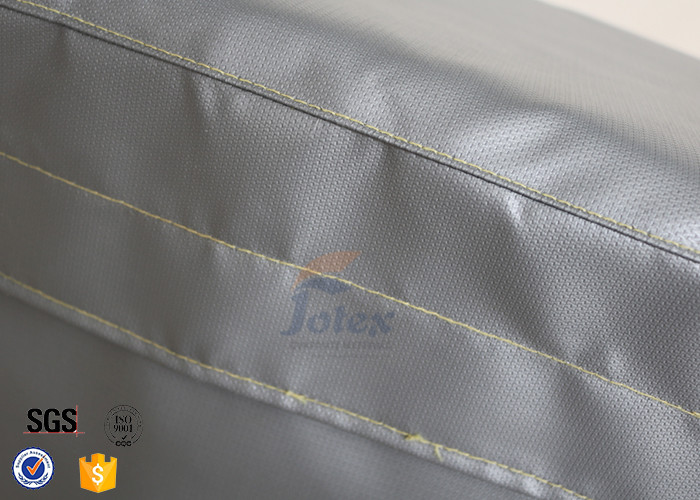

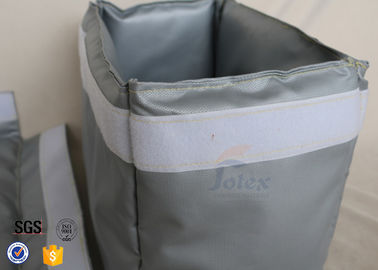

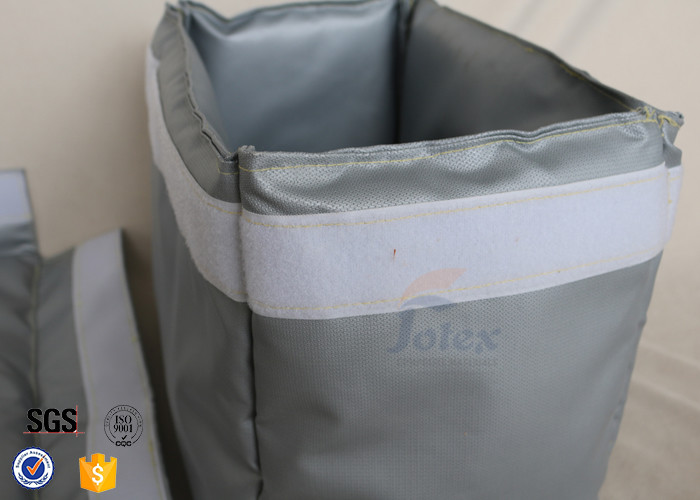

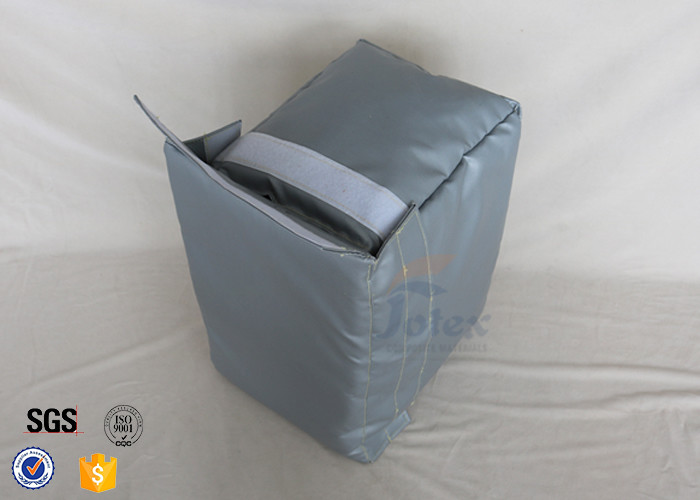

Images Of Insulation Blanket
