Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth

China Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth supplier
Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth supplier Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth supplier Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth supplier Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth supplier

Large Image :  Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430AS-43-100

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: $3--$4.5 / m2
Packaging Details: One roll 50 meters
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000 Square Meters Per Day
Contact Now
Detailed Product Description
Material: Fiberglass Coating: Foiled, Silicone
Color: Silver+grey Weave: 3x1 Twill
Foil Thickness: 7, 8, 25micron Width: 40", 48", 60"

Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth



High temp heat resistant one side silicone rubber one side aluminum foil fiber glass fabric could reflect radiant heat and also minimizes absorption of fluids and contamination. Fiberglass fabric is a eco-friendly material. Filaments diameter here is mainly 9micron, which fibers are large and won't be breathe into lungs. It is used for various heat shields and thermal insulation guards.


Heat reflective side of this silver coated fabric is available in aluminum foil or aluminum film. Aluminum foil fabric should be used for static applications. Aluminum film fiberglass cloth could be selected for applications involving movement, for example, bellows construction usages. Fiberglass  fabric protect from continuous radiant heat up to 1022°F. Also, it can reflect more than 95% of the radiant heat that contacts its foiled surface.



This 0.43mm silver coated fiber glass fabric is made of basic cloth woven in 3x1 twill weave. It is weighed at 430g/m2 and yarn count is 18/13 per cm. The alu-foil is laminated on the fiberglass cloth by high temperature adhesive. Another side is coated with grey silicone rubber. Total weight of this two side coated fabric is 430g/m2 and thickness is 0.43mm.

Fiberglass cloth is able to be used at temperature from -50 to 550℃ continuously. And the adhesive for alu-foil could be used below 300℃. For another side silicone coating could withstand heat below 260 degree Celsius.

One side aluminium foil one side silicone coating fibreglass woven fabric is very durable, fire resistant, anti chemical agents, electrical insulation and waterproof to some extent. This glass fibre insulation fabric is widely used for industrial heat insulation and heat reflective application.



Data Sheet



Material Aluminium Foil / Silicone Fiberglass Fabric
Weaving 3x1 Twill
Yarn Type E37 1/0 0.7Z/ E37 1/0 0.7Z
Thread Count 18/13 per cm
Weight 430g/m2
Thickness 0.43mm
Thickness Of Aluminium Foil 7micron/18micron/25micron, 50U max

Tensile

Strength

Warp 6000 N/5cm 666 lbs/inch
Weft 4500 N/5cm 500 lbs/inch
Standard Width 40", 48", 60"
Service Temperature

Fibreglass: 550℃

Adhersive, Silicone coating: 260℃





Potential Applications



  1. Foil backed insulation
  2. Heat insulation material
  3. Hot work protection wear
  4. Protection from weather, aging
  5. Gas, liquid impermeability coverings
  6. Surface cover for removable insulation
  7. Fabricated curtains or blankets
  8. Automotive engine heat containment
  9. Vertical spark protection
  10. In the construction of bellows for protection of hydraulic cylinders.


Extensively used in the following Industries



  • Construction
  • Chemical Processing
  • Petroleum Refineries
  • Automotive Industry
  • Maritime



Pictures

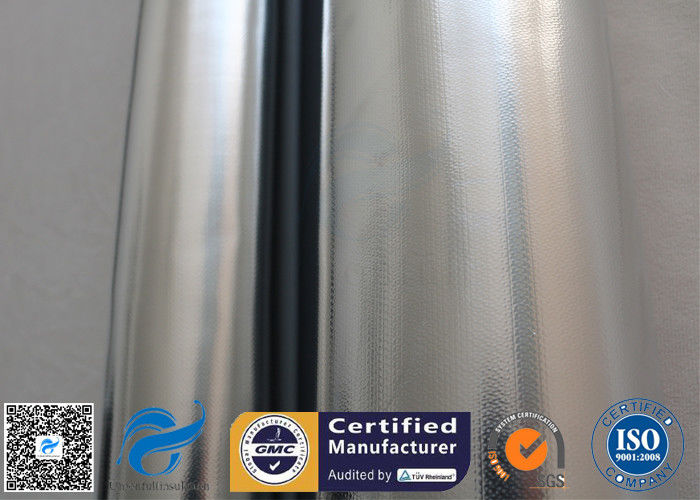

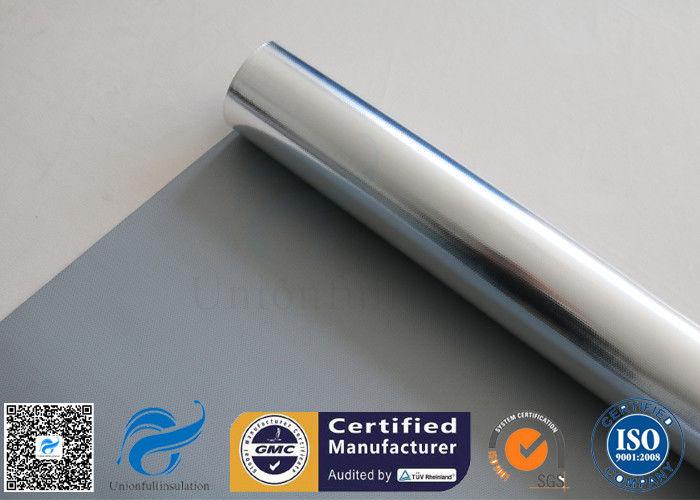

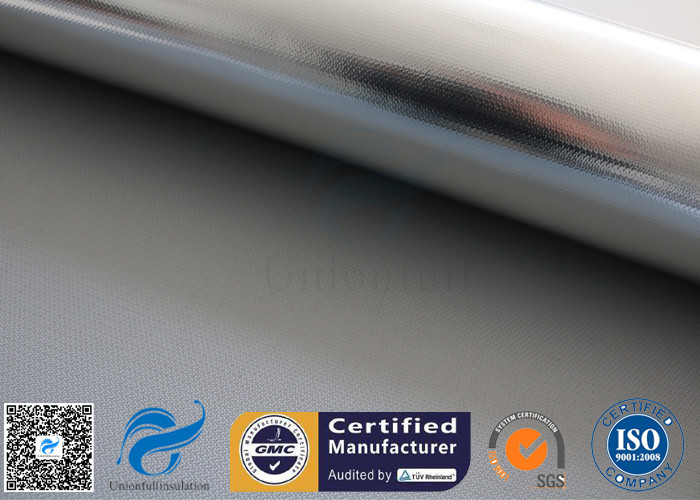

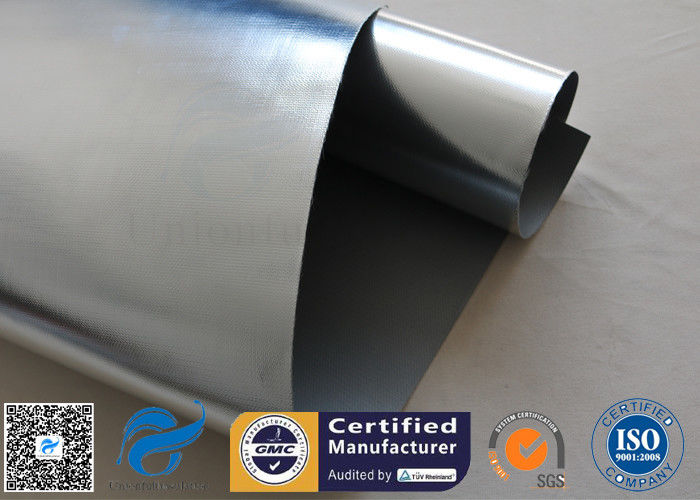

Silver Coated Fiberglass Fabric Heat Resistant Aluminium Foil Insulation Cloth
