1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints

1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints
1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints 1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints 1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints 1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints

Large Image :  1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8786D250

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $5 - 8 / square meter
Packaging Details: 50 meters one roll
Delivery Time: 3 weeks after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000m2 one day
Detailed Product Description
Material: Glass Fiber Weave Type: Satin
Weight: 44oz/yd2 Coating: Silicone, 250g/m2
Color: Gray Temperature: Glass Cloth 550℃
High Light:

silicone coated glass cloth

,

silicone coated fiberglass cloth

1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints


Fiberglass fabric is made of continuous filament e-glass fibers. It is woven in satin weave (also called cross twill or break twill). This heat resistant fiber glass is able to withstand heat below 550℃. Silicone coated fiber glass fabric is a basic fibre glass cloth impregnated with high-temp treatment - grey color silicone compound on both sides. Silicone coating can be used from -50 to 260℃ heat continuously. Fibre glass cloth is a great heat insulation material with other features such as high strength, lightweight (compared with same strength material), chemical acid alkali resistant. Silicone rubber coating makes it a cloth with better electrical insulation and chemical resistance.



Fiberglass cloth is weighed at 1350g/m2. Silicone Coating is 125 g/m2 per side. Total weight is 1600g/m2. Width can be 1000mm, 1270mm and 1550mm. Glass fiber fabric is a dimension stable textile. With high temperature resistance, its thermal shrinkage is low. Accordingly, it is used widely for industrial application. Main application includes fabric expansion joints, non-metallic compensator, insulation mattresses, etc.





Specification

Cloth Silicone Fiberglass Fabric
Style E-glass
Weave Satin
Count 18/13
Coating Silicone, 125/125
Total Weight 1600g/m2, 47oz/yd2
Thickness 1.2mm
Standard Width 1000mm, 1270mm
Temperature

Silicone Coating below 260℃

Fiberglass below 550℃


Properties

  • Noninflammable
  • Corrosion resistance
  • Anti aging, UV
  • Heavy duty
  • Tear resistant
  • Electrical insulation


Application

  1. Fire insulation material
  2. High temp fiberglass
  3. Engine heat insulation
  4. Pipe insulation
  5. Engine exhaust covers
  6. Fabric expansion joint
  7. Electrical insulation cover
  8. Environmentally friendly insulation

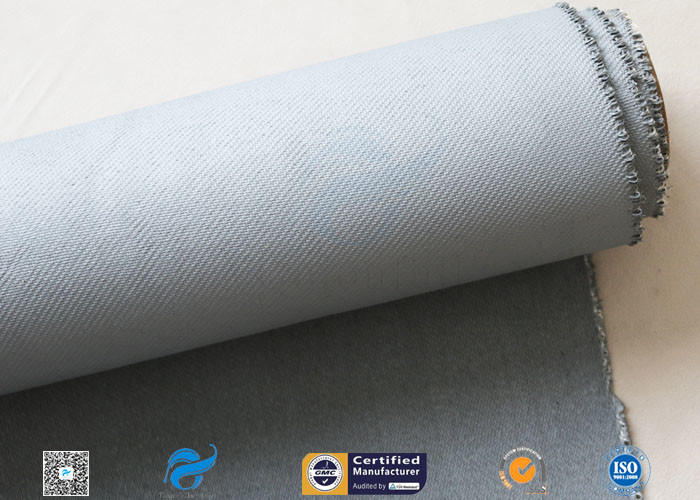

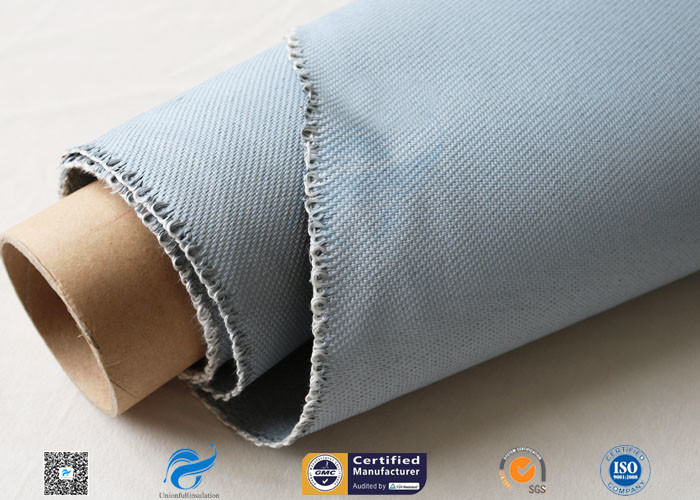

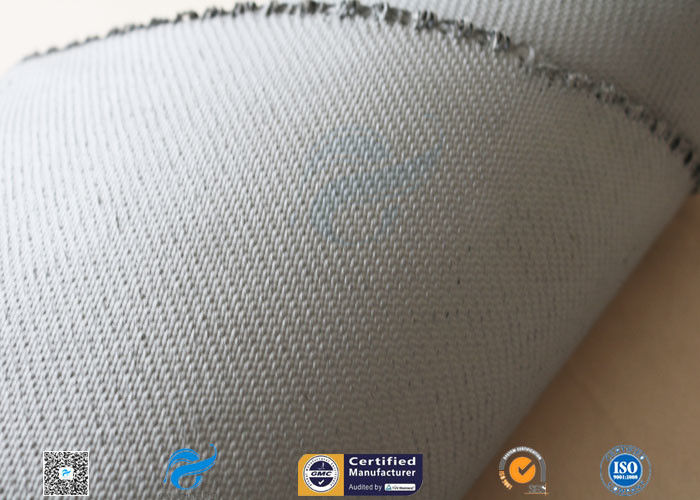

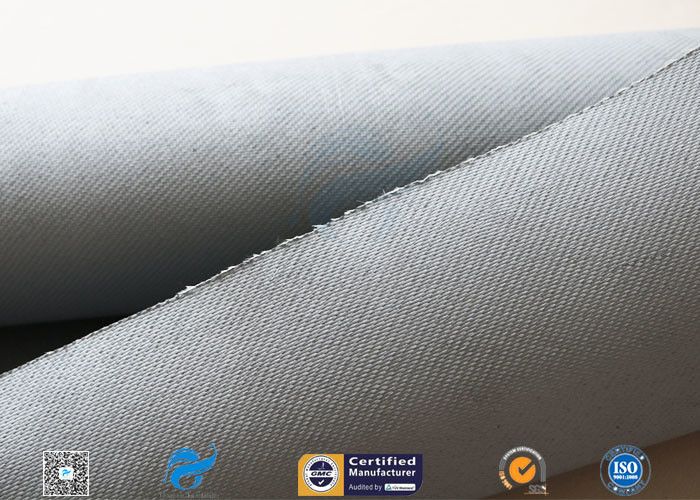

Pictures



1600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints 01600GSM 1.2MM Gray Silicone Coated Fiberglass Fabric For Flexible Joints 1
