Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm

Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm
Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm
Basic Information
Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8784
Minimum Order Quantity: 500 meters
Price: $3--$5 / square meter
Packaging Details: 50m one roll in woven bag
Delivery Time: 3 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 Square Meters Per Day
Get Best Price Contact Now
Materials: 850g Fiber Glass Weight: 880gsm
Width: 100cm, 127cm Temperature: Fiberglass Cloth 550℃
Thread Count: 8 / 6 Yarn: E-glass
Highlight:

silver plated fabric

,

silver carbon fiber

0.9mm Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation​




Silver coate fabric insulating material aluminium foil laminated fiberglass cloth is made of e-glass 850g/m2 fiber glass fabric, then this basic cloth is laminated with one layer of aluminium foil on fiberglass cloth. The adhesive is a kind of high temperature adhesive.



This cloth is woven in satin weave and very heavy duty. Glass fiber material is fire resistant, chemical resistant and electrical insulation. Thicknesses of aluminium foil are 7u, 18u, 25u and 50u max. Total weight of the coated fabeic is 880g/m2, about 26oz/yd2.



Fiberglass cloth can resist heat which is below 550℃ continuously. And its adhesive should be ued below 300℃. Foiled fiberglass fabric is widely used in industrial fields.



Data Sheet



Material Aluminium Foil Fiberglass Fabric
Weave Satin
Thread Count 18/13 per cm
Total Weight 880g/m2
Thickness 0.9 mm
Aluminium Foil 7micron/ 18micron/ 25micron

Tensile Strength

(N/5cm)

 8000/6000
Width 100cm, 125cm
Temperature

Fiberglass: ≤550℃

Adhersive: ≤300℃



Features



  1. Heat reflective
  2. Non flammable
  3. Waterproof
  4. Chemical resistant
  5. High tensile strength


Application


  • Welding blanket
  • Fiberglass pipe insulation
  • Automotive, car parts
  • Environmentally friendly insulation
  • Electrical insulating materials
  • Insulation blanket



Pictures

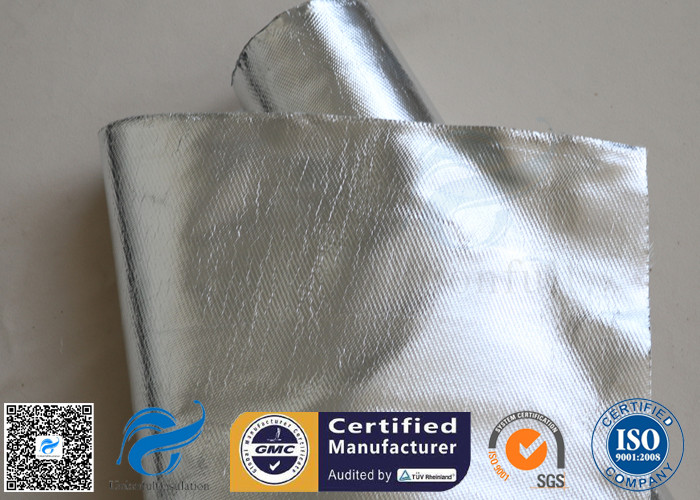

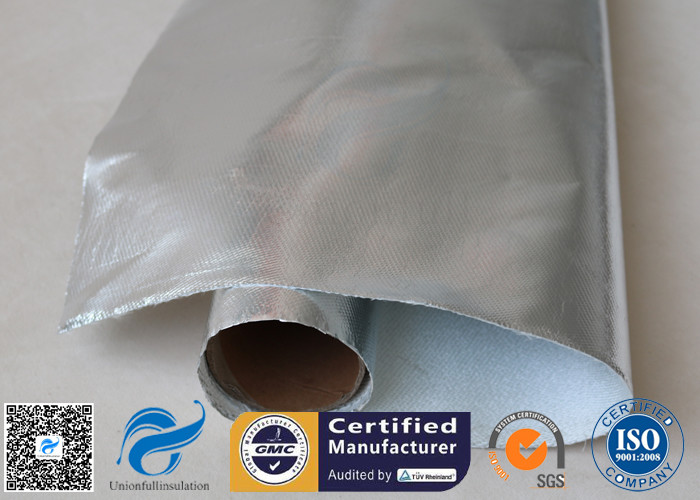

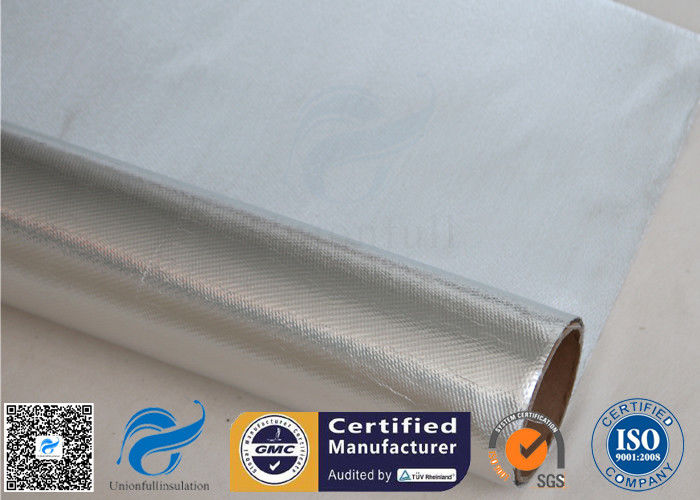

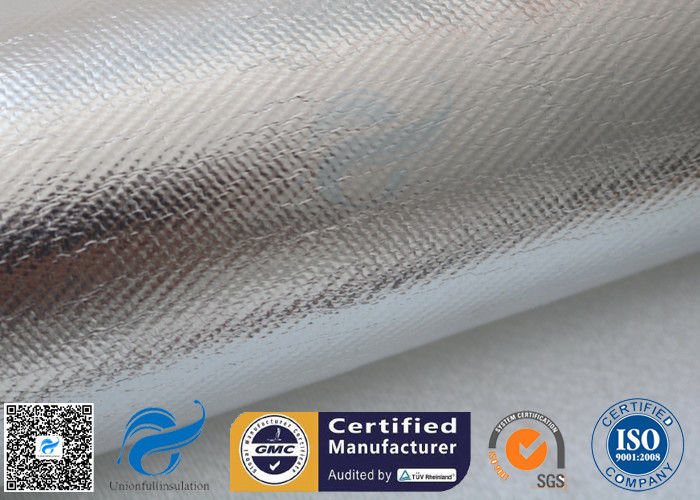

Silver Aluminium Foil Laminated Fiberglass Fabric Pipe Insulation 0.9mm 0
