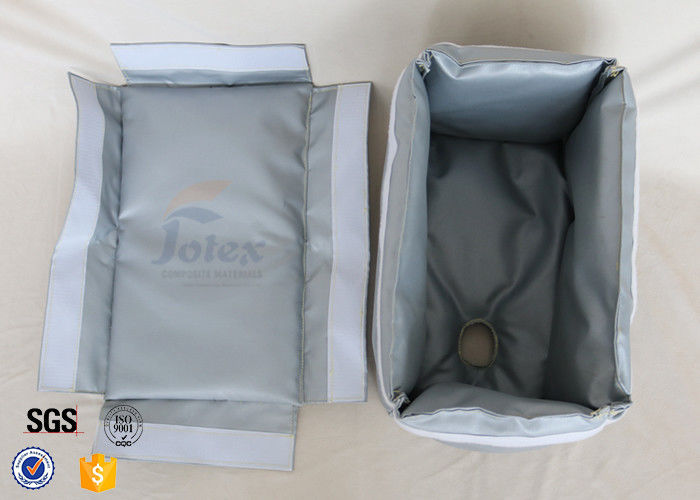

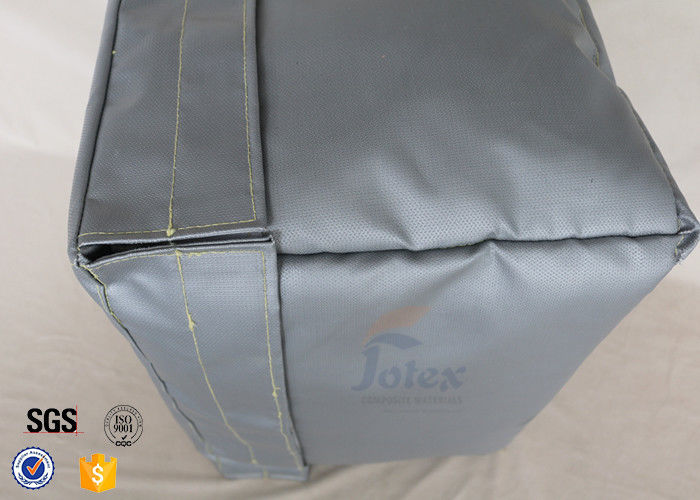

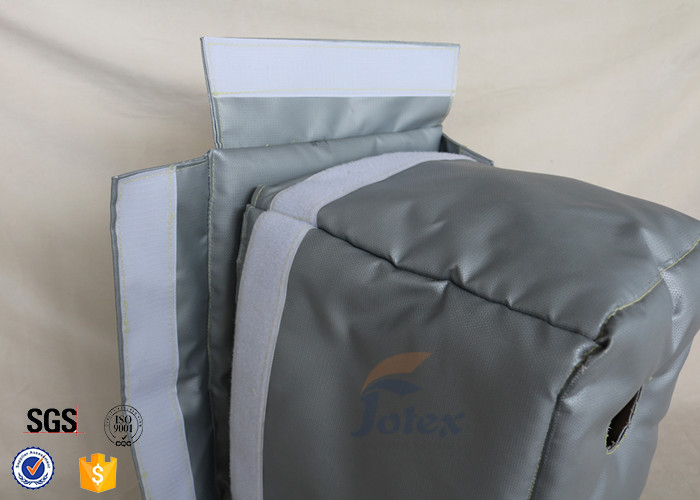

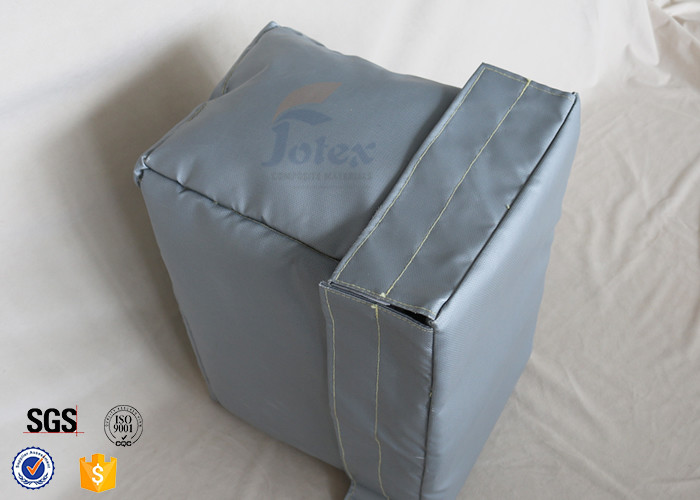

Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover

China Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover supplier
Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover supplier Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover supplier Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover supplier Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover supplier

Large Image :  Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430TIJ-25

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: $20--$45 one piece
Packaging Details: 10pcs in woven bag
Delivery Time: 3 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5,000 PCS Per Day
Contact Now
Detailed Product Description
Materials: Fiberglass Fabric+Needle Mat Open With: Fire Retardant Hook And Loop
Weight: 3kg Thickness: 25mm
Temperature: Inside Materials≤ 800 ℃ Inside Size: 23x25x41cm

Removable Fiberglass Insulation Jacket 300℃ 25MM Heat Resistant Actuator Cover




Thermal insulation jacket is a sandwich design heat resistant shield products. It is mainly used to protect actuator, valve or exchanger from heat and cold damage. With this 25mm insulation exhaust blanket, the high temperature air or liquid in the actuator or valve won't influence the work and repair. The heat resistant jacket isolates the heat, workers can touch its surface without gloves, which makes work easier.



Materials of this insulation jacket is outside layer silicone coated fiberglass cloth and wadding material fiber glass needle mat. It is a sandwich structure. Both surface material and inside material are fire resistant and eco-friendly without pollution. Needle mat can be recycled after using. What's more, they are chemical resistant and electrical insulation. So the thermal insulation jacket is suitable for exchanger, power generator protection.


For its heat insulation, silicone fiberglass cloth is able to withstand 550℃. E-glass needle mat can be used to resist 800℃ heat continuously.



Data Sheet:



Item Name Removable Thermal Insulation Jacket
Fit Actuator
Weight 3KG
Thickness 25mm
Inner Size 23x25x41cm
Outside Materials Name Silicone Coated Fiberglass Cloth

Temperature

Basic Fiberglass Cloth:550℃
Silicone Coating:260℃
Inside Materials Name Fiberglass Needle Mat
Temperature 800℃ Continuously


IR Test For Thermal Insulation


IR Test result of this insulation cover showed that when the inside temperature goes up to 300℃ continuously, the surface of jacket is at 32℃. Workers can touch the surface without gloves.

Features


  1. Save heat loss
  2. Surface temperature will be below 40℃ continuously
  3. Customized design and size
  4. Easy to install and remove
  5. Waterproof
  6. Anti chemical agents
  7. Tear resistant
