Place of Origin: | Zhejiang, China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPEAL-8784 |
Minimum Order Quantity: | 500 meters |
Price: | $3--$5/ square meter |
Packaging Details: | 50m one roll in woven bag |
Delivery Time: | 20 working days after receiving payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 40,000 Square Meters Per Day |
Materials: | 850g Fiberglass | Total Weight: | 880g/m2 |
---|---|---|---|
Thickness: | 0.9mm | Standard Width: | 1000mm, 1270mm |
Count: | 18 / 13 | Temperature: | 550℃ |
High Light: | silver plated fabric,carbon fiber fabric |

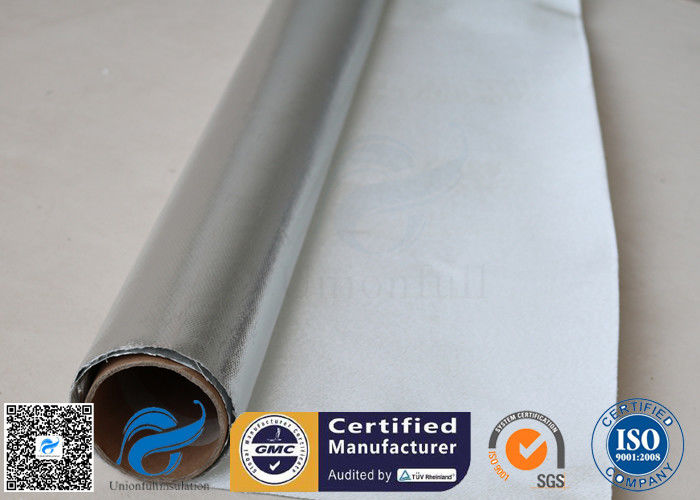

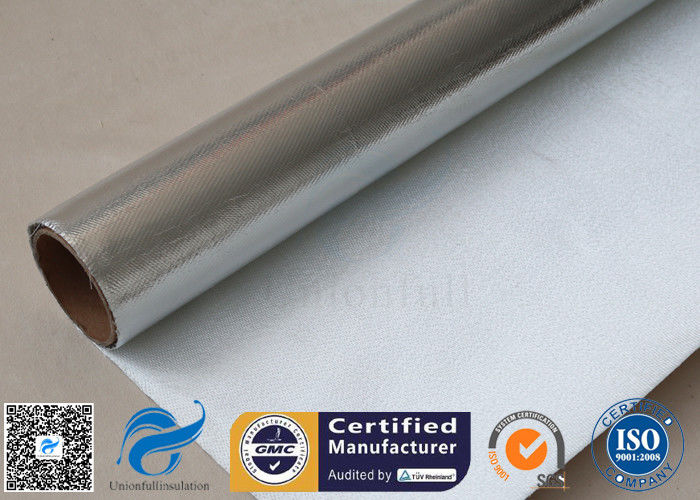

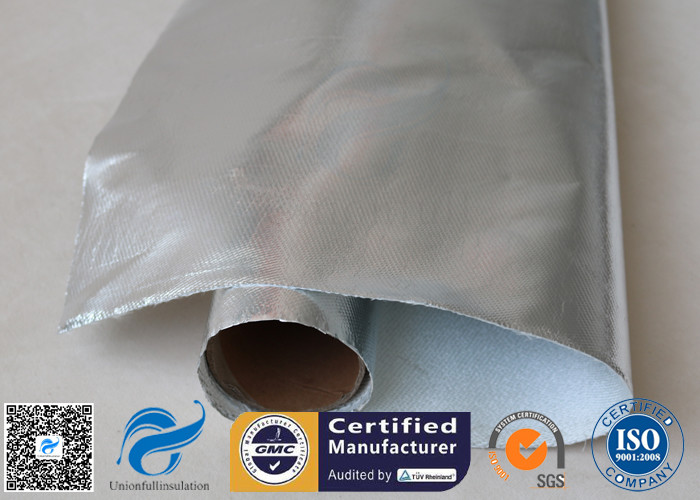

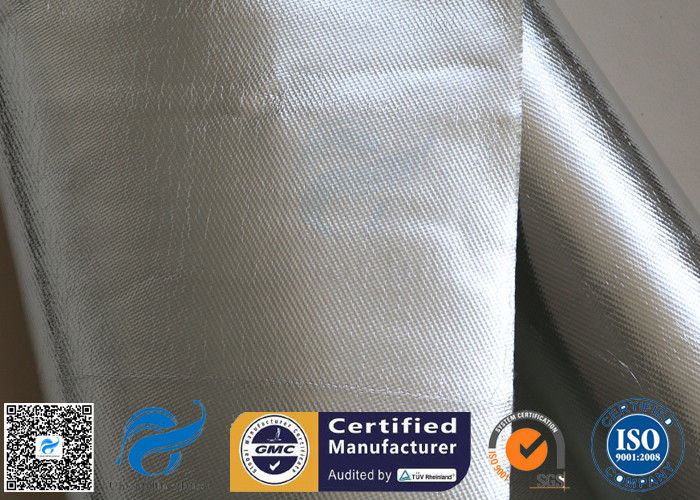

Silver Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric
Basic cloth of this silver aluminium foil fiberglass cloth is 850g/m2 3784 fiberglass fabric. One layer of silver aluminium foil is laminated on the surface by high temperature adhesive. Basic fiberglass cloth is 0.85mm thick and woven in satin. This glass fiber material is flame resistant, chemical agents resistant and abrasion resistant. Aluminium foil can be 7u, 18u, 25u common thickness or 50u max. Total weight is 880g/m2, about 26oz/yd2.
Fiber glass fabric can resist heat below 550℃. And adhesive should be ued below 300℃ continuously. With properties like anti aging, corrosion resistance, heat reflective and waterproof, foiled fiberglass fabric is widely used for industrial thermal insulation, such as energy insulation, fire blanket, duct insulation material, work protective wear, welding shield cover.
Data Sheet
Material | Aluminium Foil Fiberglass Fabric | ||
Weave | Satin | ||
Thread Count | 18/13 per cm | ||
Total Weight | 880g/m2 | ||
Thickness | 0.9 mm | ||
Aluminium Foil | 7micron/ 18micron/ 25micron | ||
Tensile Strength (N/5cm) |
8000/6000 | ||
Width | 100cm, 125cm, 155cm | ||
Temperature |
Fiberglass cloth: ≤550℃ Adhersive: ≤300℃ |
Features
Application
Pictures
