Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric

Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric
Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric
Basic Information
Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8784
Minimum Order Quantity: 500 meters
Price: $3--$5/ square meter
Packaging Details: 50m one roll
Delivery Time: 20 working days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 40,000 Square Meters Per Day
Get Best Price Contact Now
Basic Cloth: 850g Fiberglass Total Weight: 880g/m2
Thickness: 0.9mm Width: 1000mm
Thread Count: 18 / 13 Foil Thickness: 7u, 18u, 25u, 50u Max
Highlight:

silver plated fabric

,

carbon fiber fabric

Silver Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric




Aluminium foil fiberglass fabric is a basic 850g/m2 fiberglass fabric laminated with a silver aluminium foil by high temperature adhesive. Fiberglass cloth is woven in satin weave and 0.85mm thick. It is fire resistant, chemical resistance and high strength. Thicknesses of aluminium foil are 7u, 18u, 25u and 50u max. Total weight is 880g/m2.



Basic fiberglass fabric can withstand heat below 550℃. And adhesive for foil can be ued below 300℃ continuously. With properties anti UV, corrosion, heat reflective and waterproof, this foiled fiberglass fabric is widely used for industrial thermal insulation, such as fire blanket, pipe warp materials, work wear, welding shield cover.



Data Sheet



Material Aluminium Foil Fiberglass Fabric
Weave Satin
Thread Count 18/13 per cm
Total Weight 880g/m2
Thickness 0.9 mm
Aluminium Foil 7micron/ 18micron/ 25micron

Tensile Strength

(N/5cm)

 8000/6000
Width 100cm, 125cm, 155cm
Temperature

Fiberglass cloth: ≤550℃

Adhersive: ≤300℃



Features



  1. Heat reflective
  2. Fireproof
  3. Waterproof
  4. Abrasion resistant
  5. Anti chemical agents
  6. Electrical Insulation


Application


  • Welding blanket
  • Gas, oil pipe cover material
  • Fire safe wear
  • Building heat insulation
  • Automotive, car parts
  • Removable thermal insulation blanket

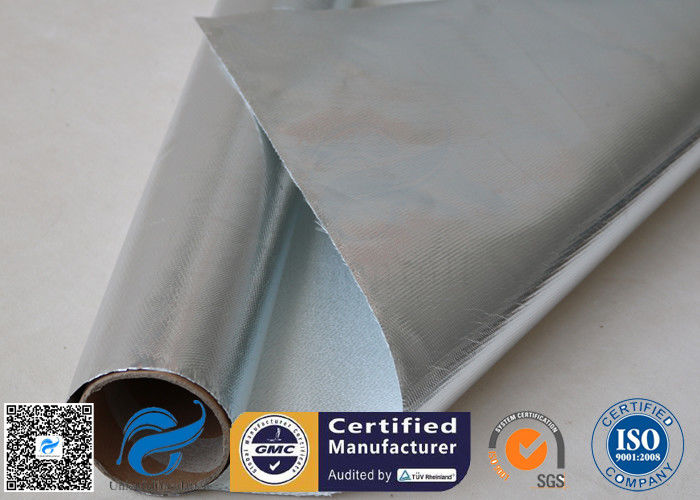

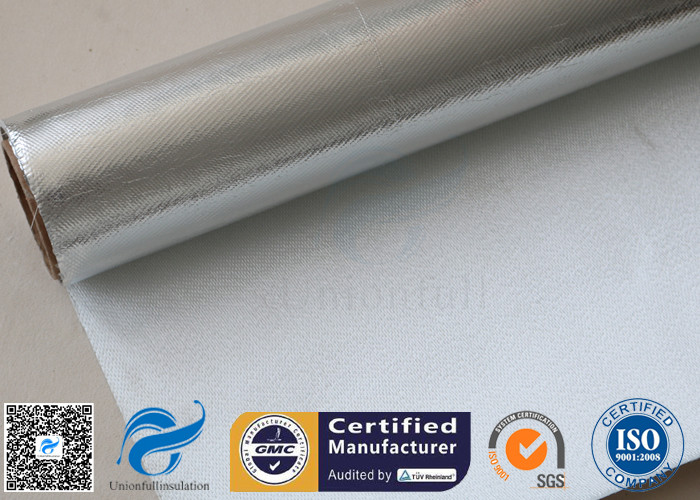

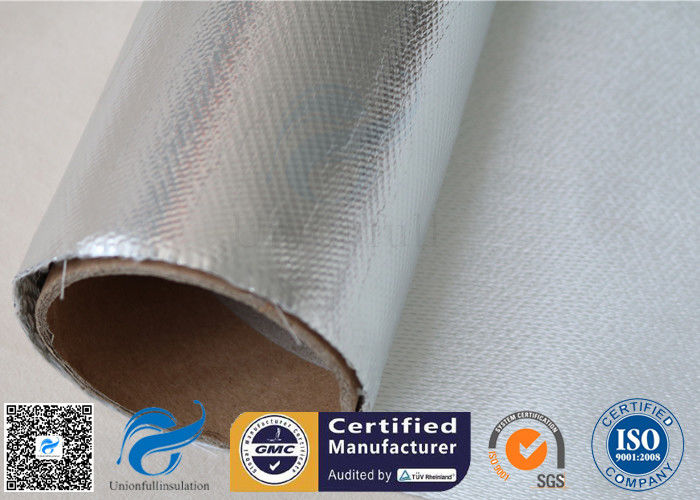

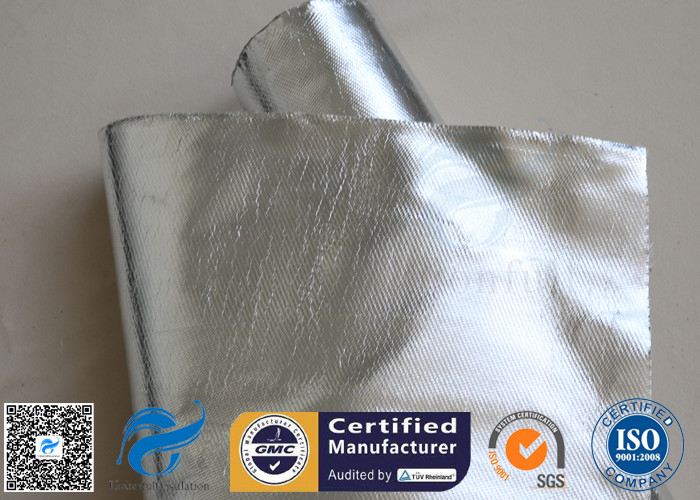

Pictures





Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric 0Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric 1
