1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials

China 1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials supplier
1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials supplier 1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials supplier 1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials supplier 1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials supplier

Large Image :  1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8786D250

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $5 - 8 / square meter
Packaging Details: 50 meters one roll
Delivery Time: 3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000m2 one day
Contact Now
Detailed Product Description
Basic: 3786 Fiberglass Fabric Coating: Grey Silicone
Weight: 1600g Weave: Satin
Width: 39"/100cm Temperature: Basic Cloth Below 550℃

1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials



Basic cloth of this silicone coated fiberglass fabric is 3786 fiberglass cloth woven by e-glass fiberglass yarns, coating is grey silicone 125g/m2 on both two sides. Total weight is 1600g/m2. Fiberglass cloth is a high strength material. This specification is very heavy duty and durable.



Properties of this heat resistant fabric includes electrical insulation, heat resistance and durability, dimension stablity. The basic fiberglass fabric can withstand heat below 550℃ continuously and silicone coating can be used below 260℃.

Silicone coated fiberglass fabric is widely used in industrial insulation fields. It can be used to produce high temp insulation, insulation blanket, welding blanket, heat insulation part, fabric expansion joints and removable insulation jacket.



Specification

Cloth Silicone Fiberglass Fabric
Style E-glass
Weave Satin Weave
Count 18/13
Coating Silicone, 125/125
Total Weight 1600g/m2, 47oz/yd2
Thickness 1.2mm
Width 39 Inches
Temperature

Silicone Coating below 260℃

Fiberglass below 550℃


Properties


  • Fire resistance
  • Anti hemical agents
  • Anti aging, weather
  • Durable


Application



  1. Fire, welding blanket
  2. Auto engine heat insulation
  3. Pipe corrosion resistance
  4. Fabric expansion joint
  5. Equipments electrical insulation cover
  6. Removable thermal insulation jacket
  7. Fiberglass pipe insulation

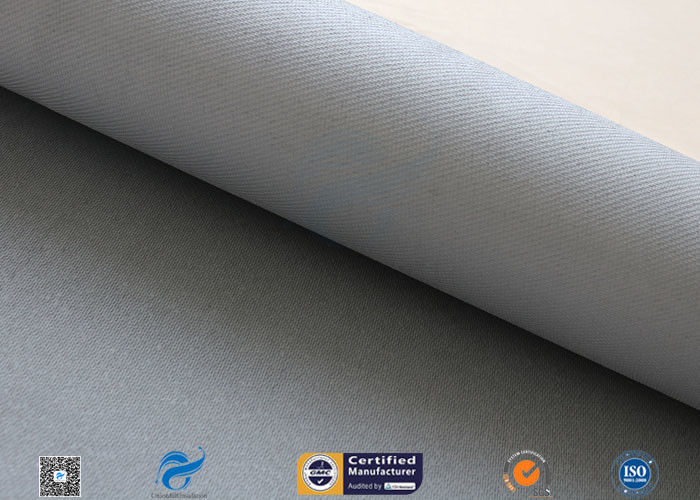

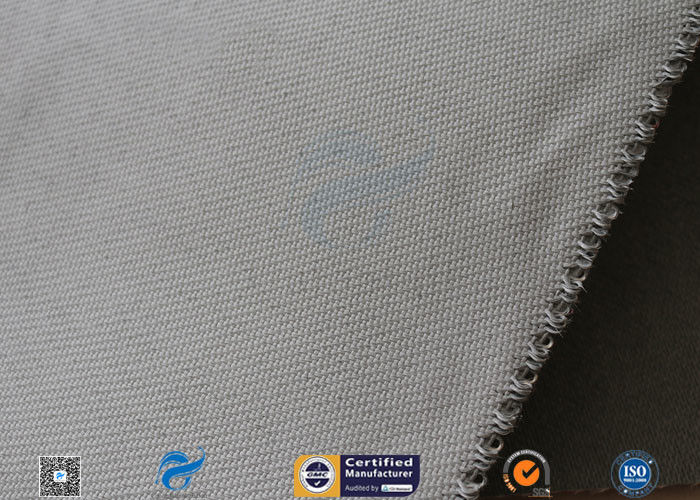

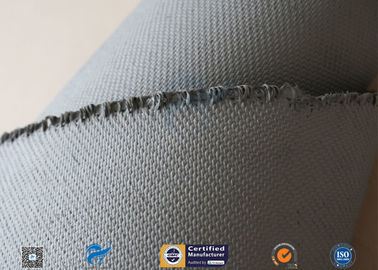

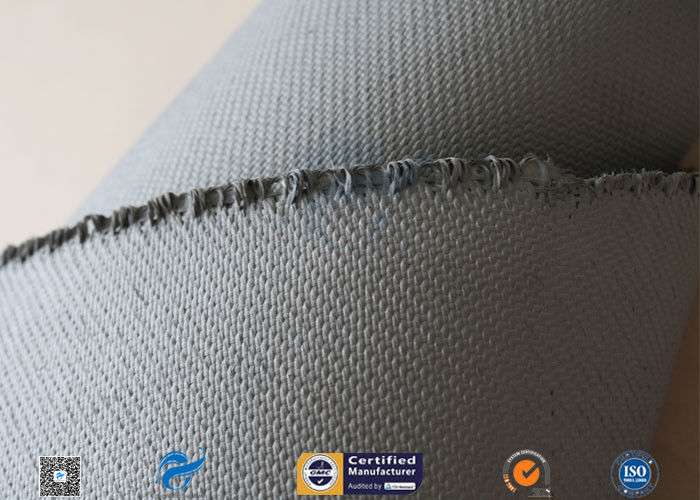

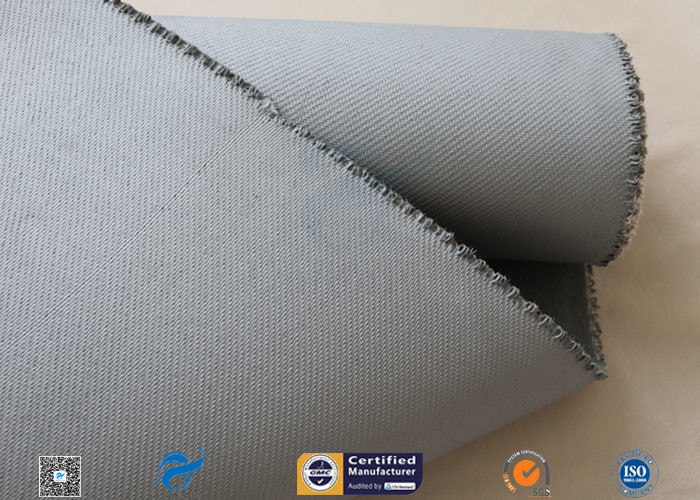

Pictures



1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials1600gsm 1.2mm 39" Silicone Coated Fiberglass Fabric Heavy Duty Materials
