Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation

Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation
Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation
Basic Information
Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8784
Minimum Order Quantity: 500 meters
Price: $2.3--$3.85/m2
Packaging Details: 50m one roll in woven fabric
Delivery Time: 20 working days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 40,000 Square Meters Per Day
Get Best Price Contact Now
Basic: 850g Fiberglass Weight: 880g/m2
Thickness: 0.9mm Width: 100cm
Density: 18 / 13 Foil Thickness: 7u, 18u, 25u, 50u Max
Highlight:

silver plated fabric

,

carbon fiber fabric

Silver Heat Reflective 0.9mm Aluminium Foil Fiberglass Fabric Pipe Insulation




Basic cloth of this 0.9mm silver coated fabric is 850g/m2 fiberglass fabric woven in satin weave. The silver aluminium foil is laminated on the fiberglass by high temperature adhesive. The total weight is 880g/m2 and total thickness is 0.9mm. Thickness of aluminium foil can be 7u, 18u, 25u and 50u max. Basic fiberglass fabric is able to withstand 550℃ (1022℉). With properties like heat insulation, fire resistance, chemical resistance and anti UV, corrosion. The silver foil makes the fabric with a heat reflective surface which can protect it from 95% heat.



The adhesive for foil can be ued below 300℃ continuously. This silver fabric is widely used in industrial fields for fire blanket, pipe protection, safe wear, sparks splasher shield cover.



Data Sheet



Material Aluminium Foil Fiberglass Fabric
Weave Satin
Thread Count 18/13 per cm
Total Weight 880g/m2
Thickness 0.9 mm
Aluminium Foil 7micron/ 18micron/ 25micron

Tensile Strength

(N/5cm)

 8000/6000
Width 100cm, 125cm, 155cm
Temperature

Fiberglass cloth: ≤550℃

Adhersive: ≤300℃



Features



  1. Heat reflective
  2. Waterproof
  3. Durable
  4. Chemical resistant
  5. Electrical Insulation
  6. Anti corrosion


Application


  • Welding protection
  • Gas, oil pipe warp material
  • Safety workwear
  • Construction heat insulation
  • Automotive application
  • Removable thermal insulation jacket



Pictures

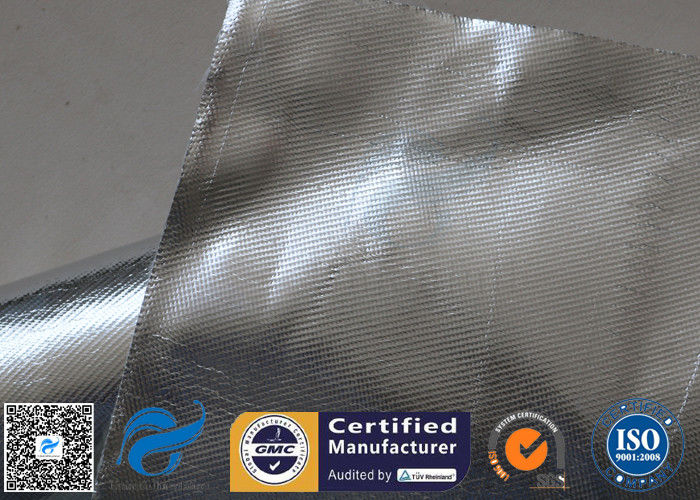

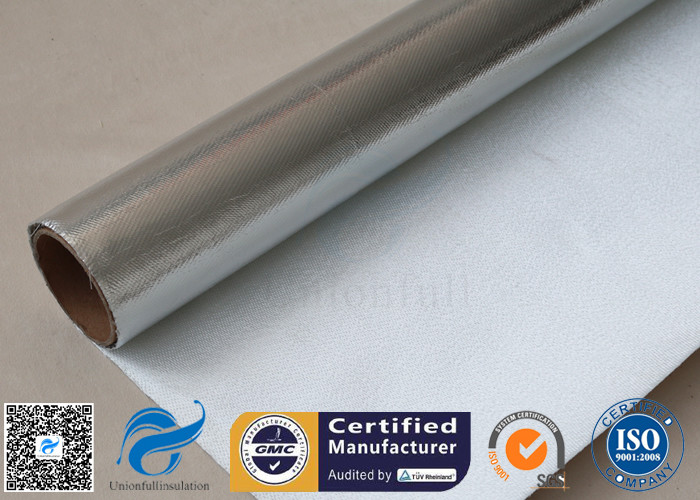

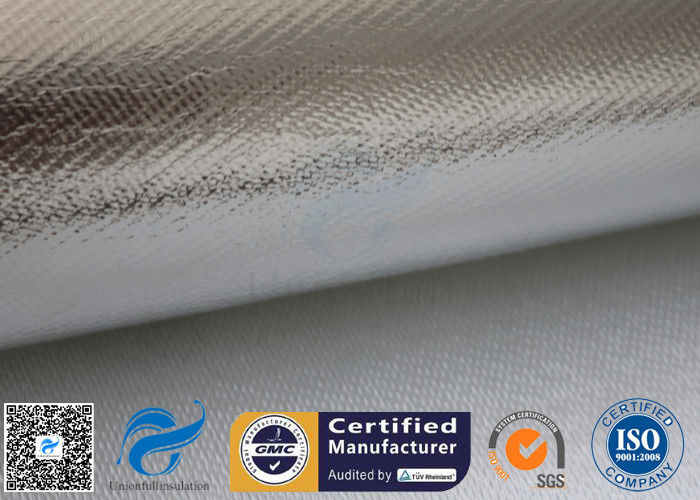

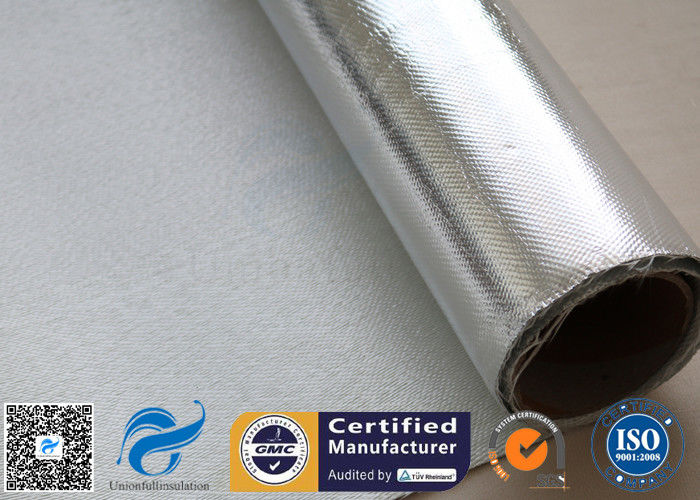

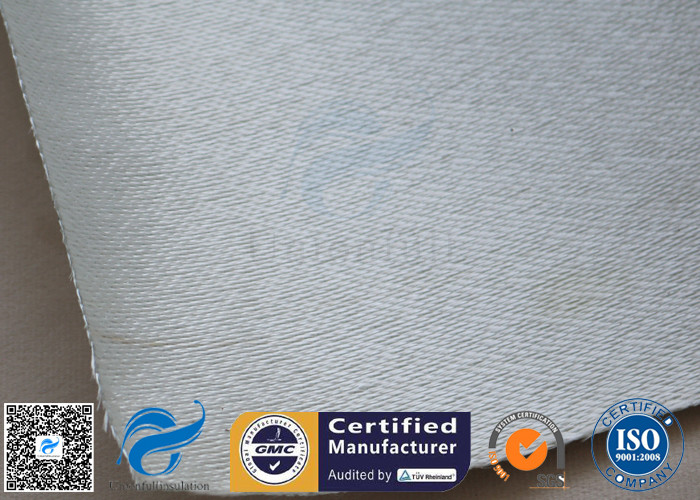

Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation 0
