Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature

China Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature supplier
Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature supplier Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature supplier Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature supplier Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature supplier

Large Image :  Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430TIJ-25

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: $25--$45 one piece
Packaging Details: 1 piece in poly bag, 10pcs in woven bag
Delivery Time: 20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5,000 PCS Per Day
Contact Now
Detailed Product Description
Materials: Fiberglass Fabric, Needle Mat Open With: Fire Retardant Hook And Loop
Net Weight: 3kg Thickness: 25mm
Temperature: Inside Materials≤ 800 ℃ Fit: Actuator



Silicone Coated Fiberglass Fabric Thermal Insulation Covers Removable High Temperature

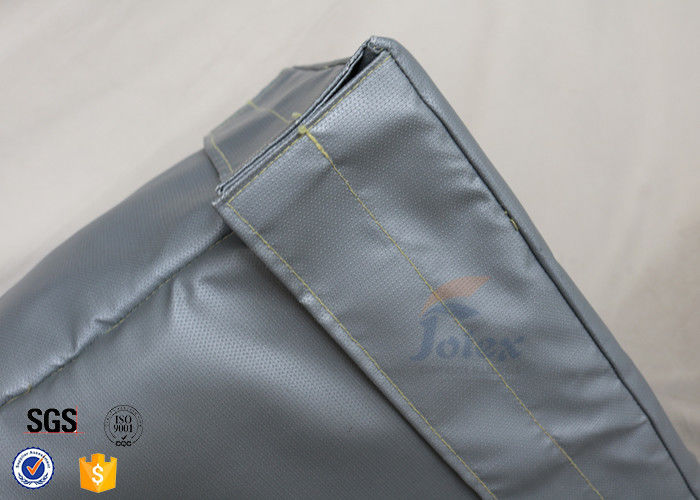

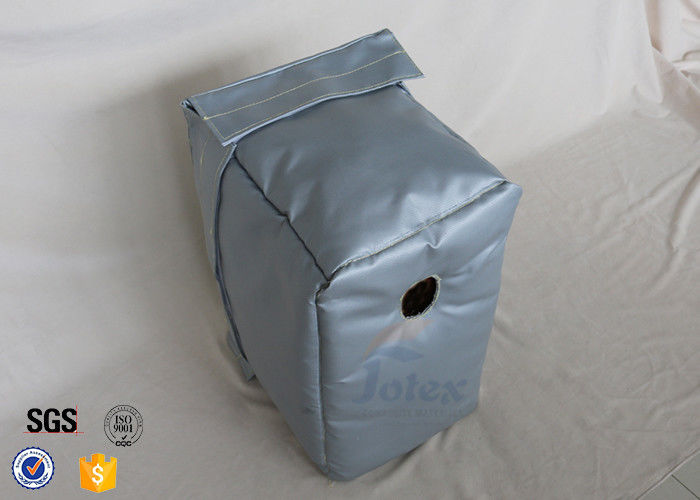

Thermal insulation jacket (exhaust blanket) is a sandwich design products. It is used for protecting actuator, valve or pipeline from heat and cold damage. This insulation jacket is heat resistant and inside high temperature air or liquid won't hurt the workers. The surface temperature of the jacket will be controlled so workers are able to touch the surface without gloves at any time.

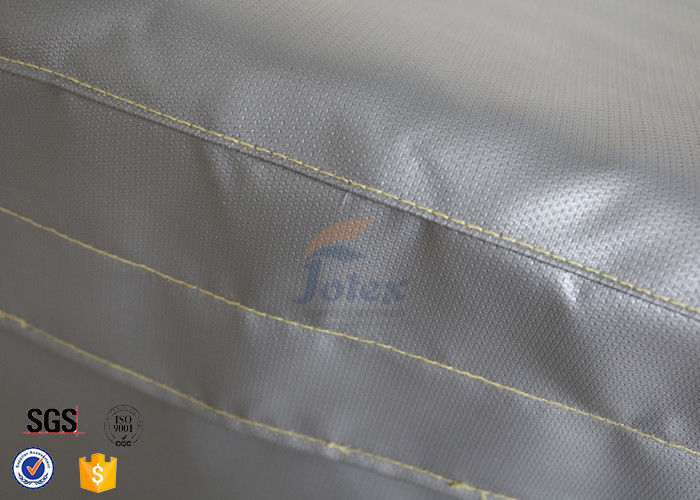

The jacket is in sandwich design: two layers of silicone coated fiberglass fabric, between them are wadding materials - fiberglass needle mat. Silicone coated fiberglass cloth and fiberglass needle mat are both heat resistant, chemical resistant and anti UV, weather corrosion. Silicone coated fiber glass fabric is also a good electrical insulation material. What's more, Fiberglass materials are eco-friendly, which means there is no pollution after using this materials and it can be recycled.

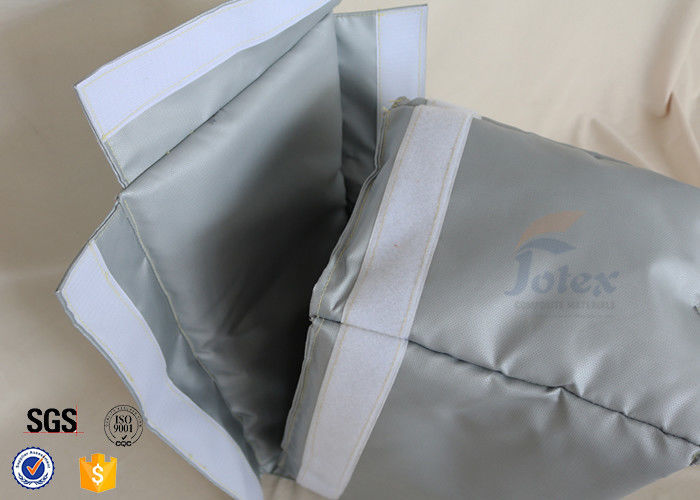

Closeure of this jacket is fire retardant hook and loop. So it is easy to remove it to check the inside actuators and valves. The working temperature of silicone coated fiberglass cloth is -50 to 260℃. Inside material - fiberglass needle mat is able to withstand 800℃ heat continuously.


Data Sheet:



Item Name Removable Thermal Insulation Jacket
Fit Actuator
Net Weight 3KG
Thickness 25mm
Inner Size 23x25x41cm
Outside Materials Name Silicone Coated Fiberglass Cloth

Service

Temperature

Basic Fiberglass Cloth:≤550℃
Silicone Coating:≤260℃
Inside Materials Name Fiberglass Needle Mat
Temperature ≤800℃ Continuously
Accessories Fire Retardant Hook And Loop, Kevlar Thread


About Its Thermal Insulation:

IR Test result showed that when the temperature in the jacket goes up to 300℃ continuously, the surface temperature of the jacket is 32℃.

Features:


  1. Save heat loss
  2. Heat insulation, surface temperature will be below 40℃ continuously
  3. Customized design and size
  4. Easy to install and remove
  5. Waterproof
  6. Anti chemical corrosion
  7. Abrasion resistant
  8. Electrical insulating


Application:
