1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator

China 1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator supplier
1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator supplier 1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator supplier 1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator supplier 1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator supplier

Large Image :  1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8784D200

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $4.47 - 5.10 / Square Meter
Packaging Details: 50 meters one roll in poly bag in carton
Delivery Time: 3 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 square meter one day
Contact Now
Detailed Product Description
Basic Fabric: 850g/m2 Fiberglass Coating: Silicone, 100/100
Total Weight: 1050g/m2 Weave: Satin
Common Width: 100cm Thread Count: 8 / 6 Ends Per Cm

1050gsm 0.85mm Silicone Coated Fiberglass Fabric Non Metallic Compensator



This 1050g/m2 silicone coated fiberglass fabric is made of basic 850g e-glass fiber glass fabric which is woven in satin. The coating is grey silicone 100/100 per side on two sides. This 0.85mm silicone coated fiberglass cloth is a heavy duty, heat resistant material.



Silicone coating has electrical insulation and abrasion resistance, which makes the fiberglass fabric with more properties to meet special requirements. Its application is wider. Basic 850g/m2 fiberglass fabric can withstand heat below 550℃ continuously and silicone coating can resist heat from -50 to 260℃ continuously.

Applications of silicone coated fiber glass fabric are fire blanket, engine heat insulation, expansion joints and removable insulation cover for pump/transmitter/strainer/flange.



Specification:

Item Silicone Coated Fiberglass Fabric
Yarn Type E-glass
Weave Satin
Thread Count 8/6
Weight 1050g/m2
Thickness 0.85mm
Width 100cm
Temperature

Fiberglass Cloth ≤ 550℃

Silicone ≤ 260℃


Properties:


  • Flame resistant
  • Heat insulation
  • Anti aging, UV
  • Abrasion resistant
  • Electrical insulation


Application:



  1. Industrial fire blanket
  2. Heat insulation part
  3. Fabric expansion joint
  4. Railway engine heat resistant
  5. Exchanger insulation covers
  6. Non-metallic compensator



Pictures:

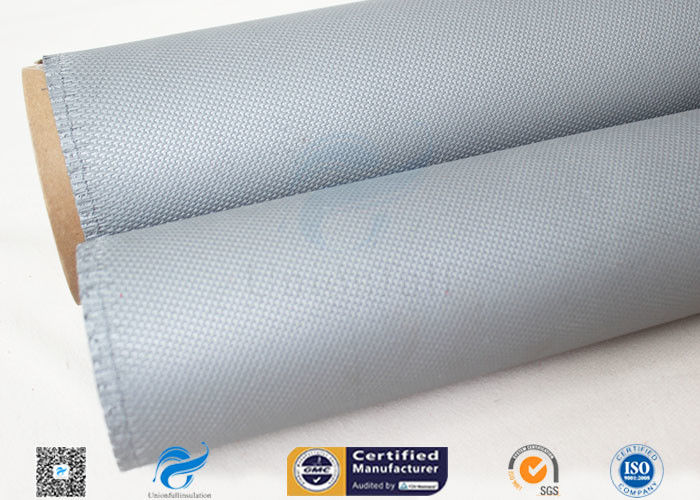

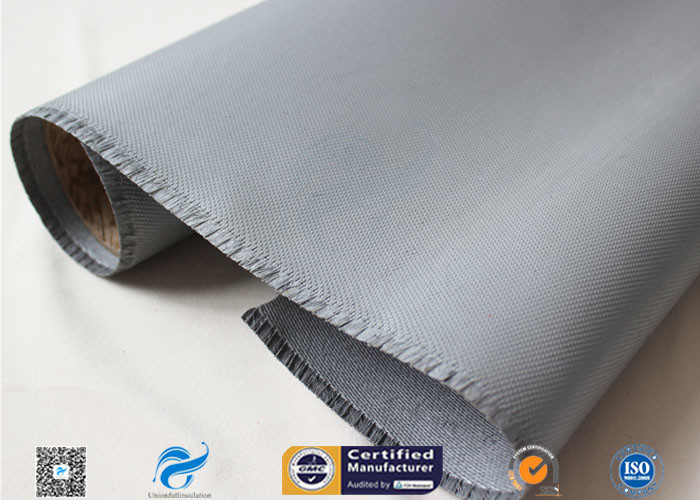

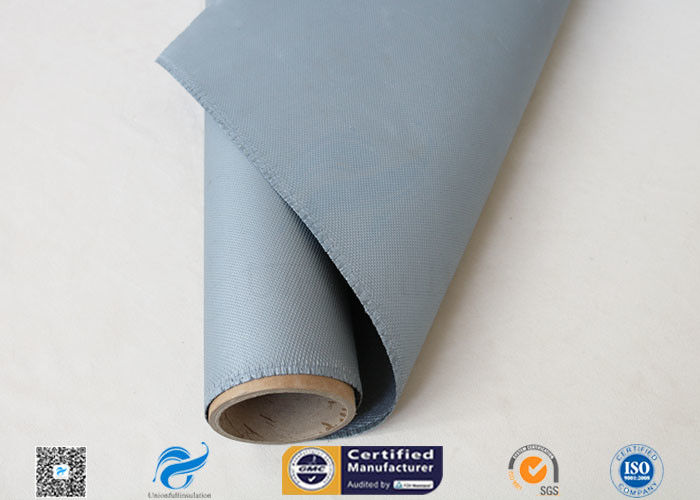

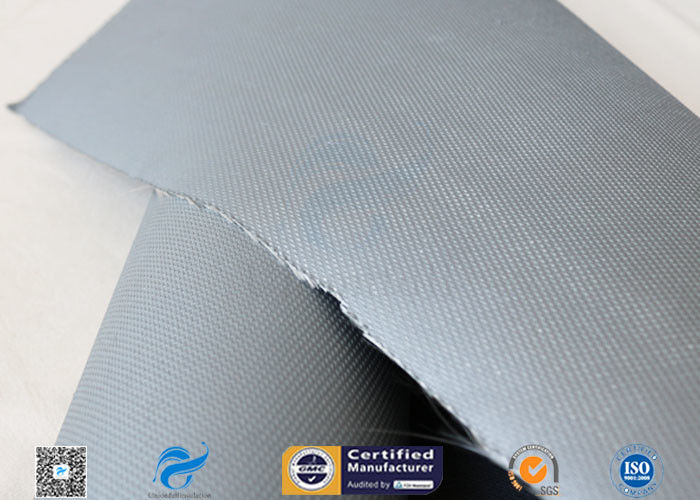

1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator1050gsm 0.85mm Silicone Coated Fiberglass Cloth Non Metallic Compensator
