Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket

China Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket supplier
Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket supplier Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket supplier Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket supplier Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket supplier

Large Image :  Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8784D200

Payment & Shipping Terms:

Minimum Order Quantity: 300 Meters
Price: $4.47 - 5.10 / Square Meter
Packaging Details: 50 meters one roll in poly bag in carton
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60,000 square meter one day
Contact Now
Detailed Product Description
Basic Fabric: 850g/m2 Fiberglass Coating: Grey Silicone
Weight: 1050g/m2 Totally Weave Type: Satin
Width: 1 Meter Thread Count: 8/6



Exchanger Thermal Insulation Materials 1050gsm Silicone Coated Fiberglass Cloth



This thermal insulation materials - 1050g/m2 silicone coated fiberglass fabric is coating the basic 850g e-glass satin weave fiber glass fabric with grey color silicone coating on two sides. Coating weight is 100g per side so total weight of silicone coated fabric is 1050g/m2. This 0.85mm satin weave silicone coated fiberglass fabric is a heavy duty and high strength heat insulation material.



Silicone coating has features like electrical insulation and abrasion resistance. It improves the properties of fiberglass fabric. Basic 850g/m2 fiberglass fabric can withstand heat below 550℃ continuously, silicone coating is able to resist heat from -50 to 260℃.

Silicone coated fiberglass fabric is mainly used for industrial thermal insulation application includeing fire blanket, welding blanket, engine heat insulation, jacketed vessel insulation covers and removable thermal insulation jacket.



Specification:

Item Silicone Coated Fiberglass Fabric
Yarn E-glass
Weaving Satin
Thread Count 8/6
Weight 1050g/m2
Thickness 1mm
Width 100cm
Temperature

Fiberglass Cloth ≤ 550℃

Coating ≤ 260℃


Properties:


  • Fire resistant
  • Heat insulation
  • Chemical resistant
  • Anti aging
  • Abrasion resistant
  • Electrical insulation


Application:



  1. Fire blanket
  2. Heat insulation part
  3. Fabric ductwork connector
  4. Fabric expansion joint
  5. Railway engine heat resistant
  6. Exchanger insulation covers

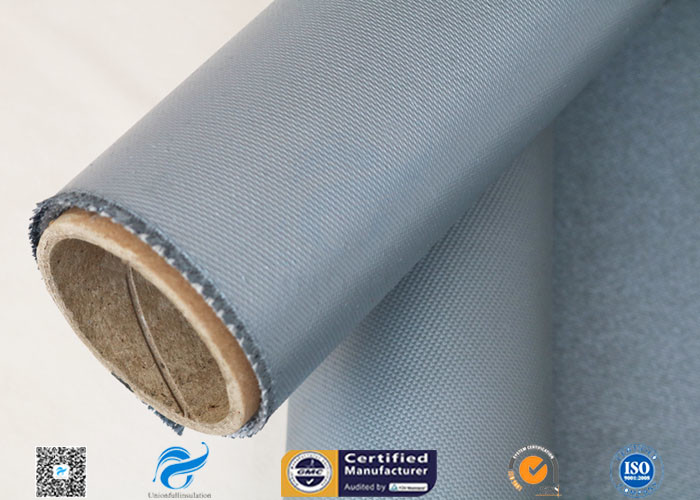

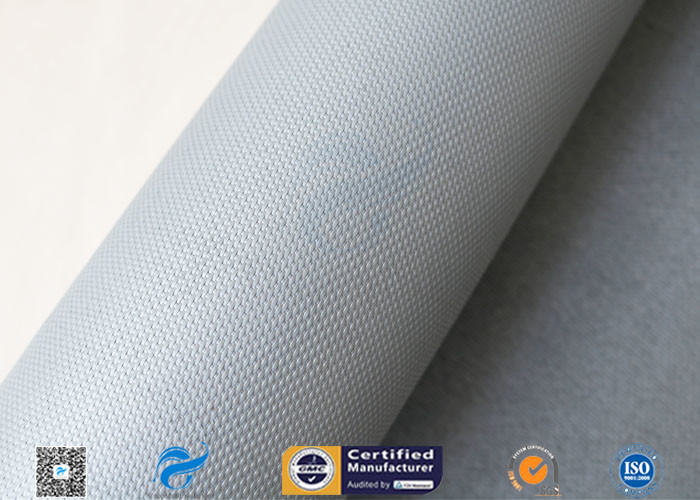

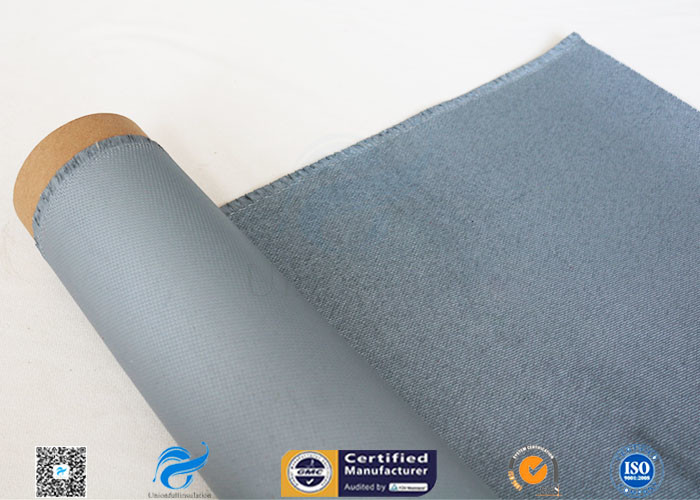

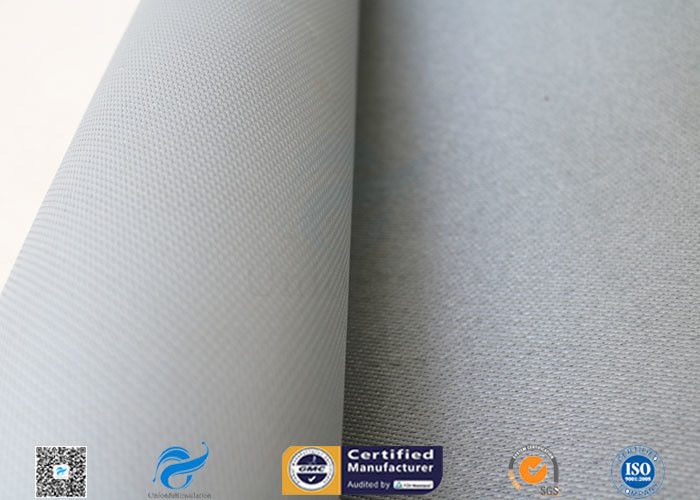

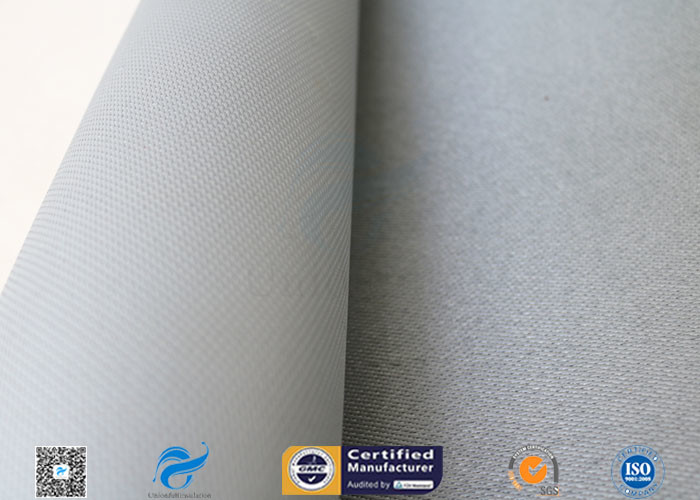

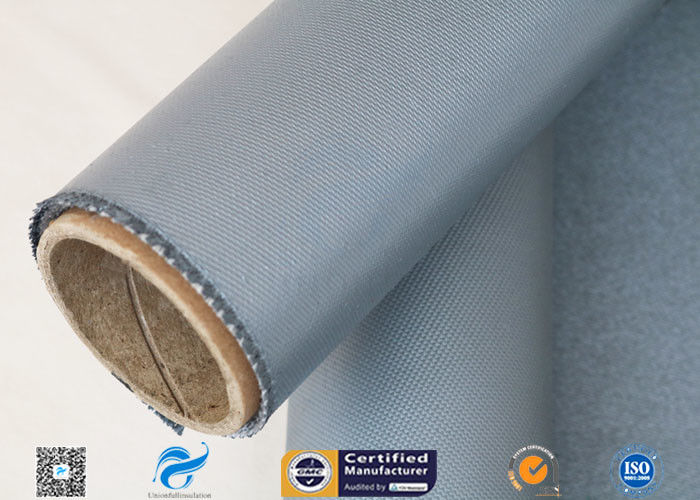

Pictures:



Exchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation JacketExchanger 1050gsm Silicone Coated Fiberglass Cloth For Insulation Jacket
