Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket

Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket
Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732D150
Minimum Order Quantity: 400 Meters
Price: $2.85-3.5 / Square Meter
Packaging Details: 50 meters one roll in poly bag
Delivery Time: 15 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 45,000 m2 per day
Get Best Price Contact Now
Material: 430g/m2 Fiberglass Faric Coating: Silicone, 75gsm Per Side
Total Weight: 580g/m2 Weave: Satin
Width: 100cm Temperature: Silicone Coating ≤260℃
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

580g 0.45mm Red Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket


0.45mm silicone coated fiberglass fabric is woven in satin weave. Its basic cloth is e-glass 430g/m2 fiber glass fabric. Silicone can be one side coated or two side coated, usually 40g, 60g, 80g, 100g per side. This one is coated with 75g/m2 red silicone on two sides, total weight is 580g/m2 and 0.45mm thick.



E-glass fiberglass fabric is fire resistant, oil/chemical resistant and tear resistance. Silicone coating provides better electrical insulation and abrasion resistance.



The basic fiberglass fabric can be used at temperature below 550℃ continuously. Silicone coating can resist heat below 260℃. Silicone coated fiberglass fabrics are mainly used to produce removable thermal insulation jacket, fire/welding blanket, fabric expansion joints, hot tunnel curtain, pipe anti corrosion, etc.



Specification:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiberglass
Weave Satin
Thread Count 20/11 Ends/CM
Weight 580g/m2
Thickness 0.45mm
Width 1 Meter
Servise Temperature

Coating below 260℃

Fiberglas cloth below 550℃


Features:


  • Heat inculation
  • Fire resistance
  • Electrical insulation
  • Durability
  • Teat resistance
  • Chemical corrosion resistance


Application:



  1. Fire blanket
  2. Fabric expansion joint
  3. Electrical insulation
  4. Enginer heat insulation material
  5. Aerospace and other industrIes application

Picture:

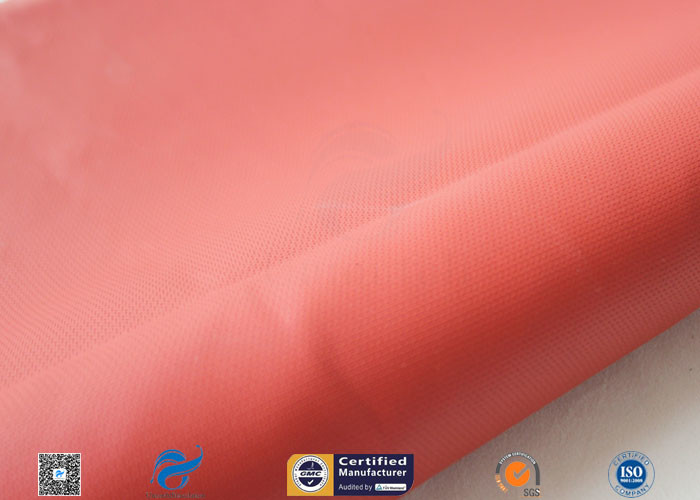

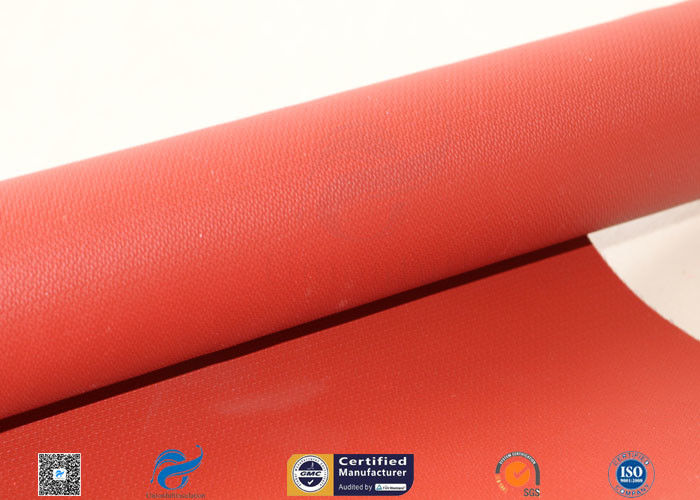

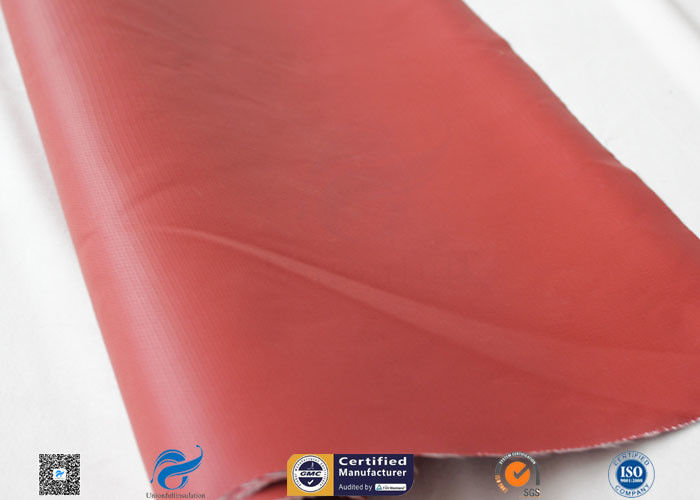

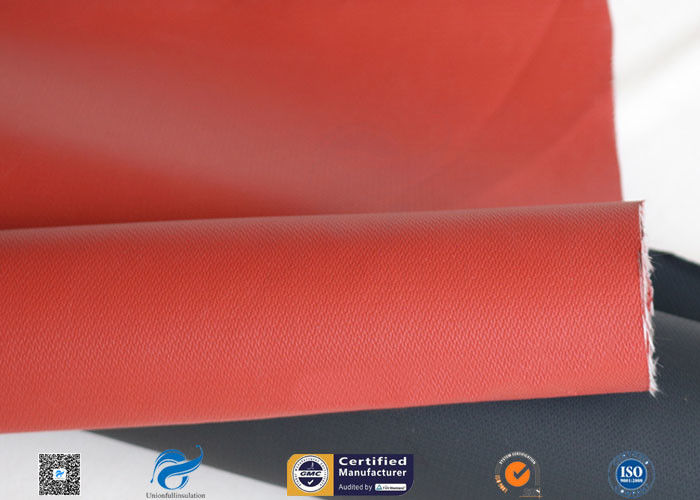

Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket 0Red 0.45mm 580g Silicone Coated Fiberglass Fabric For Thermal Insulation Jacket 1
