Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric

Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric
Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric
Basic Information
Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732
Minimum Order Quantity: 500 meters
Price: $2.3--$3.85/m2
Packaging Details: 50m one roll
Delivery Time: 20 working days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30,000 Square Meters Per Day
Get Best Price Contact Now
Basic: 430g Fiberglass Total Weight: 480g/m2
Thickness: 0.43mm Width: 127cm
Yarn Count: 19.6 / 11.5 Aluminium Foil: 7u, 18u, 25u, 50u Max
Highlight:

silver plated fabric

,

silver carbon fiber

Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric




0.43mm silver coated fabric is a basic fiber glass fabric which is laminated with aluminium foil by a high temperature adhersive. Basic cloth of 0.43mm silver coated fabric is 430gsm cloth woven in satin weave. Thicknesses of aluminium foil are 7U, 18U, 25U and 50U max. The total weight of silver coated fabric is 480g/m2. This fabric is fire resistant, chemical corrosion resistant and anti UV, anti aging, what's more, it is heat reflective and will reflect 95% heat.

Fiber glass fabric can be used from -100° F to 1022° F. And the special adhersive can be used below 300℃. Based on all these properties, this silver coated fiberglass fabric is widely used for thermal insulation in many fields.



Data Sheet



Material Aluminium Foil Fiberglass Fabric
Weave 4H Satin
Yarn Type EC9 33 2X2
Total Weight 480g/m2
Thickness 0.43 mm
Aluminium Foil 7micron/ 18micron/ 25micron

Tensile Strength

(N/5cm)

 6000/4500
Width 127cm or customized
Temperature

Basic fiberglass cloth: 550℃

Adhersive: 300℃



Features



  1. Heat reflective
  2. Waterproof
  3. Tear resistant
  4. Anti chemical agent
  5. Electrical Insulation
  6. Anti aging, weather


Application


  • Hot work protection
  • Gas, oil pipe cover
  • Safety workwear
  • Construction sparks protection
  • Automotive heat shield
  • Removable thermal insulation jacket



Pictures

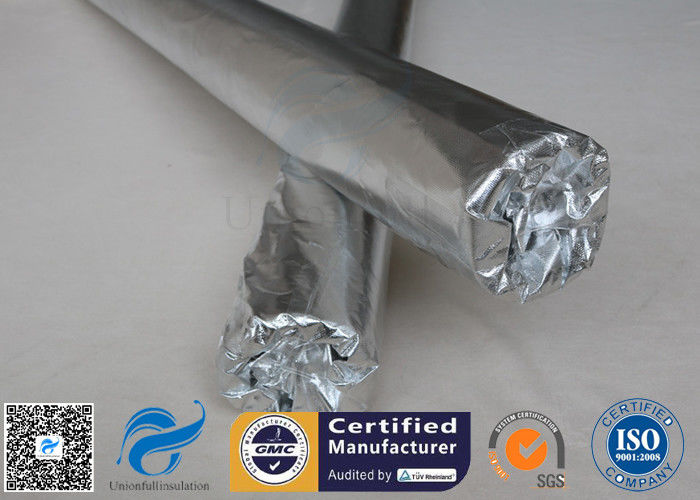

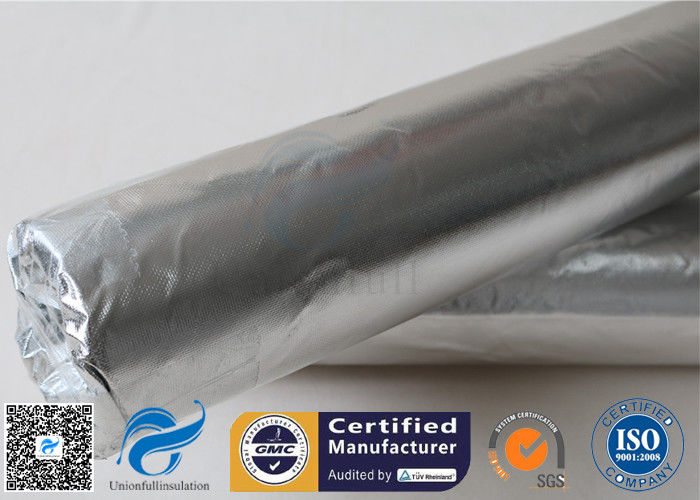

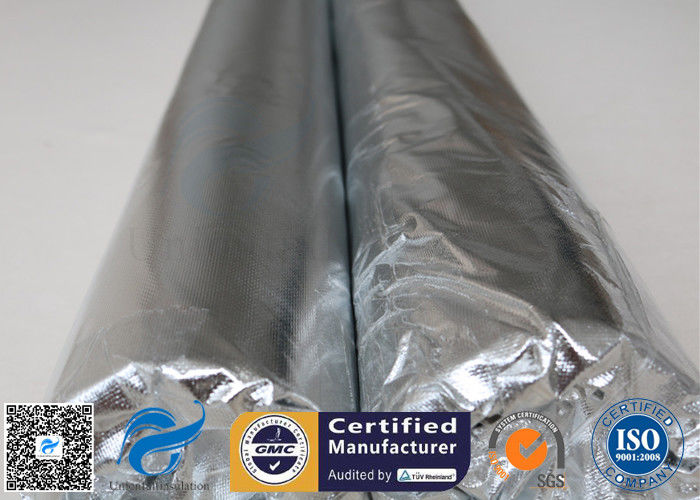

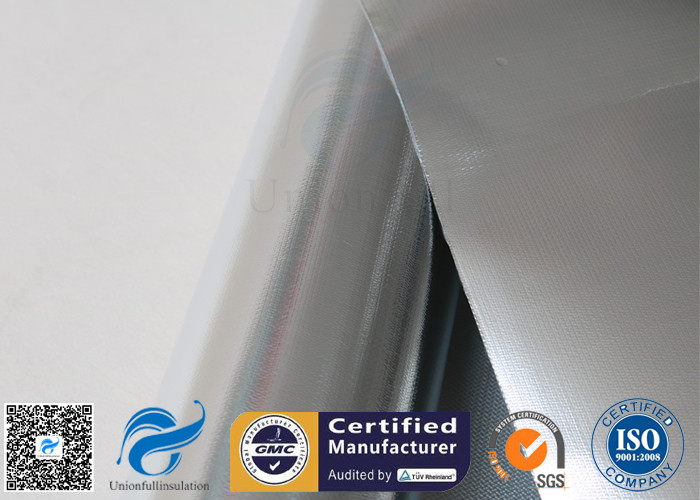

Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric 0Heat Reflective 0.43mm Aluminium Foil Fiberglass Cloth Fire Blanket Fabric 1
