0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth

China 0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth supplier
0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth supplier 0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth supplier 0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth supplier 0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth supplier

Large Image :  0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430AFS-50-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: $2.55--$4.35/m2
Packaging Details: One roll 50 meters with poly bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 70,000 Square Meters Per Day
Contact Now
Detailed Product Description
Basic: 430gsm Fiberglass Cloth Total Weight: 520g/m2
Thickness: 0.5mm Width: 39 Inches
Color: One Side Grey, One Side Silver Weave: Satin

0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth

Basic of this one side silicone, one side aluminium foil fiberglass cloth is 430g/m2 fiberglass fabric. A layer of aluminium foil is laminated on the fiberglass cloth by high temperature adhesive. Another side is grey silicone coating. Total weight of this two side coard fabric 520g/m2 and thickness is 0.5mm.

The basic fiber glass cloth can resist temperature from -50 to 550℃. But the adhesive for aluminium foil should be used below 300℃ continuopusly. For another side silicone coating is able to withstand heat below 260℃.

One side aluminium foil one side silicone coated fiberglass fabric is widely used for heat insulation and heat reflective application. It is tear resistant, fire resistant, anti chemical corrosion, electrical insulation and waterproof to some extent.

Data Sheet


MaterialAluminium Foil / Silicone Fiberglass Fabric
WeavingSatin
Yarn TypeEC9 33 2X2 / EC9 33 2X2
Weight520g/m2
Thickness0.5mm
Thickness Of Aluminium Foil7micron/18micron/25micron, 50U max

Tensile

Strength

Warp6000 N/5cm
Weft4500 N/5cm
Width100cm, 39 inches
Service Temperature

Fibreglass Cloth: 550℃

Adhersive, Silicone coating: 260℃



Features:


  1. Heat reflective
  2. Fire resistant
  3. Waterproof
  4. Durable, high strength
  5. Chemical corrosion resistant
  6. Anti aging, weather
  7. Electrical insulation


Application


  • Hot work protective wear
  • Electrical euipment cover
  • Thermal insulation blanket
  • Fire curtain, welding blanket
  • Construction
  • Automotive industry

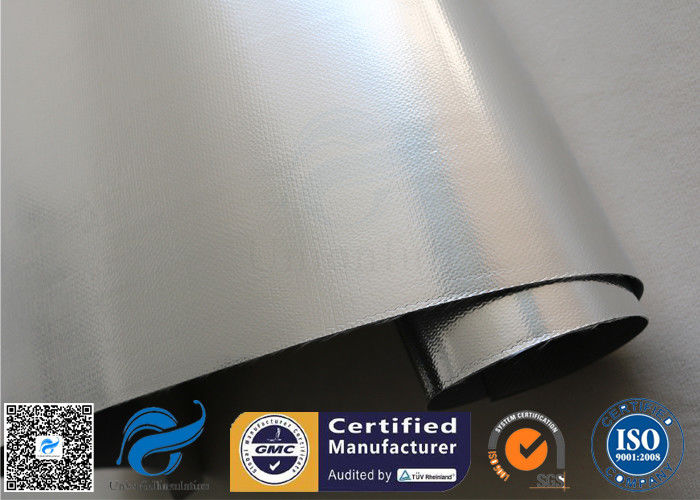

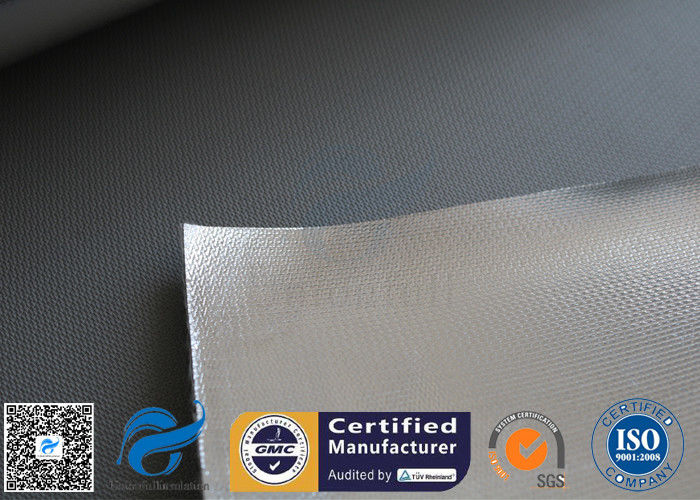

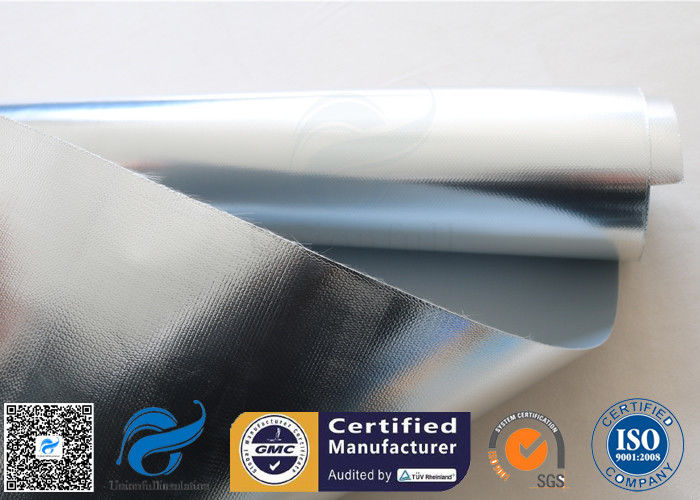

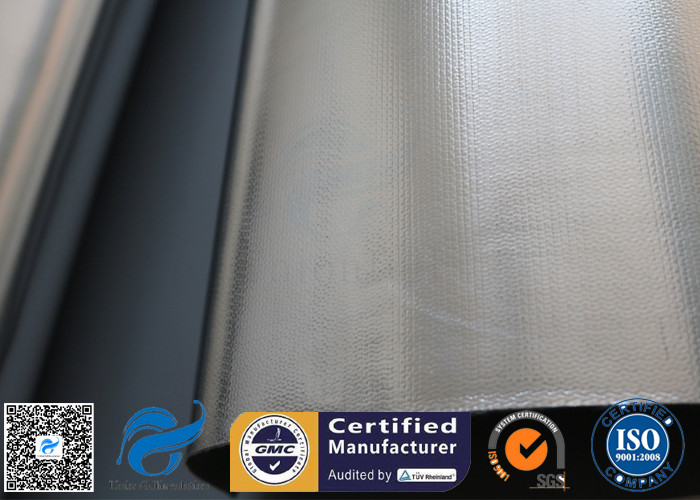

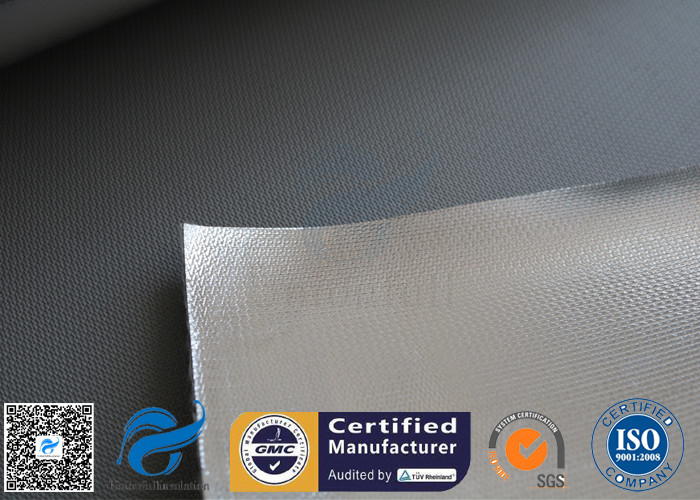

Pictures:

0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth0.5Mm 3732 Silver Coated Fabric , Silver Coated Fiberglass Fabric Aluminium Foil Cloth
