0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth

China 0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth supplier
0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth supplier 0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth supplier 0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth supplier 0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth supplier

Large Image :  0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430AFS-50-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: $2.55--$4.35/m2
Packaging Details: One roll 50 meters with poly bag
Delivery Time: 20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 Square Meters Per Day
Contact Now
Detailed Product Description
Basic: 430gsm Fiberglass Cloth Total Weight: 520g/m2
Thickness: 0.5mm Width: 39 Inches
Color: One Side Grey, One Side Silver Weave: Satin

 0.5mm Silver Coated Fabric Silicone Coated / Aluminium Foil Fiberglass Cloth

This one side silicone coated one side aluminium foil fiberglass cloth is made of 430g/m2 fiberglass fabric. A layer of aluminium foil is laminated on the fiberglass fabric by high tenperature adhesive. Another side is grey silicone coating. Total weight is 520g/m2 and the thickness is 0.5mm.

The base fiberglass cloth can withstand a temperature below 550℃. Aluminium foil should be used below 660℃. But the high temeperature adhesive will melt above 300℃ continuopusly. For another side silicone coating can be used below 260℃.

This one side aluminium foil one side silicone coated fiberglass fabric is mainly sed for thermal insulation and heat reflective purpose. It is heat resistant, anti chemical agents, corrosion resistant, electrical insulation. Also, it is waterproof to some extent.

Data Sheet


Material Aluminium Foil / Silicone Fiberglass Fabric
Weave Satin Weave
Yarn EC9 33 2X2 / EC9 33 2X2
Total Weight 520 g/m2
Thickness 0.5mm
Thickness Of Aluminium Foil 7micron/18micron/25micron, 50U max

Tensile

Strength

Warp 6000 N/5cm
Weft 4500 N/5cm
Width 100cm, 39 inches
Service Temperature

Fibreglass Cloth: 550℃

Adhersive, Silicone coating: 260℃



Features:


  1. Heat reflective
  2. Abrasion resistant
  3. Waterproof
  4. Durable, Tear resistant
  5. Chemical resistant
  6. Anti aging, UV
  7. Electrical insulation


Application


  • Hot work protective clothing
  • Gas and liquid euipment coverings
  • Removable thermal insulations
  • Fire curtains/blankets
  • Heat containment
  • Construction
  • Chemical processing
  • Automotive industry


Pictures:

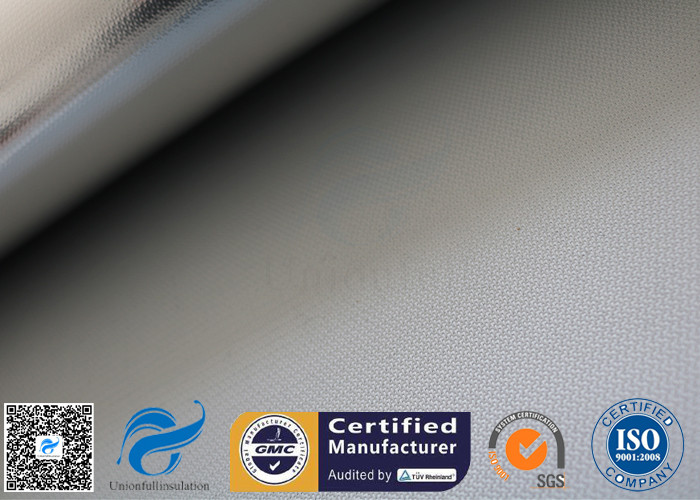

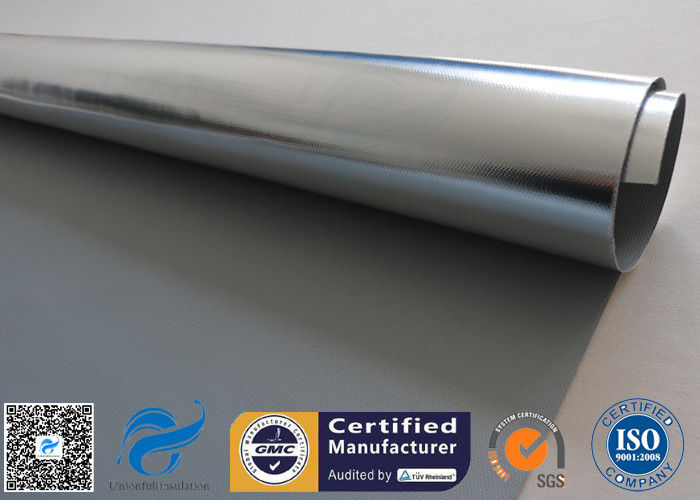

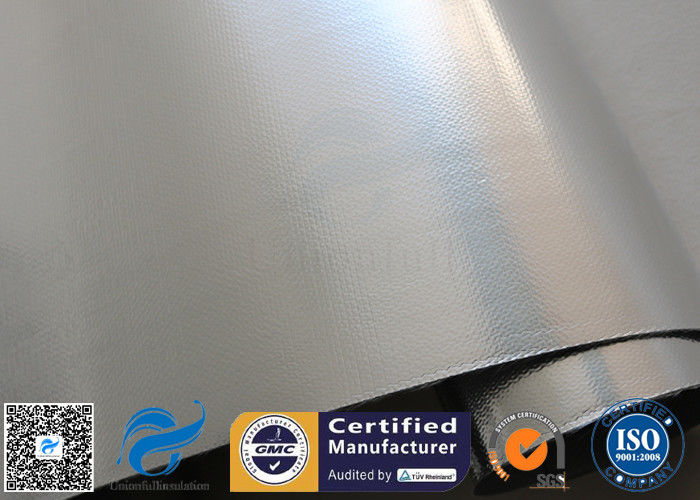

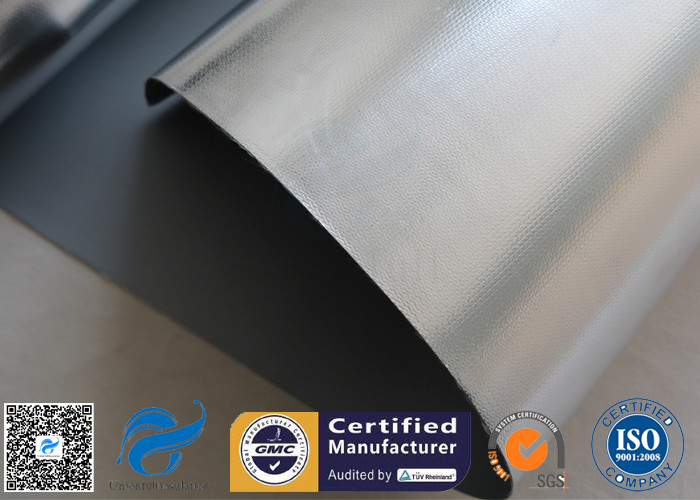

 0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth0.5mm Silicone Silver Coated Fabric / Aluminium Foil Fiberglass Cloth
