Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPSE-8732D150 |
Minimum Order Quantity: | 400 Meters |
Price: | $2.85-3.5 / Square Meter |
Packaging Details: | 50 meters one roll in poly bag |
Delivery Time: | 15 Working Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 45,000 m2 per day |
Material: | 3732 Fiberglass Faric | Coating: | Silicone, 75/75 |
---|---|---|---|
Total Weight: | 580gsm | Standard Width: | 100cm, 39" |
Weave: | Satin | Color: | Red |
High Light: | silicone coated glass cloth,silicone coated glass fabric |

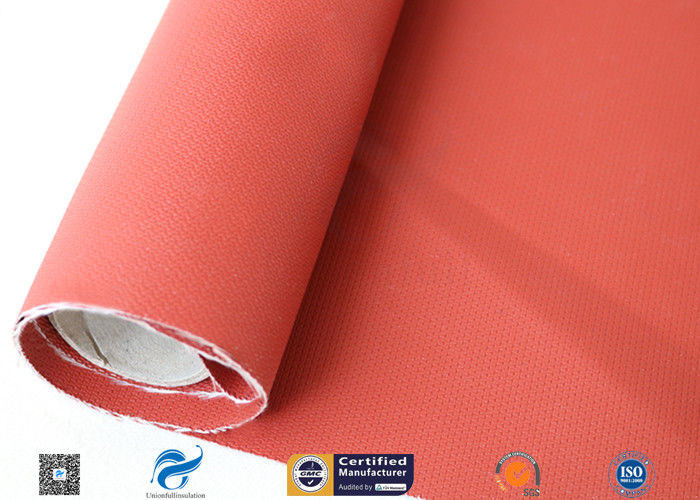

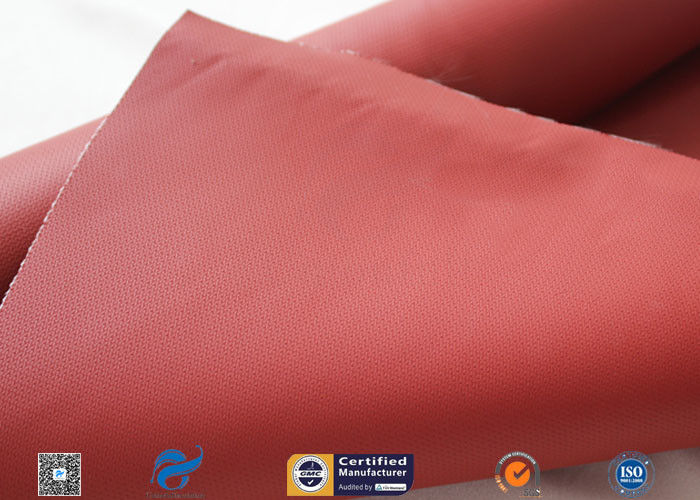

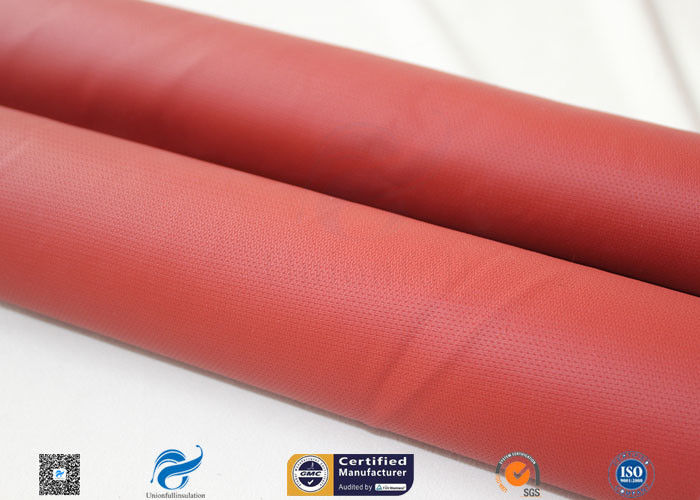

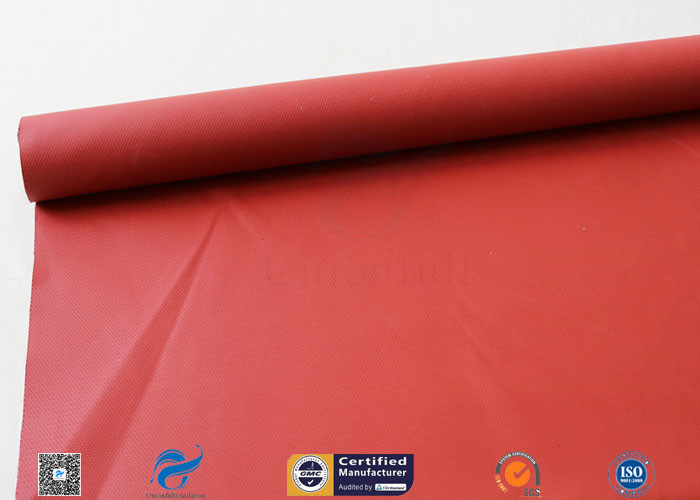

580gsm 17oz 3732 Red Silicone Coated Fiberglass Fabric Pipe Heat Insulation
Basic of this silicone coated fabric is woven e-glass fiberglass cloth. It is 3732 fabric in satin weaving type. When coated with 75g/m2 red silicone on one side or both two sides, it is 580g/m2 and 0.55mm thick.
E-glass fiberglass fabric is fire and heat resistant, oil, chemical resistant and high tensile strength. Silicone coating provides better electrical insulation property.
The basic cloth 3732 fiberglass fabric is capable of withstanding heat below 550℃ continuously. Silicone coating can resist heat below 260℃. Silicone coated fiberglass fabrics are mainly used for fire/welding blanket, fabric expansion joints, pipe protective cover, hot tunnel curtains and removable thermal insulation jacket materials.
Item | Silicone Coated Fiberglass Fabric |
Material | E-glass Fiberglass |
Weave | 4H Satin |
Warp Count | 20 Ends/CM |
Weft Count | 11 Ends/CM |
Weight | 580g/m2 |
Thickness | 0.55mm |
Width | 1000mm |
Servise Temperature |
Coating below 260℃ Fiberglas cloth below 550℃ |
Features:
Application:
Picture:
