Place of Origin: | Zhejiang, China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPEAL-8732 |
Minimum Order Quantity: | 500 meters |
Price: | $2.3--$3.85/m2 |
Packaging Details: | 50m one roll |
Delivery Time: | 15 Working Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 20,000 Square Meters Per Day |
Basic Cloth: | 430g Fiberglass Fabric | Weight: | 480g/m2 |
---|---|---|---|
Thickness: | 0.43mm | Width: | 100cm |
Yarn Count: | 19.6/11.5 | Aluminium Foil: | 7u, 18u, 25u, 50u |
High Light: | silver plated fabric,carbon fiber fabric |

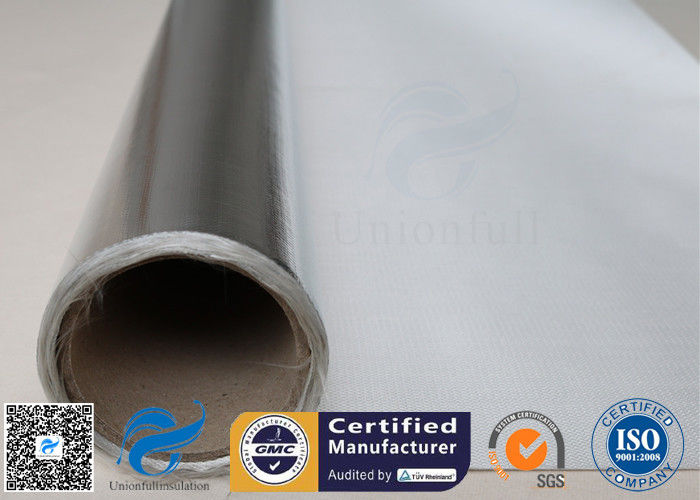

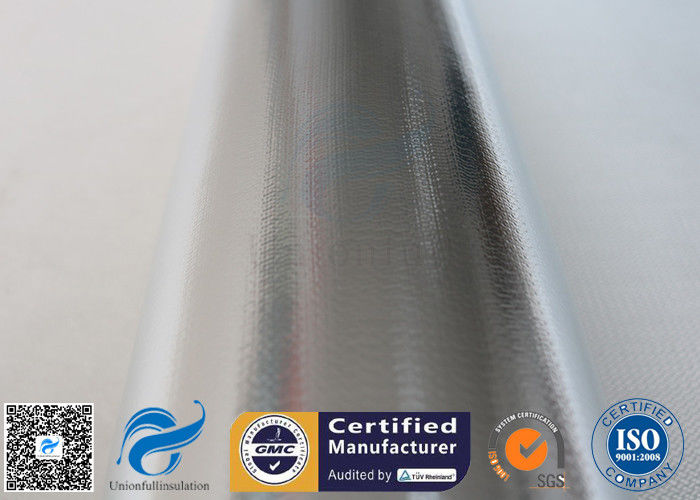

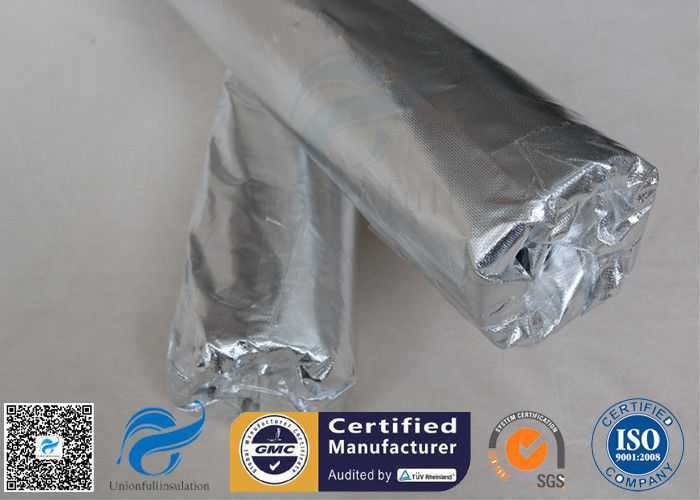

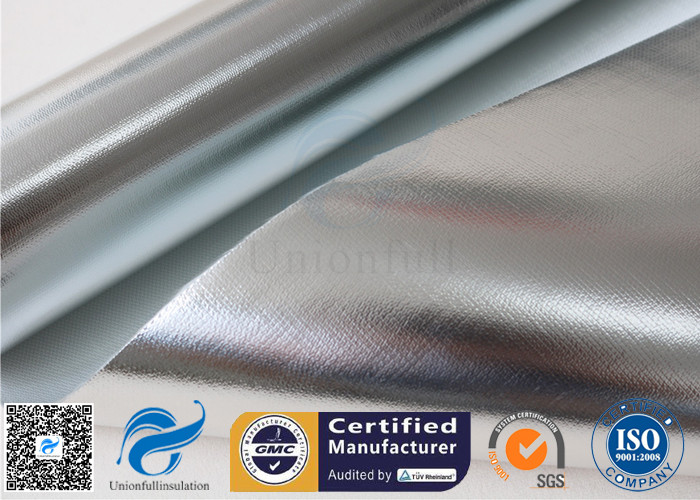

Heat Reflective Silver Coated Fabric 0.43MM 480G Aluminium Foil Fiberglass Cloth
Silver coated fabric is a basic fiberglass cloth laminated with aluminium foil by special high temperature adhersive. Basic cloth of 0.43mm silver coated fabric is 430gsm fiberglass cloth in satin weave type. Aluminium foil thickness can be 7U, 18U, 25U and 50U. The total weight per square meter of silver coated fabric is 480g. It is heat resistant, heat reflective, corrosion resistant and anti chemical agents.
Fiber glass fabric can be used at temperatures ranging from -100° F to 1022° F. And the special adhersive can be used below 300℃. Heat reflective silver coated fiberglass fabric is widely used for thermal insulation materials in many fields.
Data Sheet
Material | Aluminium Foil Fiberglass Fabric | ||
Weave | 4H Satin | ||
Yarn Type | EC9 33 2X2 | ||
Weight | 480g/m2 | ||
Thickness | 0.43 mm | ||
Aluminium Foil | 7micron/18micron/25micron(50 Max) | ||
Tensile Strength (N/5cm) |
6000/4500 | ||
Width | 1000MM, 1270MM | ||
Temperature |
Basic fiberglass cloth: 550℃ Adhersive: 300℃ |
