Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm

Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm
Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm
Basic Information
Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732
Minimum Order Quantity: 500 meters
Price: $2.3--$3.85/m2
Packaging Details: 50m one roll
Delivery Time: 16 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 Square Meters Per Day
Get Best Price Contact Now
Basic: 430gsm Fiberglass Cloth Weight Per Unit: 480g
Thickness: 0.43mm Standard Width: 1000MM
Thread Count: 19.6/11.5 Foil Thickness: 7U To 50U
Highlight:

silver plated fabric

,

carbon fiber fabric

Silver Coated Fabric Heat Reflective Aluminium Foil Fibreglass Cloth 480gsm




Silver coated fabric is basic fiberglass fabric laminated with aluminium foil by a special high temperature adhersive. This 0.43mm common used specification, basic cloth is 430gsm satin weave fiber glass cloth. Aluminium foil thickness can be 7U, 18U, 25U and 50U. The total weight per square meter is 480g. Thickness is 0.43mm.

This base fiberglass fabric can withstand temperatures ranging from -100° F to 1022° F. And the aluminiul foil is able to be used below 1220°F. The special adhersive will melt above 300℃.

This reflective silver coated fabric is widely used for thermal insulation materials. It is fire resistant, heat reflective, chemical corrosion resistant.



Data Sheet



Material Aluminium Foil Fiberglass Fabric
Weave 4H Satin
Yarn Type EC9 33 2X2
Weight 480g/m2
Thickness 0.43 mm
Aluminium Foil 7micron/18micron/25micron(50 Max)

Tensile Strength, N/5cm

 6000/4500
Width 1000MM, 1270MM
Temperature

Basic fiberglass cloth: 550℃

Adhersive: 300℃



Features



  1. Heat Reflective
  2. Waterproof
  3. Durable, tear resistant
  4. Anti chemical agents
  5. Electrical Insulation


Application


  • Hot work protection
  • Gas, oil pipe warp
  • Removable insulation jacket
  • Safety protective wear
  • Automotive engine heat
  • Construction
  • Automotive industry

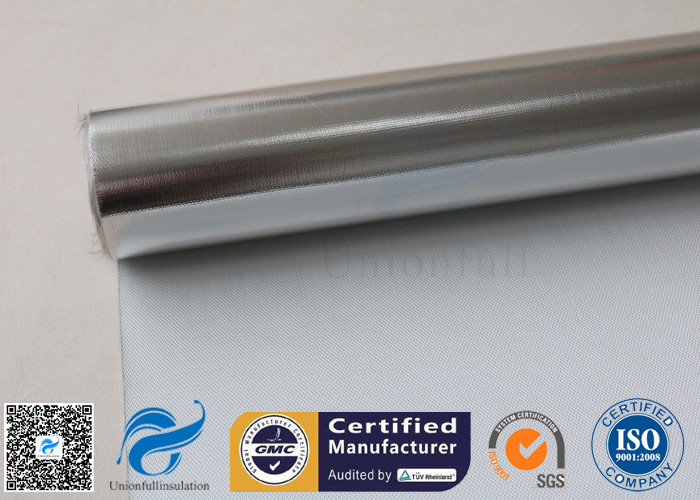

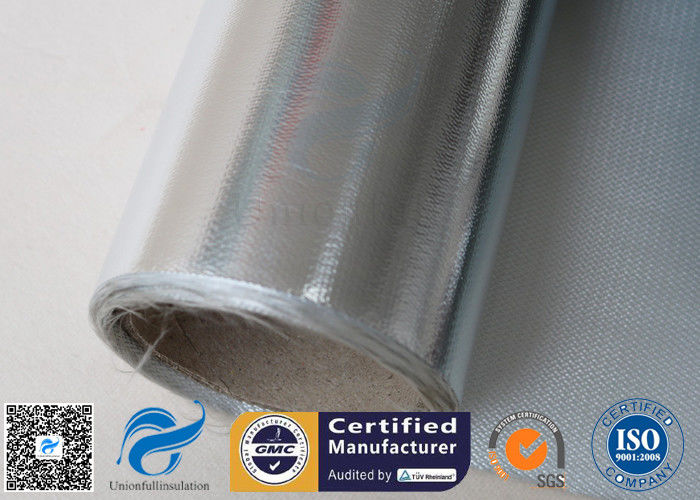

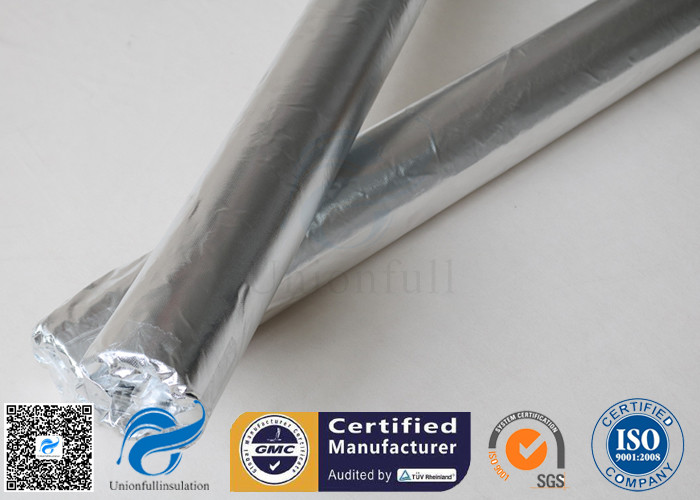

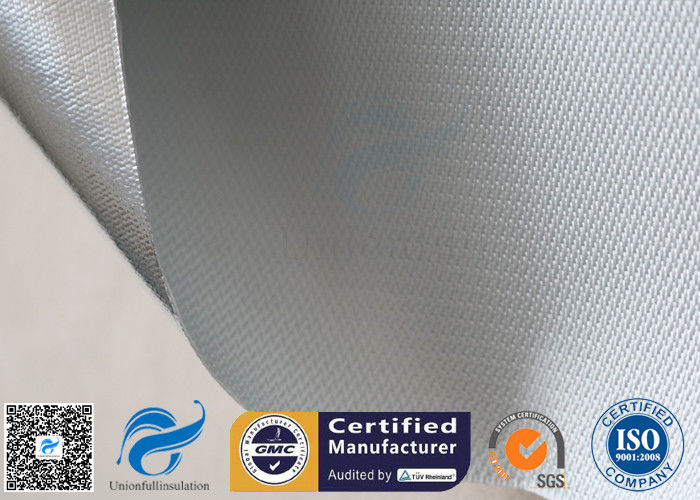

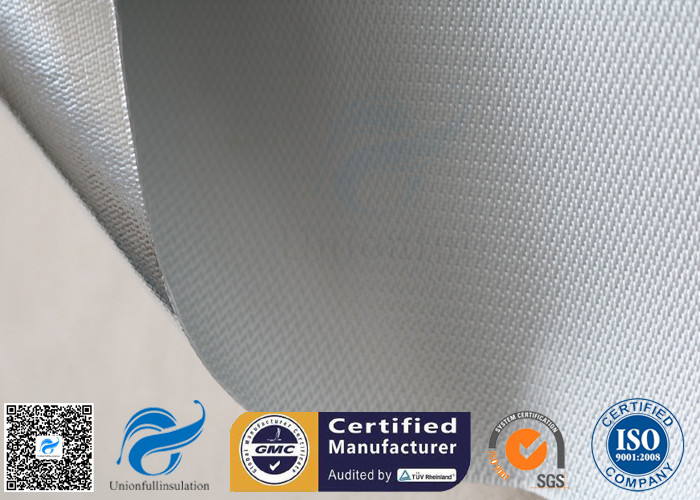

Picture:





 Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm 0Fire Resistant Silver Coated Fabric Aluminium Foil Fibreglass Cloth 480gsm 0.43mm 1
