Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPSE-8732D75 |
Minimum Order Quantity: | 500 Meters |
Price: | $2.85-3.40/ Square Meter |
Packaging Details: | 50 meters per roll with poly bag |
Delivery Time: | 20 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 50,000m2 one day |
Material: | Fiber Glass | Treatment: | Silicone, 75/75 |
---|---|---|---|
Thickness: | 0.55mm | Total Weight: | 580g/m2 |
Weave: | Satin Weave | Common Width: | 100cm |
High Light: | silicone coated glass cloth,silicone coated glass fabric |
0.55mm Silicone Coated Fiberglass Fabric 580gsm Thermal Insulation Jacket Cloth
This silicone coated fiberglass fabric is weighed at 580g/m2, its basic fabric is 430gsm fiberglass cloth which is woven in satin weaving type. Fiberglass fabric is fire resistant and durable material, when coated with 75g/m2 grey silicone on each side, this fabric owns more properties such as electrical insulation and abrasion resistance. Basic cloth can withstand heat from -50 tob 550℃. And the silicone coating can be used below 260℃.
Silicone coated fiberglass fabric has features of heat insualtion, electrical insulation, stable physical properties, anti chemical agents and durability. This silicone coated fiberglass fabric is widely used for industrical insulation products such as fire blanket, welding blanket, fabric expansion joints and removable heat insulation jacket.
Item | Silicone Coated Fiberglass Fabric |
Yarn | E-glass |
Weave | Satin |
Density(per cm) | 20/11 |
Total Weight | 580g/m2 |
Thickness | 0.55mm |
Width | 100CM |
Temperature |
Silicone Coating below 260℃ Fiberglass below 550℃ |
Properties:
Application:

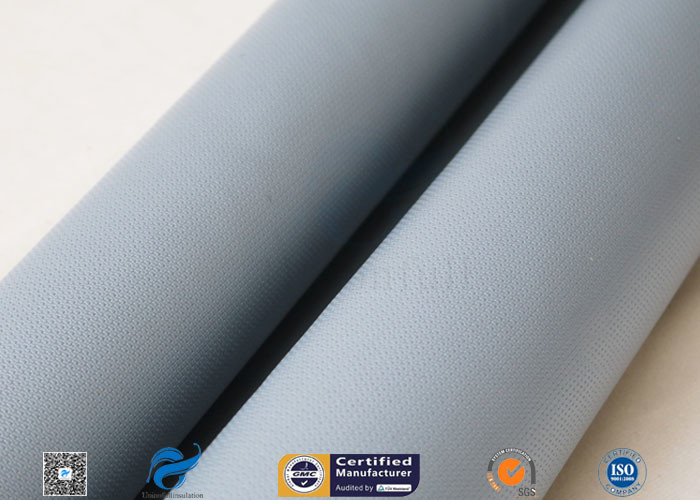

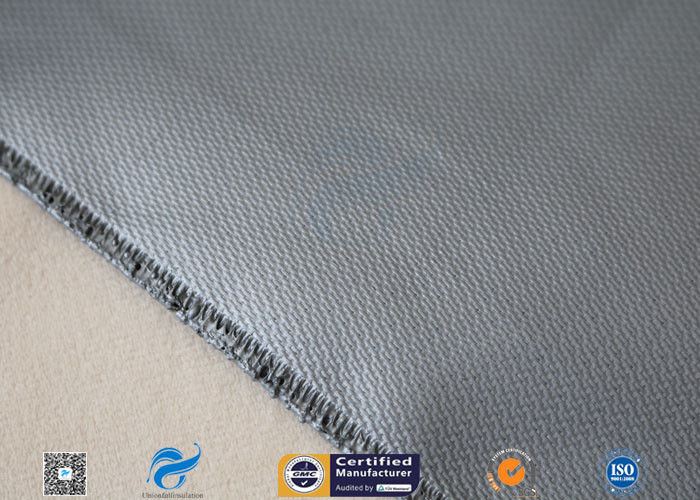

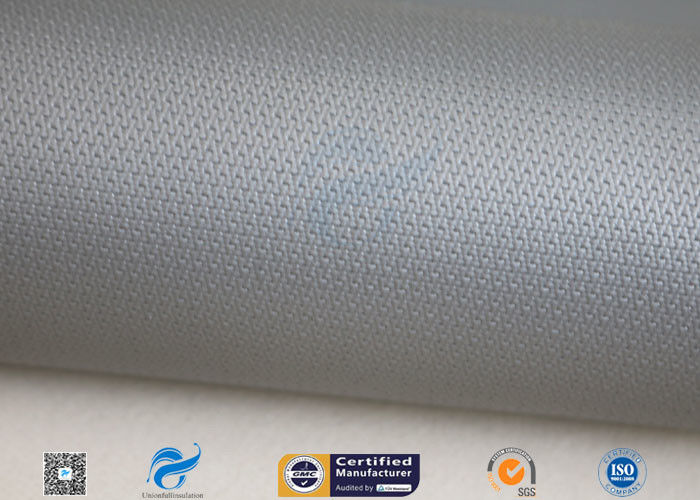

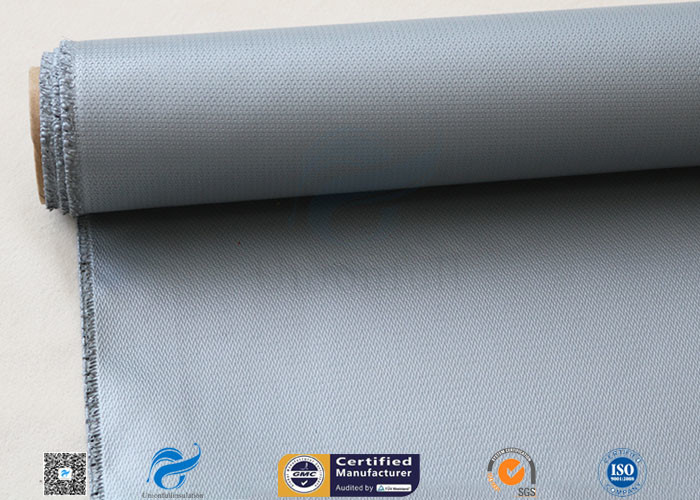

Pictures:
