15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation

China 15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation supplier
15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation supplier 15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation supplier 15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation supplier 15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation supplier

Large Image :  15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732D50

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ M2
Packaging Details: 50 meters one roll
Delivery Time: 20 working days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 m2 per day
Contact Now
Detailed Product Description
Basic Cloth: 430gsm Coating: Blue Silicone
Weight: 530g/m2 Width: 1.55M
Temperature: Below 260℃ Roll Length: 50M

15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation


Blue silicone coated fiberglass fabric is coating basic fiberglass cloth in satin(cross twill/break twill) weaving with 50g/m2 silicone on both two sides. It is coated with blue color silicone and the total weight is 530g/m2. Fiberglass cloth can withstand heat below 550℃. And the blue silicone can only be used below 260℃.

Fiberglass cloth is high strength, durable and fire resistant. Silicone coating improve its abrasion resistance, chemical resis and electrical insulation. Based on the features of fiberglass fabric and silicone, the blue silicone coated fabric is used for thermal insulation/electrical insulation blanket, fire curtain, welding blanket and flexible expansion joints.


Specification

Item Silicone Coated Fiberglass Fabric
Material Fiberglass Cloth
Weaving Satin Weave
End(per cm) 20/11
Weight per m2 530g/m2
Thickness 0.5mm
Width 155cm
Temperature

Silicone Coating below 260℃



Feature:


  • Heat/fire resistant
  • Electrical insulation
  • High tensile strength
  • Chemical acid resistant
  • Abrasion resistant



Detail Pictures

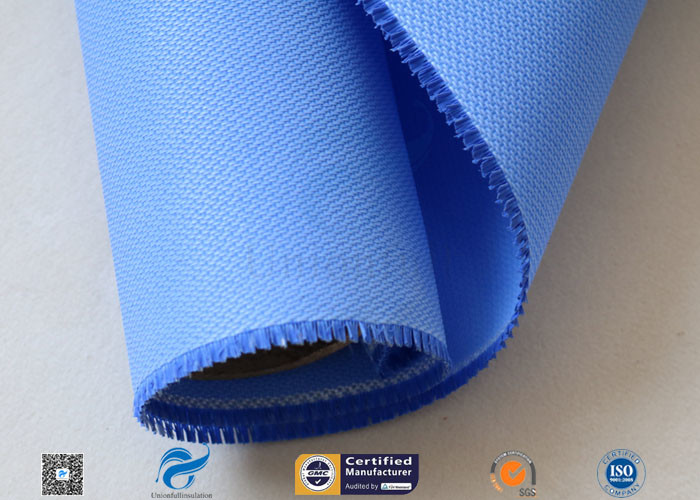

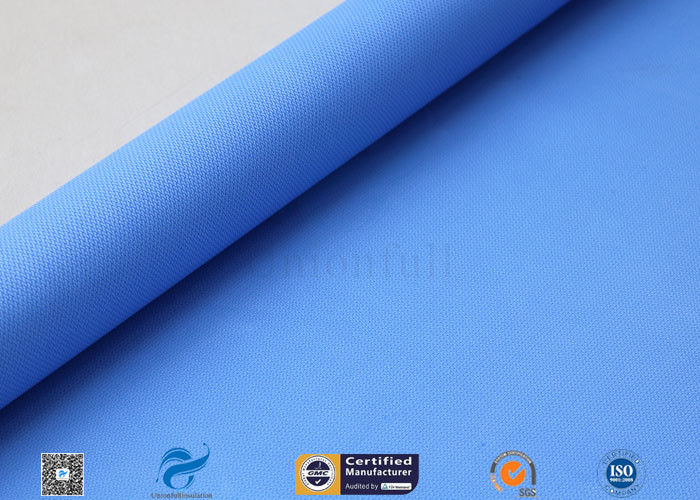

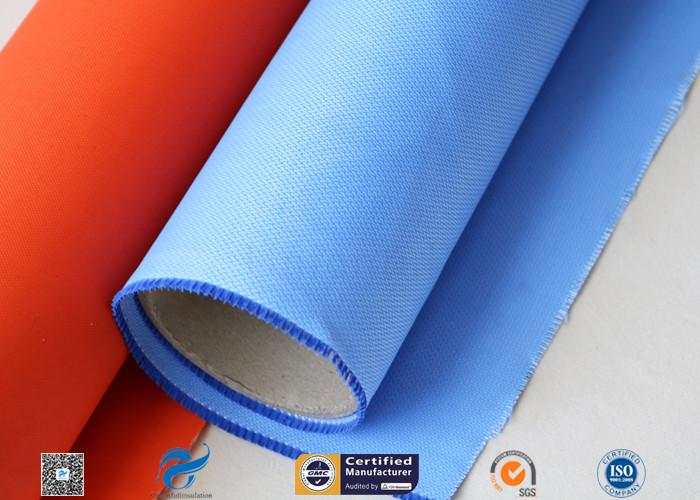

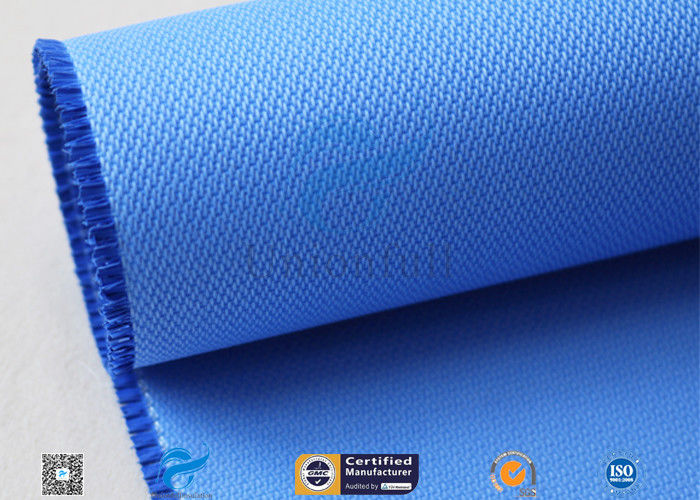

15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation15.6oz Blue Silicone Coated Fiberglass Fabric Generator Electrical Insulation
