520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil

520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil
520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil
Basic Information
Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430AFS-50-100
Minimum Order Quantity: 500 meters
Price: $2.85--$4.35/m2
Packaging Details: One roll with poly bag
Delivery Time: 20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Get Best Price Contact Now
Base Cloth: 3732 Fiberglass Cloth Total Weight: 520g/m2
Total Thickness: 0.5mm Width: 100cm, 127cm
Color: One Side Grey, One Side Silver Feature: Fireproof, Heat Reflective, High Stength
Item Name: 0.5mm Aluminium Foil/Silicone Coated Fibreglass Fabric For Heat Protection Keyword: Fiberglass Cloth, Aluminium Foil Fiberglass Fabric
Highlight:

carbon fiber fabric

,

silver carbon fiber

520g One Side Silicone One Side Aluminium Foil Silver Coated Fiberglass Fabric



This two side coated fiberglass fabric is made of 430g/m2 fiberglass cloth which is laminated with a layer of aluminium foil and coat grey silicone on another side. Total weight is 520g/m2 and the thickness is 0.5mm.



The base fiberglass fabric is able to withstand a temperature from -50 to 550℃. And the aliminium foil should be used below 660℃. But the high temeperature adhersive will melt above 300℃. For another side silicone coating can be used below 260℃.



This one side aluminium foil one sidee silicone coated fiberglass fabric is used for thermal insulation and heat reflective purpose. It is fire resistant, chemical corrosion resistant, electrical insulation and sound absorbability. Also, the aluminium foil side is waterproof.



Data Sheet



Material Aluminium Foil/Silicone Fiberglass Fabric
Weave Satin Weave
Yarn Tex Warp/Weft EC9 33 2X2 / EC9 33 2X2
Total Weight 520 g/m2
Thickness 0.5mm
Thickness Of Aluminium Foil 7micron/18micron/25micron

Tensile

Strength

 Warp 6000 N/5cm
Weft 4500 N/5cm
Width 100cm, 127cm
Service Temperature

Fibre Glass Cloth: 550℃

Adhersive, Silicone coating: 300℃





Features:



  1. Heat Reflective
  2. Abrasion Resistant
  3. Waterproof
  4. Durable, Tear Resistant
  5. Chemical Corrosion Resistant
  6. Electrical Insulation



Application



  • Hot Work Protective Clothing
  • Gas and Liquid Euipment Coverings
  • Removable Thermal Insulations
  • Fire Curtains/Blankets
  • Heat Containment
  • Construction
  • Chemical Processing
  • Automotive Industry



Pictures:

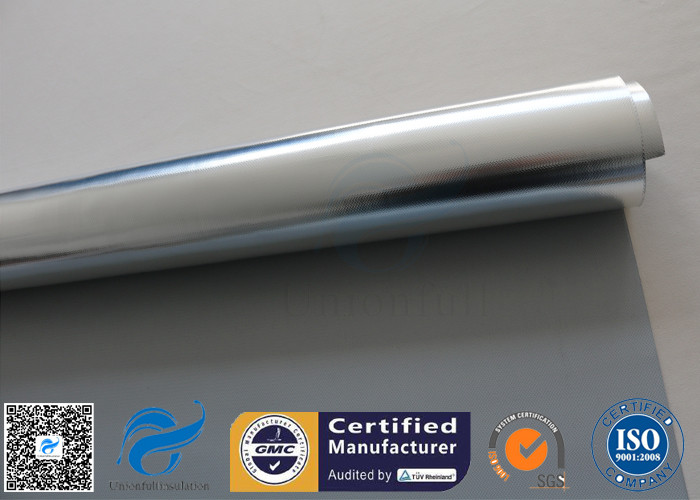

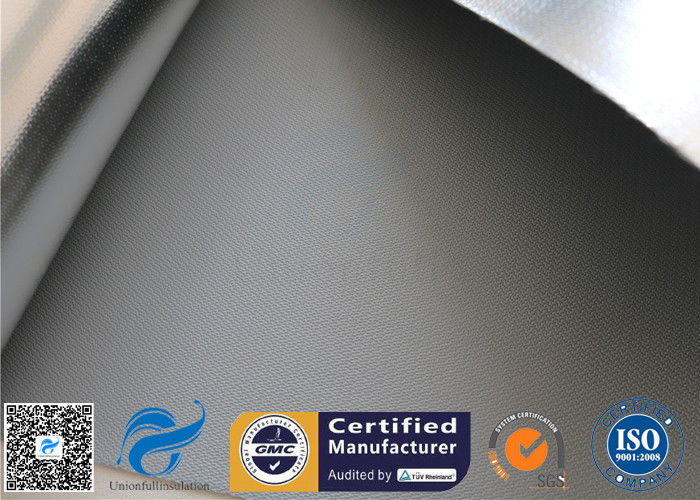

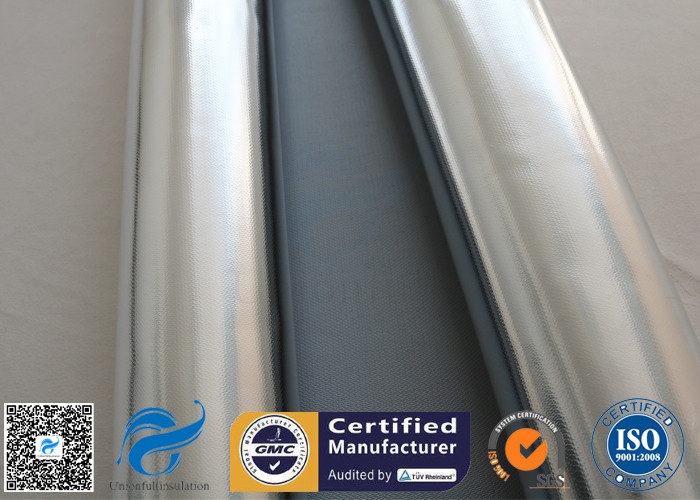

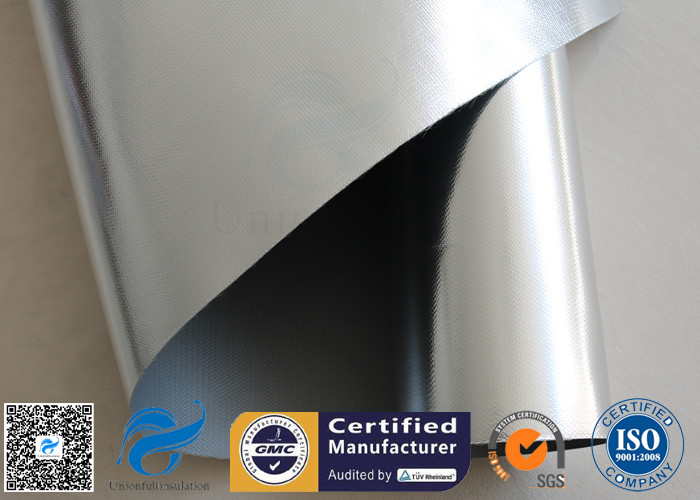

520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 0520g Silver Coated Fiberglass Fabric One Side Silicone One Side Aluminium Foil 1
