360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain

360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain
360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8628D80
Minimum Order Quantity: 500 Meters
Price: $2.6-3.50/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 meters per day
Get Best Price Contact Now
Base: 200g Fiberglass Fabric Treatment: Silicone, 80/80
Weaving: Plain Weight: 360gsm
Width: 1000mm Application: Heat Protection
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

360GSM Silicone Coated Fiberglass Fabric For Hot Air Tunnel Curtain




Silicone coated fiberglass fabric is a heat resistant cloth for engineering thermal insulation. It is woven from e-glass fiberglass yarns in plain weave and the woven fabric is coated with silicone on both two sides. Coating is 80g/m2 per side so the total weight is 360gsm.



Fiberglass cloth can withstand 550degree Celsius and the silicone coating is able to be used below 260℃. According to the features of silicone coated fiberglass fabric, it is always used for welding or fire blanket, fire curtains, expansion joints, removable thermal insualtion jackets.


Specification Of JT8200SG-D80-100

Item Silicone Coated Fiberglass Fabric
Material Fiber Glass
Weave Plain Weave
Warp Density 17.3 Ends/CM
Weft Density 13 Ends/CM
Mass Per Unit 360gsm
Thickness 0.35mm
Width 100cm
Temperature

Silicone Coating below 260℃


Properties:


  • Fire resistant
  • Heat insulation
  • Durable
  • Corrosion resistance
  • Electric insulation


Application:


  1. Removable thermal insulation exhaust blanket
  2. Fire doors, heat insulation curtains
  3. Fabric expansion joint
  4. Electrical insulation cover
  5. Engineering thermal insulation
  6. Hot air tunnel curtains



Pictures:

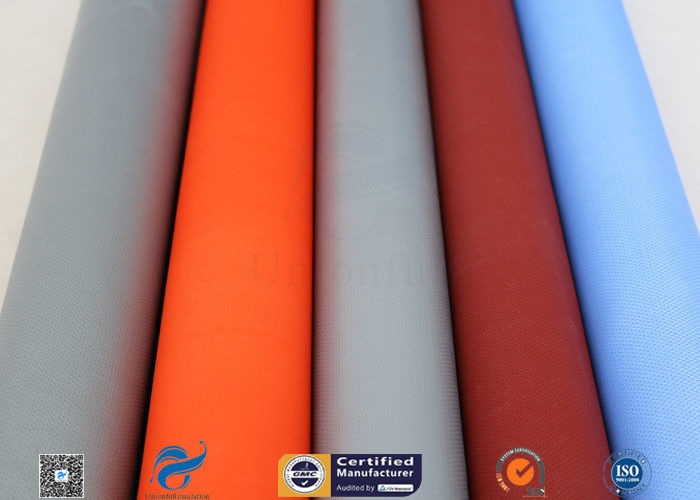

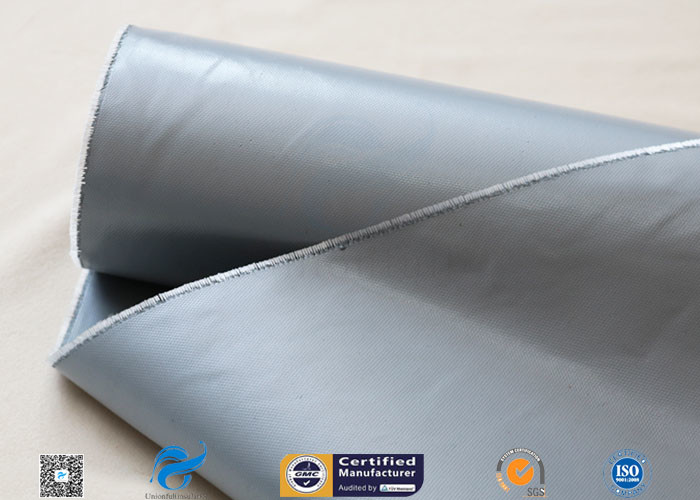

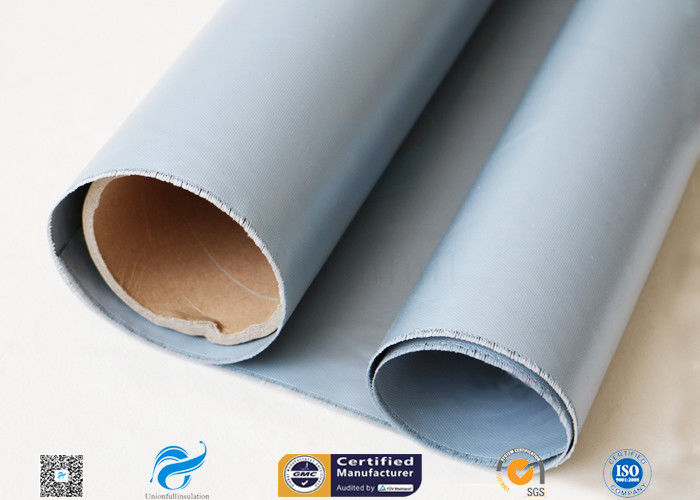

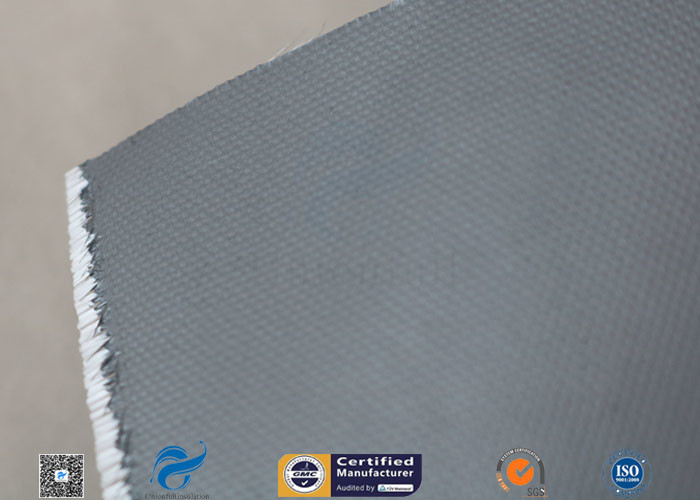

360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 0



360GSM Plain weaving silicone coated fiberglass cloth For Hot Air Tunnel Curtain 1
