39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant

China 39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant supplier
39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant supplier 39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant supplier 39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant supplier 39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant supplier

Large Image :  39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8200W-20-100

Payment & Shipping Terms:

Minimum Order Quantity: 100meters
Price: $0.95--1.35/m2
Packaging Details: 100m one roll in poly bag, carton
Delivery Time: 2 Weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100,000 Square Meters Per Day
Contact Now
Detailed Product Description
Yarn: E Glass Weaving: Plain
Weight: 195gsm Thickness: 0.2mm
Common Width: 39 Inches End: 12/8

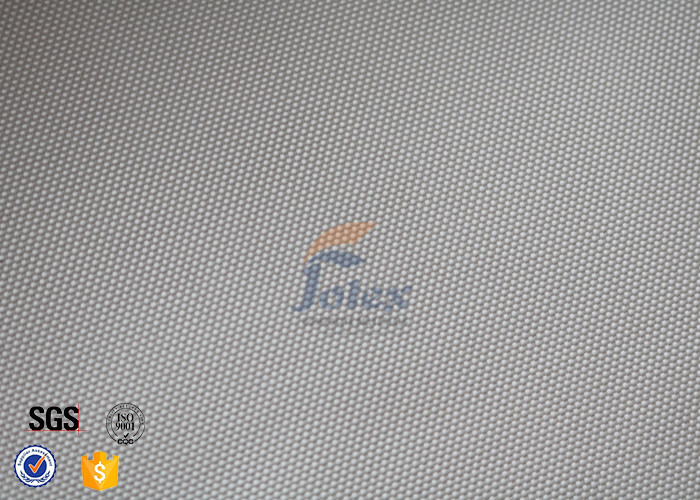

39" Fiberglass Fabric Plain Weave E Glass Fiber Cloth Heat Resistant



3020 fiberglass cloth a 0.2mm fiber glass fabric which is woven from e-glass high strength yarns in plain weave. This fabric is weighed at 200g/m2. It can be used at a temperature below 550℃. Based on its durability, heat resistance but light weight, this 0.2mm fabric is widely used in many industries fields.


Plain weave fabric is woven with the warp yarns and weft yarns forming a simple criss-cross pattern. It is a firm and stable structure with uniform strength in all surface directions. Plain weave is suitable for large flat surfaces covering.

Data Sheet Of 3020 Fiberglass Cloth

Item No. 3020
Description E-glass Cloth
Weave Plain Weave
Yarn Type Warp G150 1/2 2.5S
Weft G150 1/2 2.5S
Mass Per Unit Area 195g/m2
Thickness 0.2 mm
Thread Count Warp 12 per cm
Weft 8 per cm
Temperature ≤550℃





Properties:



  • Heat resistant, fireproof
  • Durable, high strength
  • Easily wet out, good mobility in most resins
  • Stable physical/chemistry properties
  • No shrink under heating



Application:



  • Base cloth for coating
  • Thermal applications
  • Aircraft, automobiles
  • Boat, surfboard repair
  • Bath tubs and enclosures
  • Tanks/swimming pools
  • Wire covering
