7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting

China 7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting supplier
7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting supplier 7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting supplier 7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting supplier 7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting supplier

Large Image :  7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8200PG-D40-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $0.85--$1.35/Sqaure Meter
Packaging Details: One roll with poly bag, then carton
Delivery Time: 18 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 square meters per day
Contact Now
Detailed Product Description
Features: Waterproof, Heat Resistant, Durable Base Cloth: 200g/m2
Coating: Polyvinyl Chloride Total Weight: 200g/m2+40g+40g
Thickness: 0.25mm Width: 100cm

Waterproofing 7628 PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting



Basic cloth of this grey PVC coated fiberglass fabric is 7628 fabric. It is a king of electronic cloth which is weighed at 200g/m2. Totally weight of this fabric is 280g/m2 including 40g/m2 polyvinyl chloride on both two sides. PVC coating makes the surface of fiber glass smooth and waterproof. What's more, PVC coating is waterproof and fireproof so that it is used widely in many industrial fields.



PVC coated fiberglass cloth combines the fire resistance of fiber glass cloth and the waterproofing of PVC coating.  The coated fabric has a lot of propeties at the same time such as waterproofing, thermal insulation, anti chemical agent, corrosion resistance and fire protection.



PVC coated fiberglass fabric has been used in sports products before, such as surfboards, boats and yachts and other water relevant products. Now this waterproof material is also widely used in auto/train/ship shield, open yard cover, industrial and some other protective cover. PVC coated fiberglass fabric has longer using life and higher tensile strength than common awning fabric.



Specification:



Composition Glass Fibers
Coating Polyvinyl chloride, 40/40
Total Weight 280gsm
Width 100, 127cm, 155cm
MOQ No MOQ for common stock color and weight
Serve Temperature

Base Cloth: below 550℃

Coating: below 260℃





Application:



  • Fire resistant awning materials
  • Vehicle industrical covers
  • Welding/fire blanket
  • Sparks protection protective cloth,
  • Pipe waterproof and thermal insulation blanket
  • Piping flexibility and sealing products
  • Fabric air exhuast ducting

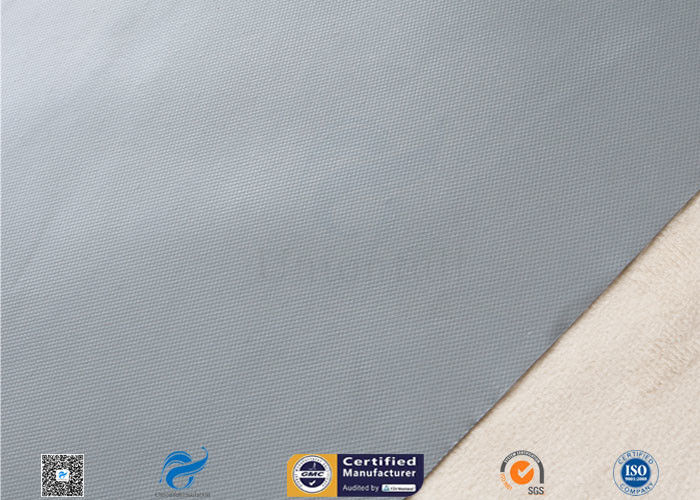

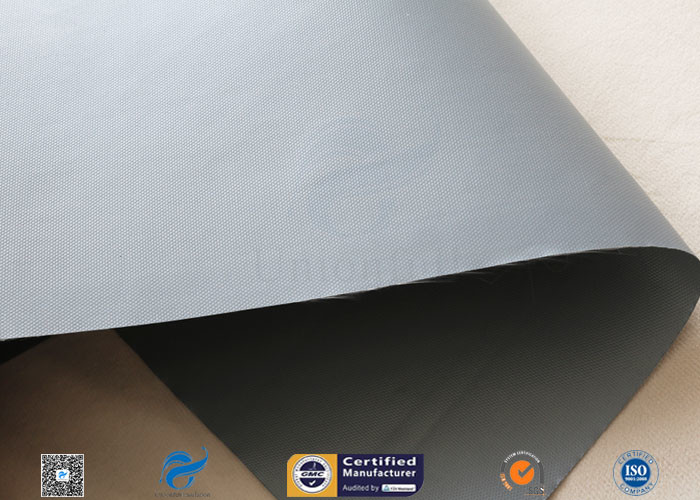

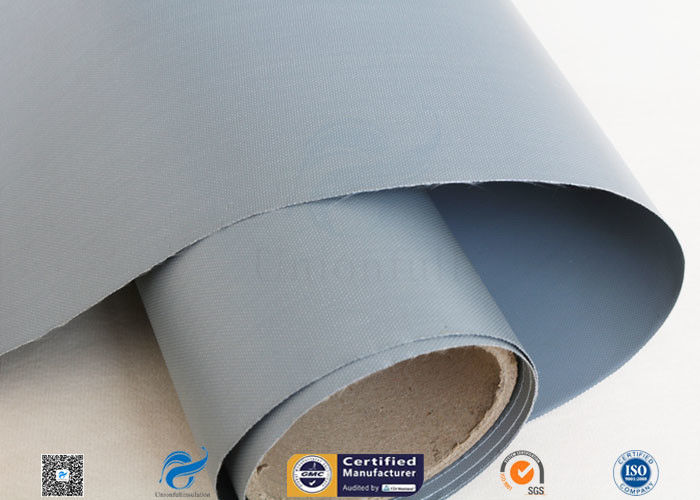

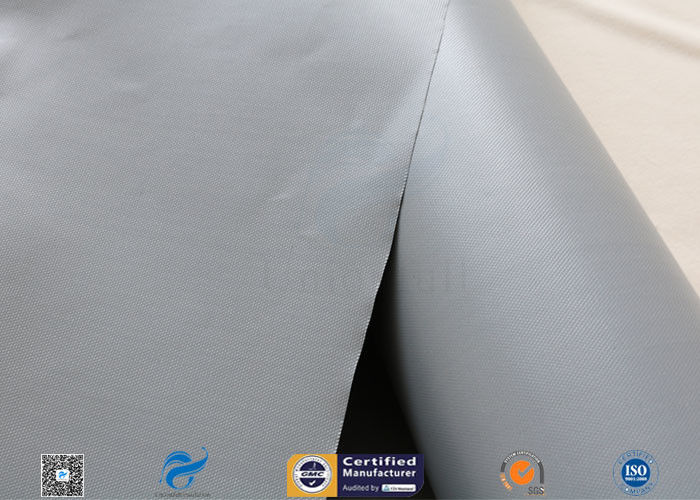

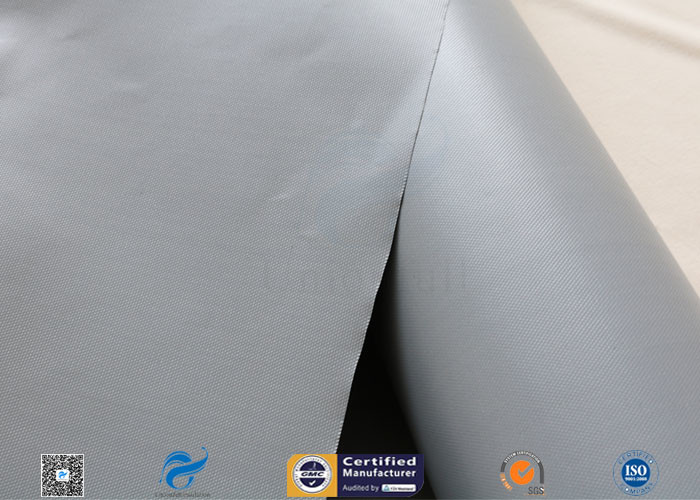

Picture:

7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting7628 0.25mm PVC Coated Fiberglass Cloth For Flexible Air Fabric Ducting
