7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth

China 7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth supplier
7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth supplier 7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth supplier 7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth supplier 7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth supplier

Large Image :  7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8628D100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $0.85--$1.35/Sqaure Meter
Packaging Details: One roll with poly bag, then carton
Delivery Time: 18 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 square meters per day
Contact Now
Detailed Product Description
Features: Waterproof, Heat Resistant Base Cloth: 200g/m2
Coating: Grey Polyvinyl Chloride Total Weight: 280g/m2
Thickness: 0.25mm Width: 127cm
Type: E-glass Glass Fiber Keywords: Pvc Coated Fiberglass Fabric, Pvc Fabric Duct

7628 Grey Waterproof PVC Coated Fiberglass Fabric Duct Glass Fiber Cloth



PVC coated fiberglass fabric is made from 200g/m2 7628 fiber glass basic cloth. And then it was coated with 40g/m2 waterproof/fireproof polyvinyl chloride coating on two sides. Fiber glass fabric is a great material performing good on both fireproofing and waterproofing. PVC coating makes the surface of high strength fiberglass fabric be more smooth and waterproofing. The total weight of this 7628 pvc coated fiberglass fabric is 280g/m2 and total thickness is 0.25mm.



PVC coated fiberglass cloth is a coated fiberglass fabric with many good features, such as fire resistance, waterproofing, cold protection and anti chemical corrosion, abrasion resistance, smooth surface, washable, good capability of heat maintaining.





PVC coated fiberglass fabric has been used widely in sports euipment field before, such as surfboards, boats and yachts and so on. Now this waterproof fiberglass material is widely used in auto, train, ship cover, open yard cover, industrial and some other fields. PVC coated fiberglass fabric longer working life and better tensile strength than ordinary awning fabric materials.



Specification:

Composition Glass Fibers
Coating Grey polyvinyl chloride coating(40/40)
Weight 280gsm
Width 100, 127cm, 155cm
MOQ No MOQ for common stock color and weight
Serve Temperature

Base Cloth: below 550℃

Coating: below 260℃





Application:

  • High strength awning materials
  • Welding protective cloth, used as a welding defender
  • Heat protection blanket, foundry sparks protection.
  • In motor vehicle industry,
  • Waterproof and thermal insulation covers for piping outside.
  • Used for chemical industry, auto-manufacture, piping flexibility and sealing industry.
  • PVC coating can be Grey, Black, Brown, Gold, Natural White, Orange, Blue, etc. Please inform the pantone color



The basic fabric of this PVC coated fiberglass cloth is 7628 e-glass electronic fiberglass cloth. It is usually used for copper clad laminate. However, because of its light weight and various combinations with different resins, 7628 is not only used for electrical application now, but also widely used in other industrial fields. For example, it can be used for surfboard building too.



All in all, applications of this glass fiber cloth are Sports Products like Surfboard/Snowboard Building, Coating Fabric, Fire Curtain/Blanket, Electrical Appliances, Industrial and Packing Use.



Item

Count(cm)

Yarn Type Thickness Weight Common Width
7628 17.3/13

G75 1/0 0.7Z

G75 1/0 0.7Z

0.2mm 200gsm 100-155cm

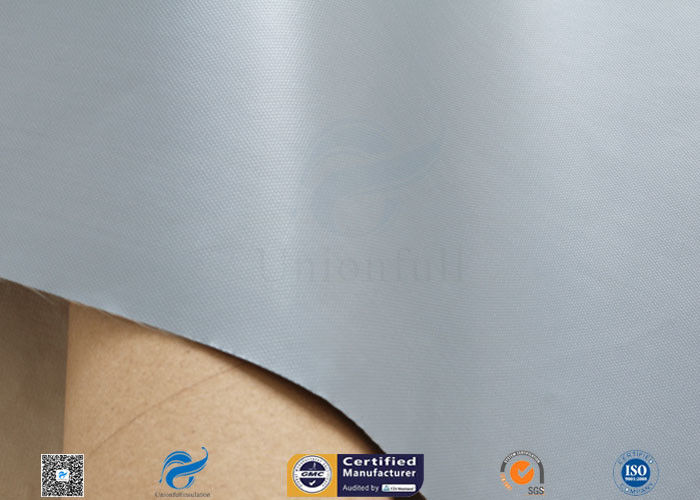

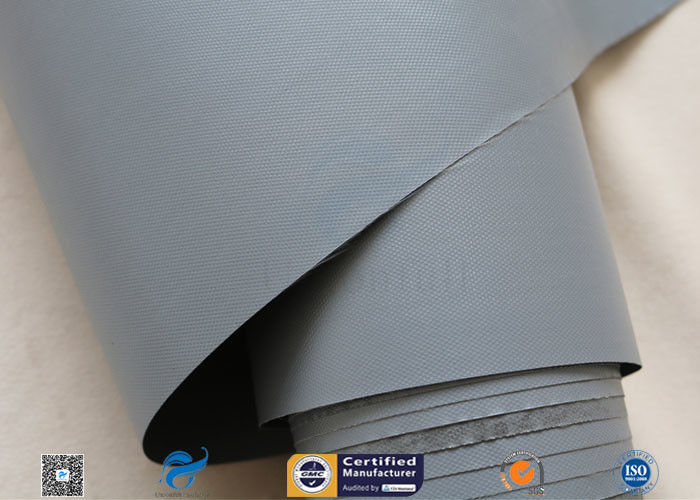

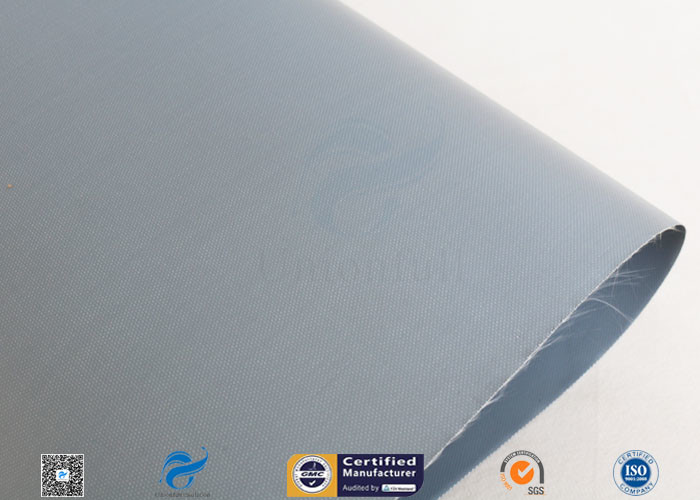

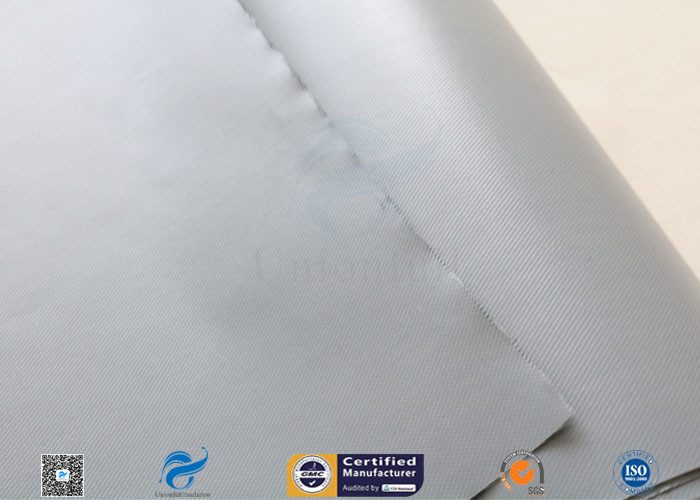

Picture:

7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth7628 Grey Waterproof PVC Coated Fiberglass Cloth Fabric Duct Glass Fiber Cloth
