3732 430gsm 0.4mm Fiberglass Fabric Cloth Satin Cross Twill Weave E Glass

China 3732 430gsm 0.4mm Fiberglass Fabric Cloth Satin Cross Twill Weave E Glass supplier
3732 430gsm 0.4mm Fiberglass Fabric Cloth Satin Cross Twill Weave E Glass supplier 3732 430gsm 0.4mm Fiberglass Fabric Cloth Satin Cross Twill Weave E Glass supplier 3732 430gsm 0.4mm Fiberglass Fabric Cloth Satin Cross Twill Weave E Glass supplier 3732 430gsm 0.4mm Fiberglass Fabric Cloth Satin Cross Twill Weave E Glass supplier

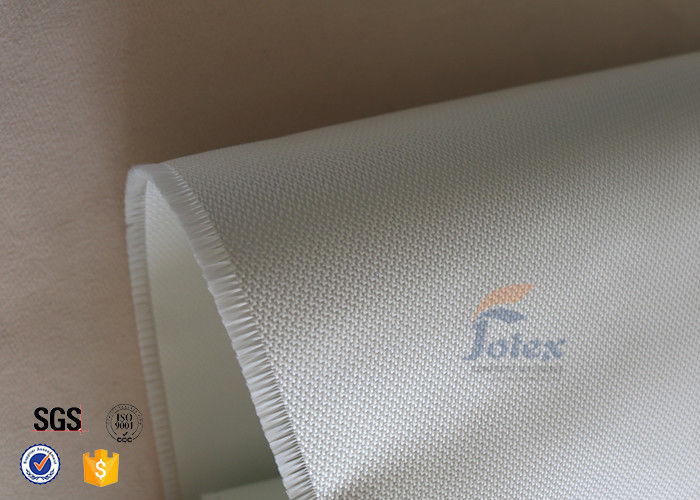

Large Image :  3732 430gsm 0.4mm Fiberglass Fabric Cloth Satin Cross Twill Weave E Glass

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8430W-40-127

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $1.4--$1.55/Square Meter
Packaging Details: 50m/roll in poly bag
Delivery Time: 30 Days after the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 square meters per day
Contact Now
Detailed Product Description
Style: 3732 Fiberglass Cloth Weight: 430gsm
Thickness: 0.4mm Weave: Satin(Cross Twill)
Yarn Type: E-glass Feature: Fireproof, E-Glass, High Strength
Application: Fire Blanket, Welding Protection Keyword: 3732 Fiberglass Fabric Cloth



3732 430gsm 0.4mm Satin Cross Twill Weave E Glass Fiberglass Fabric Cloth



3732 fiber glass cloth is one of industrial fabric which weighs  430g per square meter and 0.4mm thick. Weave type of this 3732 fabric is satin weave, also called cross twill weave or break twill weave. Compared with plain weave, this cross twill weave has higher density. It is also soft and loose structural.



Same as other basic cloth, 3732 fiberglass cloth can withstand 550°C(about 1022°F). Its mass per unit and thickness are suitable for many application such as fire blanket and fire curtain,

thermal Insulation cover(with silicone coating, also called removable exhaust blanket). It also can be used as materials for fireproof bag, fabric air ducts and expansion joints.



Items 3732
Weave Satin/Cross Twill
Yarn (tex) Warp
Weft
G37 1/0 0.7Z
G37 1/0 0.7Z
Thickness 0.43mm
Weight 430g/m²
Thread Count Warp
Weft
19.6/cm
11.5/cm
Tensile Strength Warp
Weft
6000N/5cm
4500N/5cm
Loss On Ignition 0.5%
Temperature Below 550℃





Properties:



  1. Anti chemical agents
  2. Abrasion corrosion resistant
  3. High strength in both warp and weft direction
  4. Fire resistant, heat insulation
  5. Electrical insulation
  6. Good soak and bonding with varieties resin, can be coated by Silicone/PTFE/PVC easliy
