7628 0.2mm Electronic Fiberglass Fabric / E - Glass Thin Fiberglass Cloth

China 7628 0.2mm Electronic Fiberglass Fabric / E - Glass Thin Fiberglass Cloth supplier
7628 0.2mm Electronic Fiberglass Fabric / E - Glass Thin Fiberglass Cloth supplier 7628 0.2mm Electronic Fiberglass Fabric / E - Glass Thin Fiberglass Cloth supplier 7628 0.2mm Electronic Fiberglass Fabric / E - Glass Thin Fiberglass Cloth supplier 7628 0.2mm Electronic Fiberglass Fabric / E - Glass Thin Fiberglass Cloth supplier

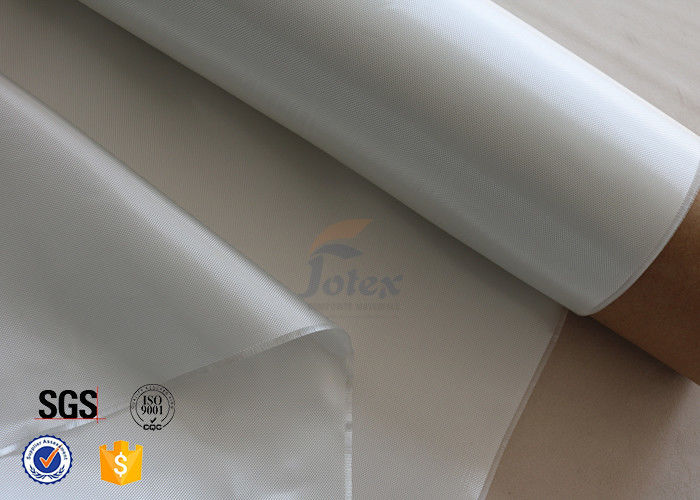

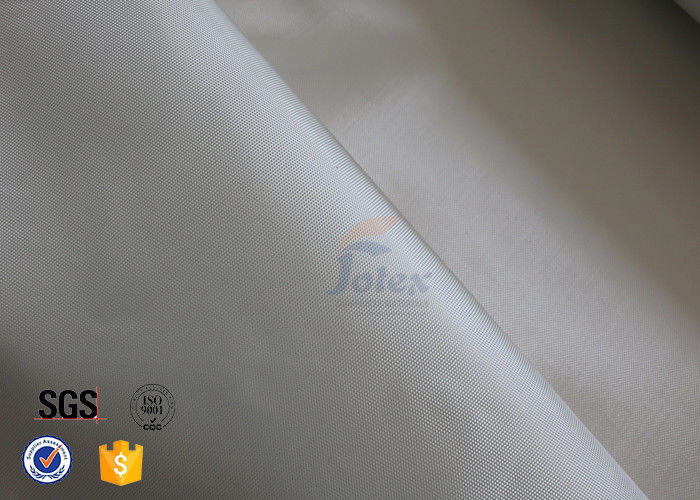

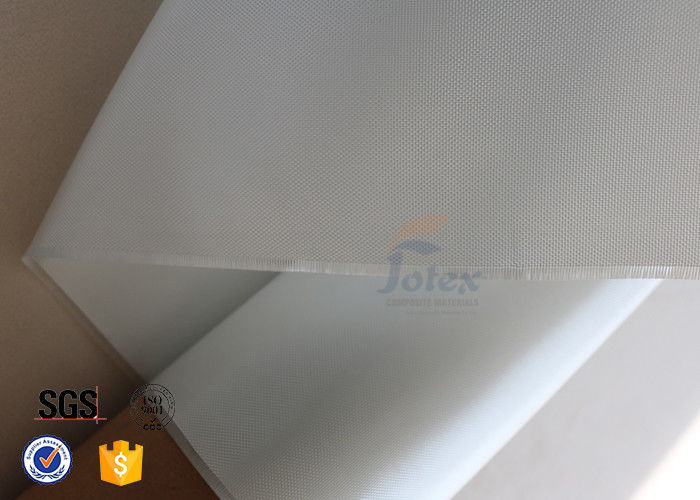

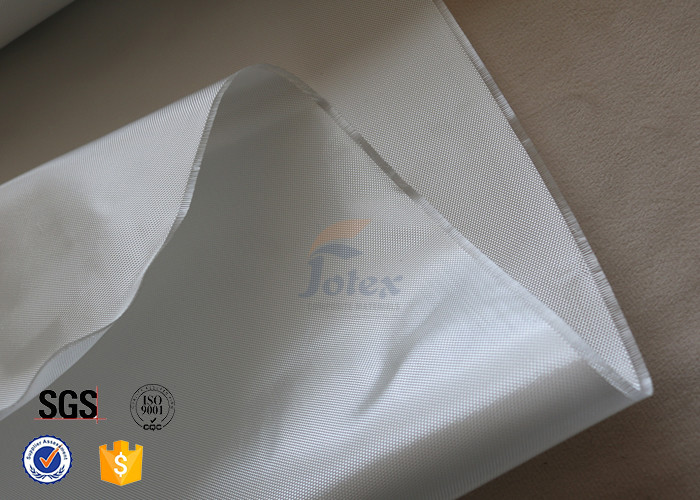

Large Image :  7628 0.2mm Electronic Fiberglass Fabric / E - Glass Thin Fiberglass Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8200W-20-100

Payment & Shipping Terms:

Minimum Order Quantity: 500meters
Price: $0.80--1.35/m2
Packaging Details: 100m one roll in poly bag
Delivery Time: 20 Working Days After Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 150000 Square Meters Per Day
Contact Now
Detailed Product Description
Yarn Type: E-glass Weave: Plain Woven
Weight: 200g/m2 Thickness: 0.2mm
Width: 100cm Roll Length: 100meters
Feature: Light Weight, Clear, Fire Resistant Keywords: 7628 Fiberglass Cloth, Glass Fiber Fabric

7628 0.2mm Electronic Fiberglass Fabric / E-glass Fiber Glass Cloth



7628 fiberglass fabric is a kind of electronic cloth, the product NO. 7628 is also with the serial number of electronic cloth. However, because of its light weight(5.9oz/yd2) and diversified production combinations, it is also used for many other industries application.

It is widely used in Electronics, Electrical Appliances, Support Structure, Industrial, Civilian Plate, Basic Fabric For Coating, Model Aircraft, Sports Equipment, Military Industry and Fire Resistance, Filter, Decoration(after special treatment), Packaging and in other field.

Data Sheet Of 7628 Fiberglass Cloth
Item No. 7628
Description Electronic Fiberglass Fabric
Weave Plain
Yarn Type Warp EC9 68 1X0 ECG 75 1/0
Weft EC9 68 1X0 ECG 75 1/0
Weight 200 g/m 5.90 OZ/YD2
Thickness 0.2 mm 0.008 inch
Thread Count Warp 17.3 per cm 44 per inch
Weft 13 per cm 31 per inch

Tensile

Strength

Warp 438 N/cm 250 lbs/inch
Weft 350 N/cm 200 lbs/inch
LOI <4% <4%
Color White
Service Temperature ≤550℃





Properties:

  • Great aggregative, low static/fuzz
  • Fire resistance, extremely low aberration
  • Easily wet out by resin
  • Good mobility in resin
  • Good physical/chemistry stability
  • Silicone sizing material
  • Or using special designed sizing, harmonious well with basic resins
  • High strength



Application:



  • Copper clad lamination
  • Basic cloth for coating
  • Reinforce plastics and composites
  • Thermal applications
  • Aircraft, automobiles
  • Boat, surfboard building
  • Bbath tubs and enclosures, hot tubs
  • Water tanks, swimming pools
