Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation

China Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation supplier
Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation supplier Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation supplier Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation supplier Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation supplier

Large Image :  Heavy Duty 3784 Fireproof 8HS E Glass Fiberglass Cloth For Thermal Insulation

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8850W-80-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.84--$3.15/Square Meter
Packaging Details: 50m/roll in poly bag
Delivery Time: 35 Days after the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 square meters per day
Contact Now
Detailed Product Description
Style: 3784 Fiberglass Cloth Weight: 850gsm
Thickness: 0.8mm Weave: 8H Satin
Yarn Type: E-glass Feature: Fireproof, Heavy Duty, High Strength
Application: Fire Blanket, Coated Fabric, Thermal Insulation Keyword: 3784 Fiberglass Fabric

Heavy Duty 3784 Fireproof 8HS E Glass Fiber Glass Cloth For Fire Blanket

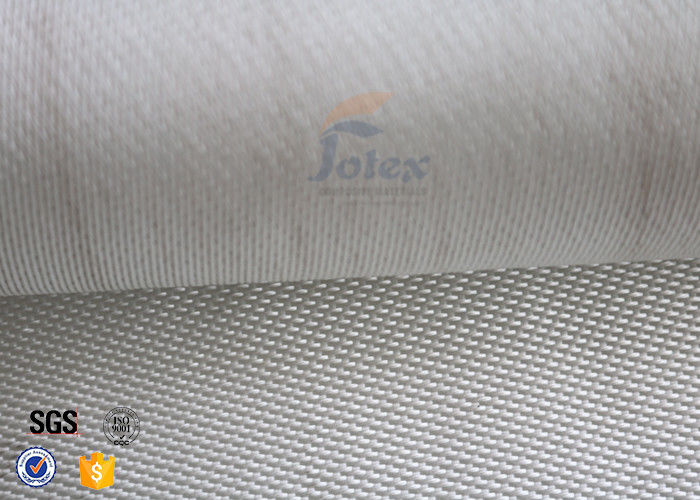

3784 fiber glass cloth is a heavy duty industrial use fabric. It is 850g/m2 and 0.8mm thick. The weave type of this cloth is 8HS satin weave. Different from plain weave, satin weave has higher density, higher intensity with a loose structural weave.



This thick fiberglass cloth is always used in applications including thermal Insulation, welding spark/splash protection, stress relieving, removable insulation exhaust blanket, fire blankets and fire curtain, fabric expansion joint/duct. What's more, if customers need more special purpose or want it to be some peculiarities, can coated this fabric in various ways like PTFE, Polyvinyl Chloride coating, Silicone/PU coating and vermiculite coating.



Items 3784
Weave 8HS Satin
Thickness 0.8±0.08mm 0.031±0.0031inch
Weight 850±44g/m² 26±1.30oz/yd²
Thread Count Warp
Weft
18±1.8/cm
13± 1.3/cm
45.7±4.5/inch
33± 3.3/inch
Tensile Strength Warp
Weft
8000N/5cm
6000N/5cm
888 ibs/inch
666 ibs/inch
Working Temperature Below 550°C





Features:



  1. Chemical corrosion resistance
  2. 8HS weave, strong in both warp and weft direction
  3. Water resistance and fire resistance
  4. Easily impregnated with Silicone/PTFE/PVC gel to be different coating
  5. Excellent electricity insulation



Appplications:



  • Fire Resistance, Economical Insulation: high temperature tolerance performance, glass fiber cloth is the most economic material for fire blankets and welding protection blanket

  • Used for coating of different resin, with effect of supporting and insulation which is widely used in distribution facilities

  • The majority of PTFE/PVC/silicone gel which is combined with fiberglass cloth to form high performance composite materials, it is used in many different fields.











Specification Of Other Fabric:



Item Fabric Count

Weight

(gsm)

Thickness

(mm)

Weave
7628 18*12 200±10 0.2 Plain
3732 18*13 430±10 0.43 Twill
3784 18*12 840±30 0.8 8HS Satin
3788 18*13 1600±40 1.6 8HS Satin
