10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness

China 10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness supplier
10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness supplier 10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness supplier 10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness supplier 10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness supplier

Large Image :  10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8628D100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $0.85--$1.35/Sqaure Meter
Packaging Details: One roll with poly bag, then carton
Delivery Time: 18 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 square meters per day
Contact Now
Detailed Product Description
Features: Waterproof, Heat Resistant Base Cloth: 200g/m2
Coating: Grey Polyvinyl Chloride Total Weight: 360g/m2
Thickness: 0.33mm Width: 100cm
Type: E-glass Glass Fiber Keywords: Pvc Fiberglass Fabric, Glass Fiber Cloth

10.6oz 39" Grey PVC Coated Fiberglass Cloth For Fabric Air Duct



This 360g/m2 PVC coated fiberglass fabric is made of 200g fiberglass basic fabric 7628. And coated with 80g/m2 waterproof/fireproof polyvinyl chloride coating on both side. Fiber glass fabric is a material performing good on fireproofing. PVC coating makes the surface of fiberglass fabric be more smooth and waterproofing.



PVC coated fiber glass cloth is an high strength fabric with many good properties, such as fire resistant, waterproofing, cold protection and chemical corrosion resistant, Smooth surface, Washable, Good capability of heat maintaining.





PVC coated fiberglass fabric has been used commom in sports field before, such as for surfboards, boats and yachts, etc. Now this waterproof fiber glass material is widely used in car, train, ship cover, open yard cover, industrial and in other fields. It has longer working life and higher strength than ordinary awning fabric.



Specification:

Composition Glass Fibers
Coating Grey polyvinyl chloride coating(80/80)
Weight 380gsm
Width 100cm
MOQ No MOQ for common stock color
Serve Temperature

Base Cloth: below 550℃

Coating: below 260℃



Application:

  • Welding protection, covering fabric.
  • Used as a welding defender, heat protection blanket, foundry splash protection.
  • Fire protection cushions, motor vehicle industry, covers for piping outside.
  • Used for aerospace, marine, chemical industry, power plant, auto-manufacture, construction, piping flexibility and sealing industry.
  • PVC coating can be in various colors like Grey, Black, Brown, Gold, Natural White, Orange, Blue, etc. Please inform the pantone color

Basic fabric of this PVC coated fiberglass cloth is 7628 e-glass fiberglass fabric. It is one of the electronic cloth. Because of its light weight and various combinations, 7628 is not only used for electrical application, but common used in other industrial fields too.



This glass fiber cloth is widely used in Sports Products like Surfboard Building, Coating Fabric, Fire Curtain, Electrical Appliances, Industrial and Packing Use.



Style

Count(cm)

Yarn Type Thickness Weight
7628 17.3/13

G75 1/0 0.7Z

G75 1/0 0.7Z

0.2mm 200gsm

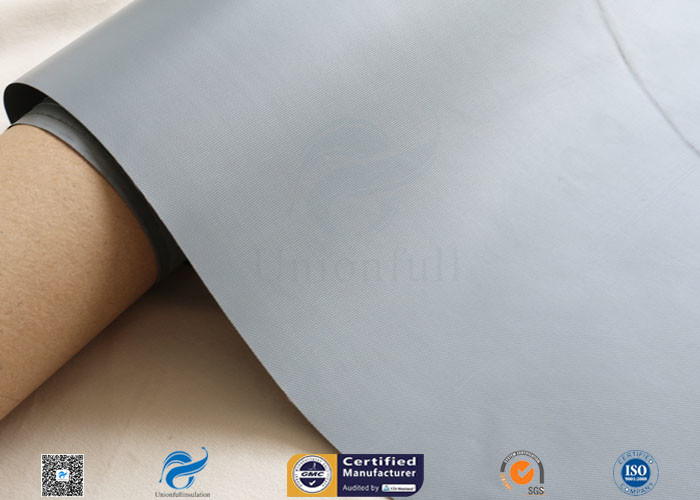

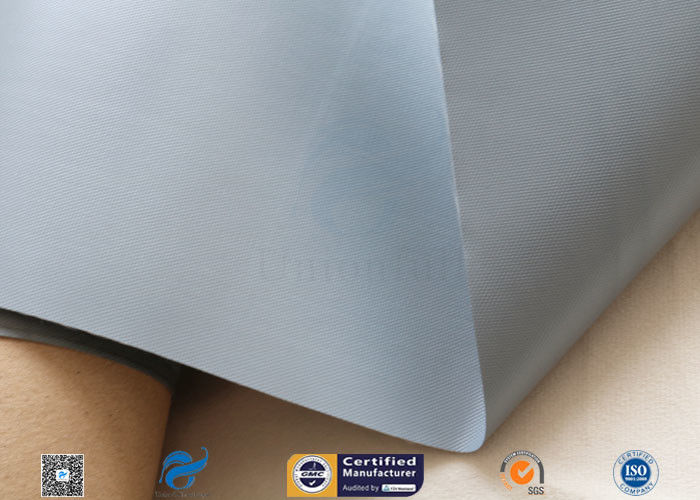

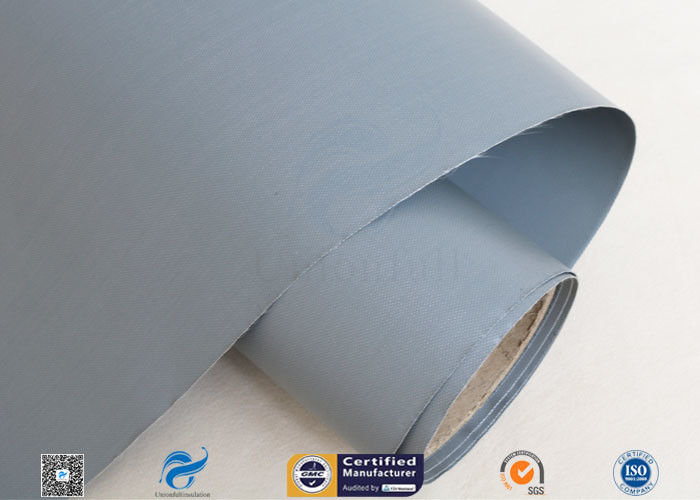

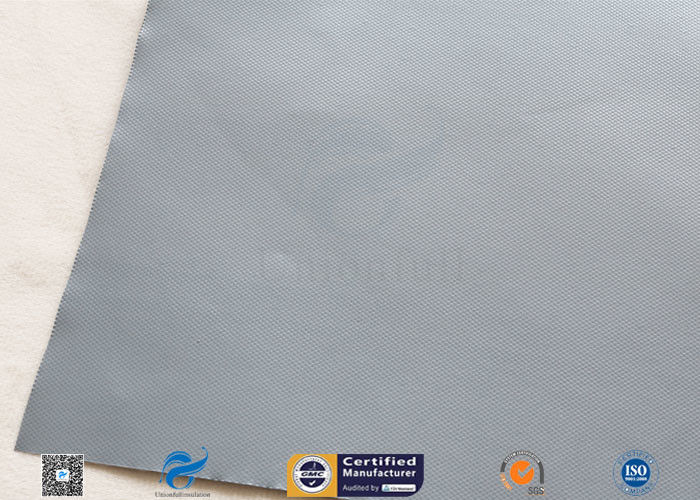

Picture:

10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness10.6oz 39" Grey PVC Coated Fiberglass Fabric For Fabric Air Duct 0.33mm Thickness
