Clear White Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth

China Clear White Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth supplier
Clear White Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth supplier Clear White Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth supplier Clear White Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth supplier Clear White Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth supplier

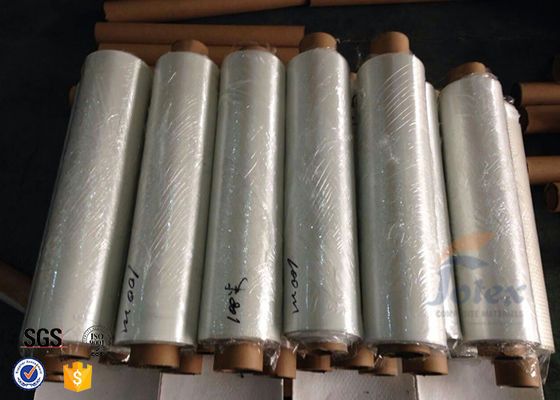

Large Image :  Clear White Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8120W-12-70

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $0.95--1.85/m2
Packaging Details: 500 meters one roll in box
Delivery Time: 20 Working Days After Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 150000 Square Meters Per Day
Contact Now
Detailed Product Description
Cloth Model: 6522 Fiberglass Fabric Weight: 4oz/yd2
Thickness: 0.12mm Width: 70cm
Color: Clear White Yarn Type: E-glass
Keyword: 4oz Fiberglass Fabric, Surfboard Fiber Glass Cloth Feature: Fire Resistant, Durable, High Strength

Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth



Fiberglass woven cloth are woven from yarns of glass filaments. There are two types of glass that are used for Surfboard fabric, E-glass and S-glass. The chemical composition of the glasses is different and yield different properties. E-glass is the most common glass fiber and is produced in huge quantities and is inexpensive. S-glass is produced in smaller quantities and is more expensive but has higher physical strength properties than E-glass. The tensile strength of S-glass is about 50% higher than e glass cloth and it is 25% stiffer in flex. We have found that using S-glass on the decks of boards reduces heel dings and prolongs the life of the board.



Plain Weave:



The plain weave consists of yarns interlaced in an alternating fashion one over and one under every other yarn. The plain weave provides good fabric stability but is generally the least pliable.



Twill Weave:



The twill weave is more pliable than the plain weave and has better drapability while maintaining more fabric stability than a four or eight harness satin weave. The weave pattern is characterized by a diagonal rib created by one warp yarn floating over at least two filling yarns.



Item Weave

Count

(Warp/Fill)

Weight Thickness

Strength

(Warp/Fill)

JT8120W-12-70 Plain 24/22 120g/m2 0.12mm 170/140(lbf/in)





Fiberglass Fabric Has Many Features:

  1. Good performance in chemical corrosion resistance
  2. Plain weave, even thickness and low fuzz
  3. High strength in both warp and weft direction
  4. Easily impregnated with resin, high cohesive strength
  5. E-Grade Fabric has excellent electricity insulation property

surfboard fiberglass cloth also have a finish on them, the finish is there to help the resin bond to the glass fabric and to help it wet out completely. Early fiberglass and foam surfboards were built with existing fiberglass boat fabrics, which were finished with a volan finish. The volan finish produces a "coke bottle" green tint. Modern surfboard fabrics use a silane finish which goes absolutely clear. We usually stock volan fabrics but call for availability. The silane finish that we carry is compatible with both polyester and epoxy resins.





Model Number

Weight(g/m2)

Thickness(mm)

106

24.4

0.033

1080

46.8

0.053

2116

103.8

0.094

7629

210

0.18

7642

227.8

0.254

1037

23

0.027

1067

30.7

0.035

7637

228

0.224

7667

218

0.188

7642-H

285

0.24











Established in 2013, Uionfull Group Ltd is manufacturer of thermal insulation and heat resistant fiberglass fabric, such as silica cloth, silicone/PVC/PTFE coated fiberglass fabric, needle mat and so on.



Our products are used by some of very well known industrial houses in the Petrochemical, Power, Cement, Steel, Chemical, Pharmaceutical, Gas and Process Industry.
