0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant

China 0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant supplier
0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant supplier 0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant supplier 0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant supplier 0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant supplier

Large Image :  0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS
Model Number: UPAC-8628D60

Payment & Shipping Terms:

Minimum Order Quantity: 500m
Price: $1.8~2.3/m2
Packaging Details: one roll in poly bag
Delivery Time: 15 working days after the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 square meters per day
Contact Now
Detailed Product Description
Basic Cloth: 7628 Fiberglass Tape: C-Glass
Weave: Plain Color: Orange
Weight: 280g/m2 Thickness: 0.2mm
Working Temperature: -50~+260℃ Fire Resistance: Good

0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant​



Introduce



Acrylic coated glass fabric has good resistance to fire and heat, it's able to work in temp.-50℃~260℃.

The weave-set treatment can reduce the airborne of glass during fabrication. By this way, it enables the user to sew ,cut,and punch holes more effectively.

UPAC-8628D60 is a medium weight fiberglass fabric, weave-set treatment on both sides to improve fabrciating property when sewing and laminating. This fabric is used for fireproof blanket,removable insulation covers, hull boards, or other fire control systems.

Fiberglass Fabric material is asbestos-free,harmless to human being.

Unionfull provides varieties of thickness, color option for different applications purpose.



Data



Weight 280g/m2
Thickness 0.2mm
Yarn Fiberglass
Construction Check board
Color Orange
Standing temperature -50~+260 ℃
Treatment Acrylic on two sides
Width 1000mm
Flame retardant Yes



Properties



1.used in the temperature from -70ºC to 260ºC

2.resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years

3.high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM

4.good flexibility and high surface friction

5.chemical corrosion resistance



Advantages



1. Good mechanical properties

2. Oil retardant, chemical resistant

3. Easy to be holed, sewn and fabricated.

4. Excellent abrasion resistance property.

5. Excellent tensile strength.

6. Bears temperature up to 260 degree.



Main applications



1. Fire curtain roll

2. Fire blanket

3. Fire screen

4. Industrial thermal insulation sheet



Pictures

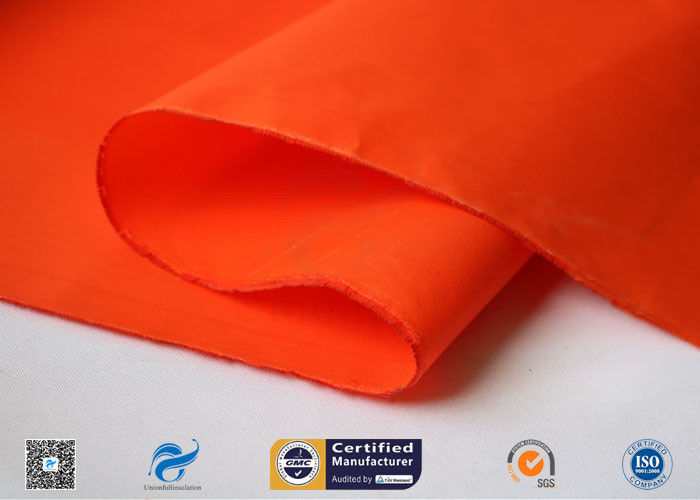

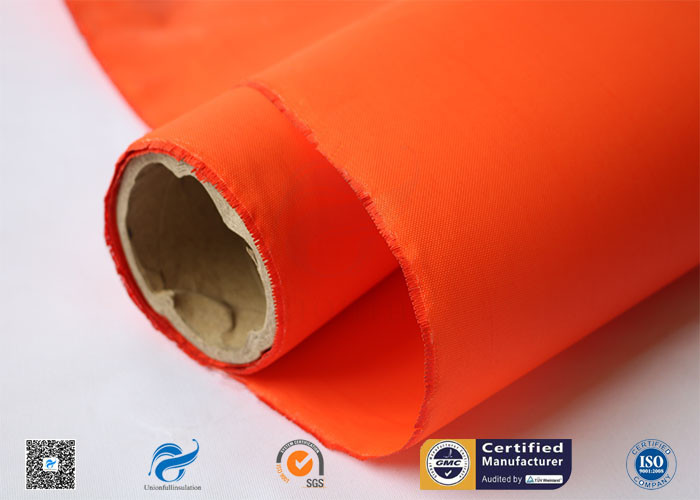

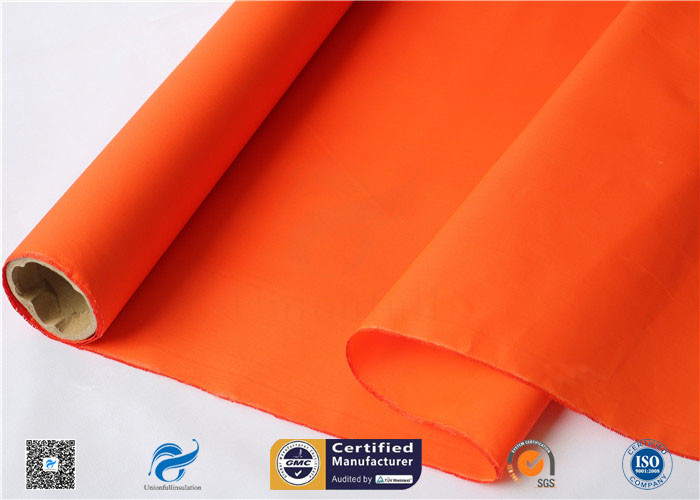

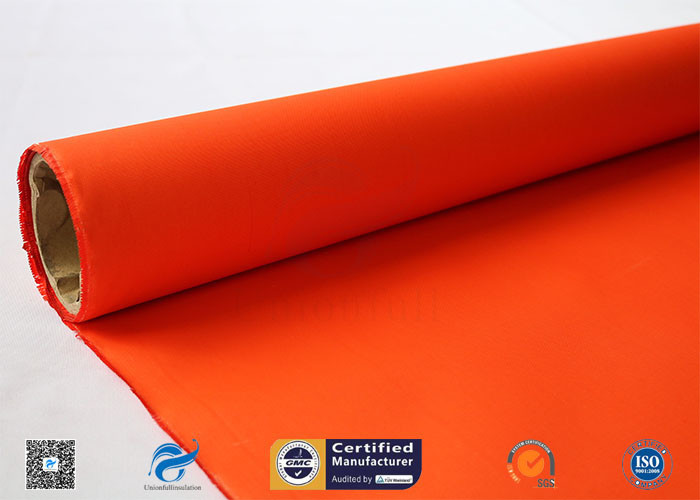

0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant



0.2mm Orange Acrylic Coated Fiberglass Cloth High Temperature Resistant
