PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose

China PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose supplier
PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose supplier PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose supplier PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose supplier PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose supplier

Large Image :  PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPFAD-200

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: US $2 - 10 / meter
Packaging Details: 5pcs one woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 15,000 meters per day
Contact Now
Detailed Product Description
Type: HVAC Systems Diameter: 200mm
Color: Grey Size: 5m, 10m Long
Temperature: -50 To 260℃ Material: PVC Coated Fiberglass Fabric

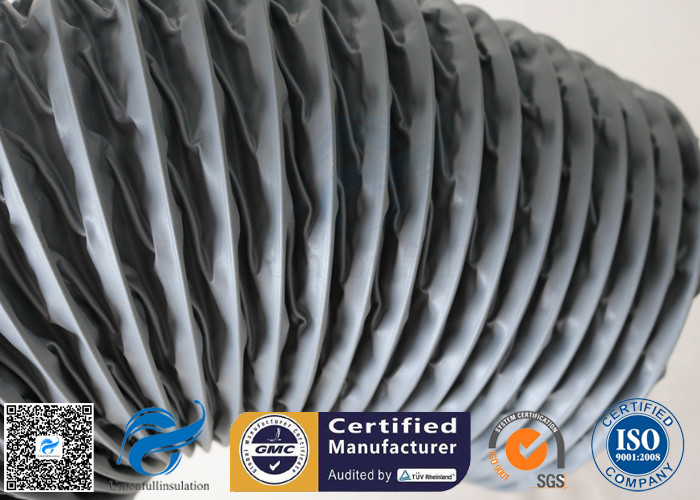

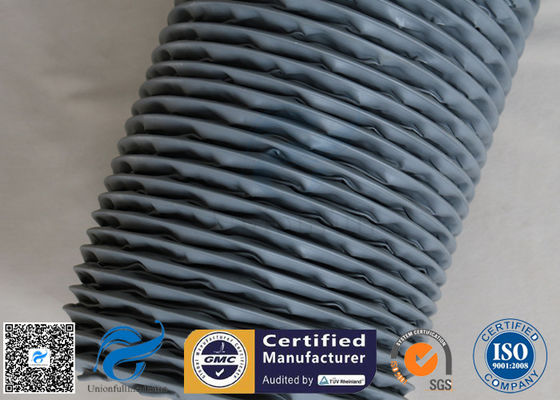

PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose



Flexible air duct, high temperature vent telescopic hose is made of fire resistant PVC coated fiber glass fabric and steel spiral wire. This flexible fiberglass vent hose is widely used in HVAC and ventilation system. PVC coated fiberglass cloth is 550℃ heat resistant, chemical acid, alkali resistant, plain woven fibre glass fabric coated with grey PVC on two sides. PVC coating improves the waterproof feature of fiberglass basic cloth. Excellent heat resistant and tear resistant PVC coated glass fabric makes the final PVC fiberglass air duct hose durable, reusable, abrasion resistant, anti chemical agents and corrosion resistant. PVC coated fiber glass fabric canresist heat below 260℃. Standard diameter is 150mm or 200mm, ducting length is 5 meters or 10 meters.



Fiberglass fabric air duct is widely used for residential and commercial air movement applications, which is the most economical solution to air-handling applications. Its material PVC coated fibre glass fabric is easy to fabricate. You can cut the air duct when you use it and don't need any special tool.



Specification



  1. Diameter range: 50 - 609 mm
  2. Max. working pressure: 3,000Pa
  3. Max. air velocity: 30 m/s
  4. Packing: woven bag



Items Fiber Glass Flexible Air Duct
Material

Fiber glass cloth (PVC coated)

steel spiral wire

Thickness 0.25mm
Diameter 150mm, 200mm
Hose Length 5m, 10m
Color Grey
Use Temperature -50 to 260℃



Propeties



  • No special tools required for cutting or fixing, easy to fabricate
  • Flexible, compressible
  • Durable and light weight, abrasion resistant
  • Heat resistant, this air duct can be use from -50 to 260 degree C
  • Fiber glass fabric is a high strength cloth
  • Its materials are anti chemical agents, anti corrosion
  • Easy to install, economical solution for HVAC system



Application



  • Ventilation of welding and galvanizing plants
  • Hot air distribution
  • Industrial dust removal, electronic factory, bathroom for air exhausting.
  • Air supply, underground working environment, such as subway construction, tunnel construction, mining areas and basement building projects
  • Ventilation and extraction of dust, fumes or volatile gas and waste gas exhaust out
  • Factory air conditioning, cooling supply widely used in working environments such as airport, as flexible connection between grilles diffusers, fans and other air movement units
  • Low, medium pressure central HVAC systems and ventilation systems
  • Recommended for industrial air movement and chemical fumes control applications
  • Confined space ventilation
  • Fume, garage exhaust
  • Pollution control






PVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent HosePVC Coated Fiberglass Fabric Grey Flexible Ventilation Air Ducting Vent Hose
