Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SDS |
| Model Number: | UPE-8522 |
| Minimum Order Quantity: | 100 meters |
| Price: | $0.69-0.99/ Meter |
| Packaging Details: | 100m one roll, 20 rolls one pallet |
| Delivery Time: | 10 days after receiving payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 70,000 square meter per day |
| Type: | E-glass | Weight: | 4oz |
|---|---|---|---|
| Weave: | Plain | Thickness: | 0.12mm |
| Color: | White | Width: | 70cm, 27.5 Inches |
| High Light: | glass fibre fabric,fiber glass cloth |
||

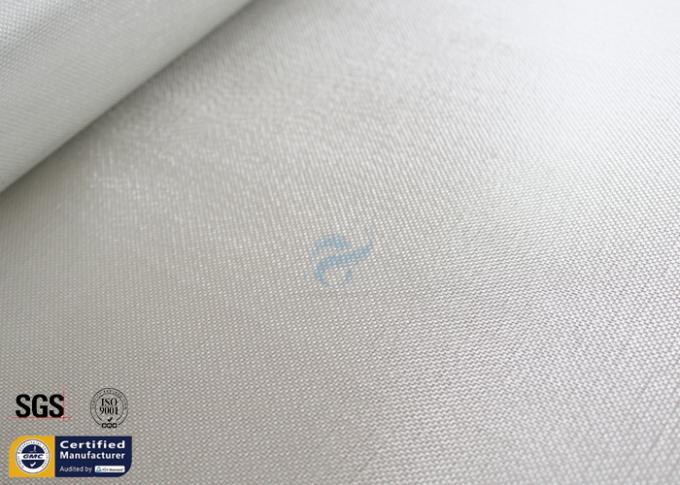

Surfboard Fiberglass Cloth 4OZ Plain E Glass Laminating 100M Fabric Roll
There is a series of light-weight but high strength fabric for surfboard laminating. Common used specifications are 4oz 6oz and 8oz. With excellent high strength, flexibility and easy to wet out, E-glass fiberglass fabric is economical and ideal materials for glassing.
4oz is used for short board normally so its width is 27.5 inches. It improves the strength of surfboard but is able to keep it at low weight. What's more, fiberglass fabric is eco-friendly, oil resistant, chemical resistant and durable.
During glassing, some layers of e-glass fiberglass fabrics will be applied to the surfboard deck. Usually three layers: two on the top and one on the bottom. Standard roll length of 4oz, 6oz, 8oz surfboard fiberglass fabric is 100 meters.
Data Sheet
| Item | 4OZ Fiberglass Cloth |
| Style | E-glass |
| Weave | Plain |
| Yarn | G150 1/2, G150 1/2 |
| Thread Count | 9.6 / 8.7 per cm |
| Weight | 4oz / sq.yd |
| Thickness | 0.12mm |
| Standard Width | 70cm, 27.5 inches |
| Roll Length | 100 meters |
| Use Temperature | -50 to 550℃ |
| Sizing | Silane or others |
Feature
Application
Pictures
