E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable

China E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable supplier
E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable supplier E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable supplier E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable supplier E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable supplier

Large Image :  E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UNP8120W-12-70

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: $0.69-0.99/ Meter
Packaging Details: One roll 100m in carton
Delivery Time: Two week after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 51,000 square meter per day
Contact Now
Detailed Product Description
Material: Fiber Glass Fabric Type: E-glass
Weight: 4oz/sq.yd Thickness: 0.12mm
Roll Length: 100M Temperature: 550℃

E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable




4oz e-glass clear fiberglass cloth is a lightweight, fire resistant plain weave cloth. Its high tensile strength and flexibility provides great durability and fabrication. 4oz, 6oz and 8oz are standard specification for surfboard glassing. These economical woven fabric with tear resistance and stable properties can keep the surfboard in high strength but low weight.

When do the fiberglass laminating, sevaral layers of 4oz or 6oz e-glass fabrics are applied to the surfboard deck. Typically 3 layers: two on the top and one on the bottom. Standard width of 4oz e-glass fiber cloth is 27.5 inches, which is suitable for shortboard. Roll length of 4oz and 6oz fabric is 100 meters.

Density or yarn count of fiberglass cloth will be a little different between two countries. This 4 ounce fiberglass cloth is produced based on USA fabric data from a Brazil customer. Unionfull could produce on customers' requirements. Our customers from Australia, Brazil, Mexico and Spain all confirm the quality.


Data Sheet


Item Surfboard Fiberglass Cloth
Yarn Type E-glass
Weave Plain
Yarn G150 1/2, G150 1/2
Count Per CM 9.6 / 8.7
Area Weight 4oz / sq.yd
Thickness 0.12mm
Standard Width 27.5 Inches (70CM)
Length 100m one roll
Continuous Work Temperature -50 to 550℃



Properties



  1. High tensile strength
  2. Abrasion resistant
  3. Fire resistant
  4. Chemical resistance
  5. Corrosion resistance
  6. Easily to be wet out by resins
  7. Easy to fabricate
  8. Durable, flexible
  9. Surfboard glassing supplies


Application



  • Surfboard&boat building and repair
  • Printed circuit board making
  • Pipe anti-corrosion
  • Septic tank, pool building
  • Wire&cable electronic insulation​ cover


Pictures

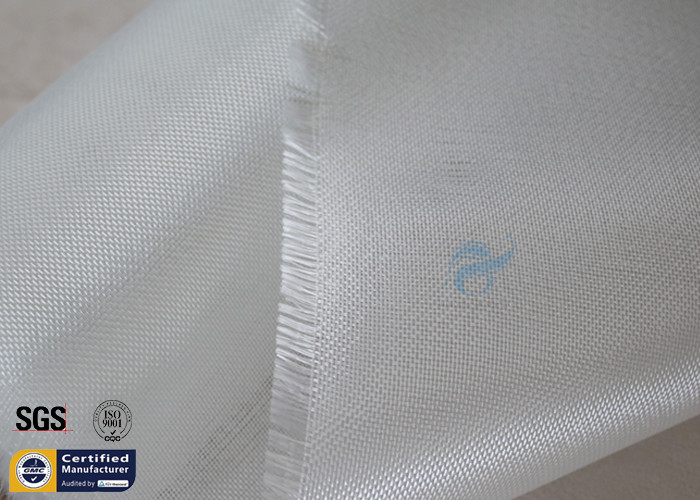

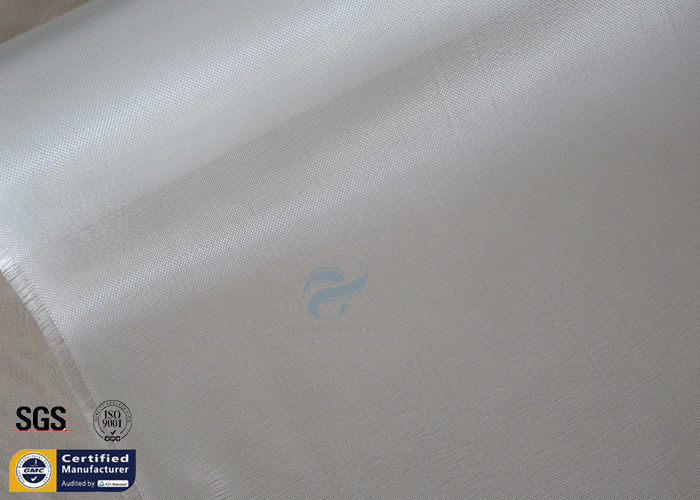

E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable

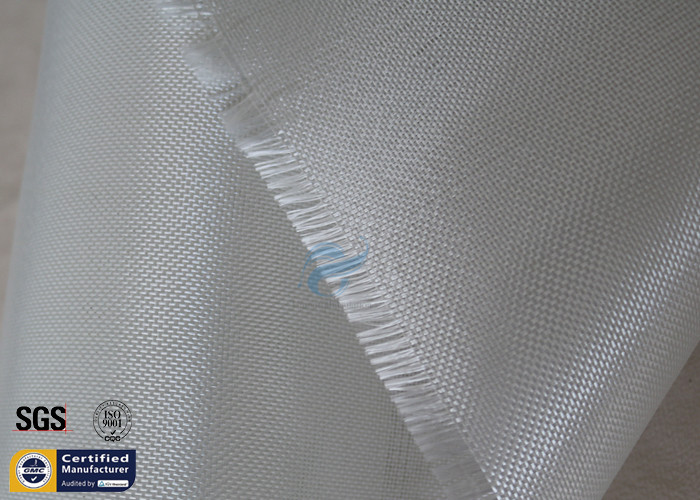

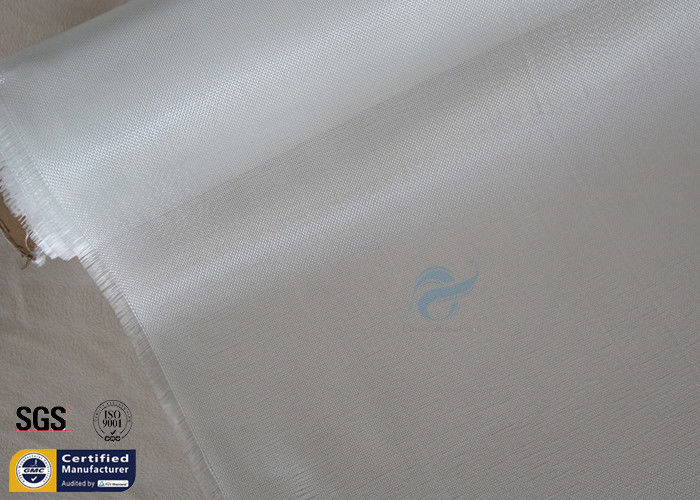

E Glass Surfboard Fiberglass Cloth 4OZ 27" 0.12mm White Lightweight Durable
