Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS;TUV |
| Model Number: | UNP8120W-12-70 |
| Minimum Order Quantity: | 109.36 yards (100m) |
| Price: | $0.69-0.99/ Meter |
| Packaging Details: | One roll 100m in carton |
| Delivery Time: | One week after receiving payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 52,000 square meter per day |
| Type: | Fiberglass Cloth | Yarn: | E-glass |
|---|---|---|---|
| Weight: | 120gsm | Length: | 100m One Roll |
| Resin: | Epoxy And Polyester | Weave: | Plain |
| High Light: | surfboard fibreglass cloth,fibre glass fabric |
||

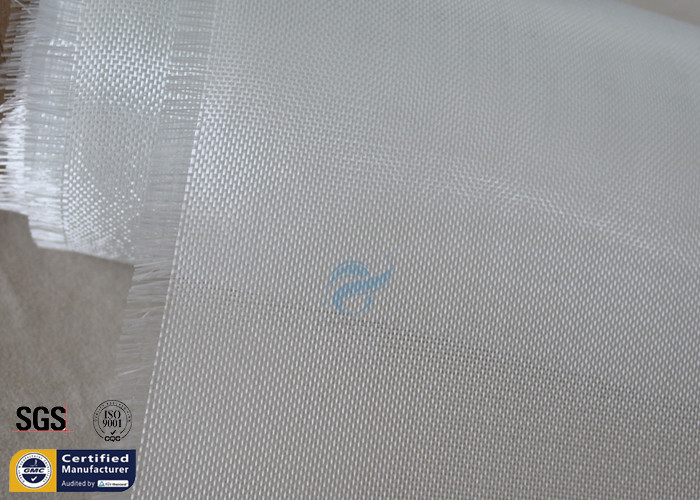

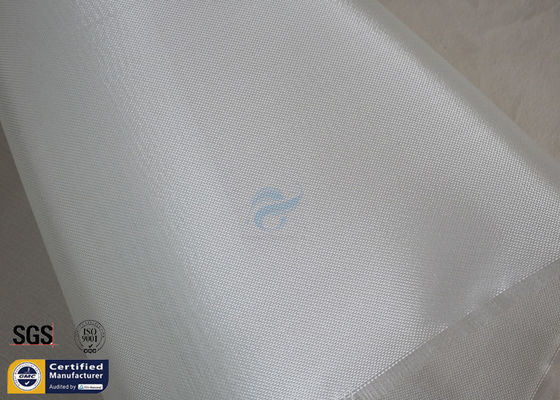

120GSM Surfboard Fiberglass Cloth 4OZ 27" 100M E Glass Fabric Transparent
4oz e-glass fiberglass fabric is a light weight, high temperature resistant plain weave cloth. It owns high tensile strength and flexibility and it is able to provides great strength and fabrication. 4oz, 6oz and 8oz are standard specification for surfboard glassing/laminating. These economical material with tear resistance and durability can keep the surfboard in high strength but low weight.
When do the fiber glassing, sevaral layers of 4oz or 6oz e-glass fabrics are used to the surfboard deck. Typically it is 3 layers totally: two on the top and one on the bottom. 4oz e-glass fiber cloth is mainly used for shortboard so standard width of 4oz is 27.5 inches. Unionfull roll length of 4oz 120GSM fiberglass fabric is 100 meters.
Density or yarn count of fiberglass cloth will be a little different between two countries. However, Unionfull can promise the high strength and quality. Our customers from Australia, Brazil, Mexico and Spain all confirm its quality.
Data Sheet
Unionfull is able to produce the fabric as the customer required.
| Item | Surfboard Fiberglass Cloth |
| Yarn Type | E-glass |
| Weave | Plain |
| Yarn | G150 1/2, G150 1/2 |
| Count Per CM | 9.6 / 8.7 |
| Area Weight | 4oz / sq.yd |
| Thickness | 0.12mm |
| Width | 27.5 Inches (70CM) |
| Length | 100m / roll |
| Continuous Work Temperature | -50 to 550℃ |
