PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃

China PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃ supplier
PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃ supplier PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃ supplier PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃ supplier PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃ supplier

Large Image :  PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8ADG-20-500

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: US $2 - 2.8 / meter
Packaging Details: Poly bag, Carton
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10,000 meters per day
Contact Now
Detailed Product Description
Materials: Fiberglass Fabric, Steel Spiral Wire Coating: Grey PVC
Diameter: 200mm Length: 5m Or 10m
Temperature Resistance: 260℃ Fabric Thickness: 0.25MM

PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃



With PVC coated fiber glass cloth permanently bonded to a spring steel wire helix, flexible air duct is extremely high strength. ​PVC coated fibre glass flexible duct is widely used for flexible ducting installation. Fiberglass cloth is woven special textile with great fire resistant and other properties like chemical resistance, oil resistance, durability and electrical insulation. PVC coating provides the fireproofing and waterproofing of the glass fiber cloth. What's more, high temp PVC coated glass fiber material is abrasion resistant and tear resistant.



Air duct is designed as superior alternative in pressure heating & cooling systems. Fiber glass flexible duct is an cost-effective solution to all air handling application. Fiber glass fabric is so flexible that it provides great fabrication and it is very easy to process. It satisfies increasing industrial demands.



Specification



  1. Diameter: 50 - 600 mm
  2. Max. working pressure: 3,000Pa
  3. Max. air velocity: 30 m/s



Items PVC Fiberglass Flexible Air Duct
Material Fibre Glass Cloth, Spring Steel Wire Helix
Cloth Thickness 0.25mm
Diameter 200mm
Color Grey
Length 5m or 10m
Temperature Resistance

PVC Coating: below 260 ℃

Fiberglass ≤550℃





Features



  • Heat insulation, -50 to 260℃
  • Fire protection
  • Flexible, durable
  • Waterproof, fireproof
  • Chemical resistance
  • Light weight (compared with same strength materials)
  • Save total installation cost
  • Long length, less waste
  • All parts are self-extinguishing



Application



  1. Dust control
  2. Air handling
  3. Fume control
  4. Ventilation of hot work place
  5. Hot air distribution
  6. HAVC system

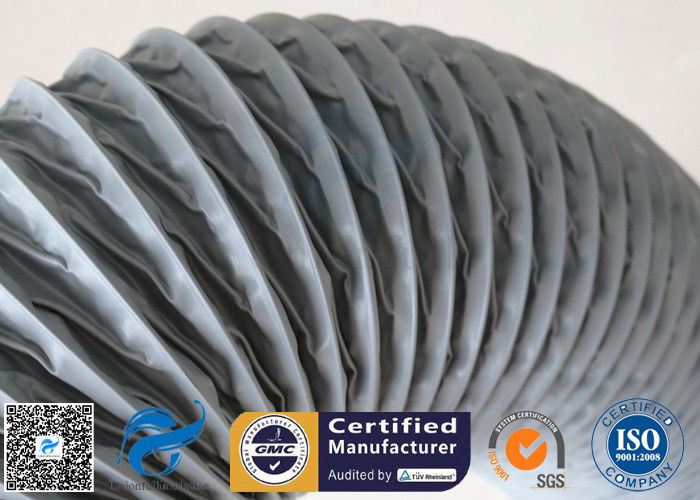

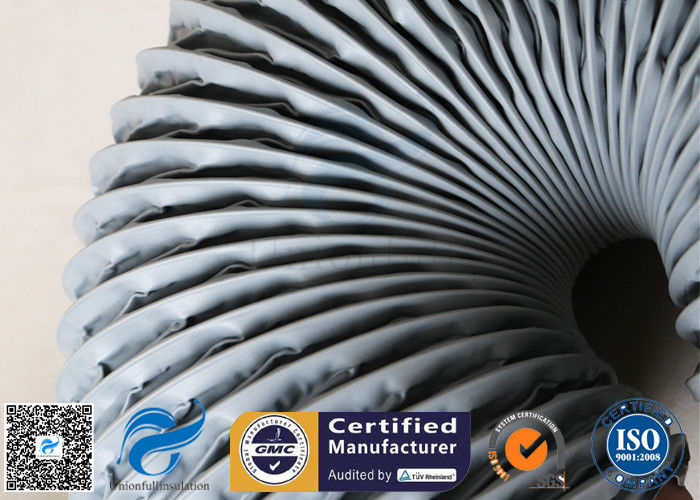

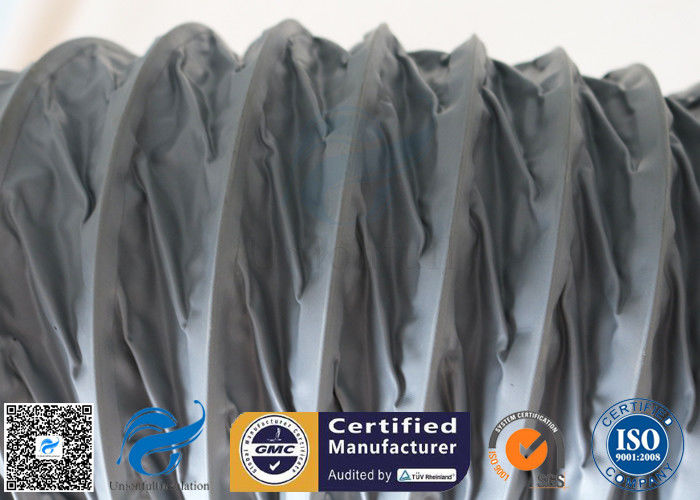

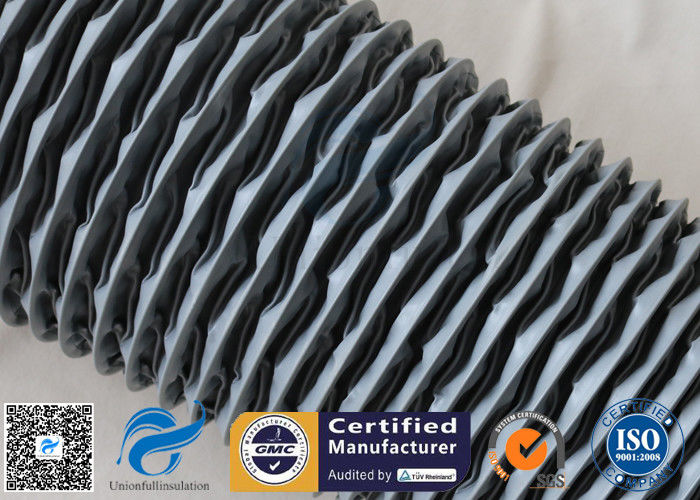

Picutre:



PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃PVC Coated Fiberglass Fabric Flexible Air Duct Grey Waterproof 200MM 5M 260℃
