6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction

China 6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction supplier
6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction supplier 6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction supplier 6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction supplier 6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction supplier

Large Image :  6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8200PG-D40-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $7--$20 / Piece
Packaging Details: One piece in poly bag
Delivery Time: 3 weeks after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 Square Meters Per Day
Contact Now
Detailed Product Description
Material: PVC Coated Fiberglass Cloth Diameters: 150MM
Color: Grey Standard Length: 5m, 10m
Working Pressure: To 3000 Pa Temperature: -50 To 260℃

6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction



Construction and Materials: Coated spring steel wire helix Special coating prevents corrosion, PVC coated fiberglass cloth.



Flexible air duct is designed for use in all pressure cooling and heating ventilation and air-conditioning installations. Air duct provides an economical way to  for slove problems like misalignment between system components and ducting around obstacles where fabricated and fitted ducts are difficult and costly to install. Flexible air duct is ver suitable for new jobs or refit work, and is especially useful when making system extensions or changing conditioned zones now or in the future.



It is widely used for excessive vibration or systems requiring constant mobility. Besides, its material PVC coated fiberglass fabric is fire resistant and chemical resistant, it is suitable for high temperature air application. It is 280g/m2 fiber glass fabric coated with grey PVC on both sides. It is 0.25mm thick. Fibreglass cloth is light weight compared with other materials which with similar properties. Its high tensile strength, abrasion resistance, chemical resistance all improve flexible duct's properties.



Heat resistance of this PVC glass fiber air duct is -50 to 260℃. The basic fiberglass fabric can withstand heat below 550℃.





Specification



Item Flexible Air Duct
Material PVC Coated Fiberglass Cloth
Color Grey
Diameter 150mm
Thickness 0.25mm
Length 5m, 10m
Temperature

Fiberglass ≤ 550℃

PVC Coating ≤ 260℃





Features



  • Flame resistance
  • Electrical insulation
  • High strength, tear resistant
  • Abrasion resistant
  • Easy to install
  • Fiberglass cloth for waterproofing



Application



  • Ventilation of welding and galvanizing plants
  • Hot air distribution
  • Automobile exhaust hose reel
  • Gas exhaust control
  • Hot fume control



Details Pictures

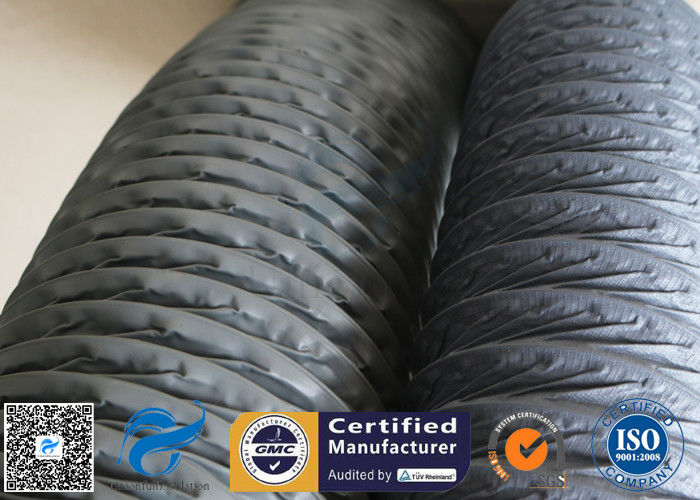

6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction
