Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008; SGS |
| Model Number: | JT8430PUB-D50-100 |
| Minimum Order Quantity: | 600 Square Meters |
| Price: | $1.8--$2.35 / square meter |
| Packaging Details: | 50 meters one roll in poly bag |
| Delivery Time: | 3 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 45,000 square meters per day |
| Material: | 430g Fiberglass Fabric | Total Weight: | 530gsm |
|---|---|---|---|
| Weaving Type: | Satin Weave | Coating: | Red Acrylic |
| Standard Width: | 1000mm | Temperature: | Fiberglass Cloth≤550℃ |
| High Light: | glass fibre fabric,fiber glass cloth |
||

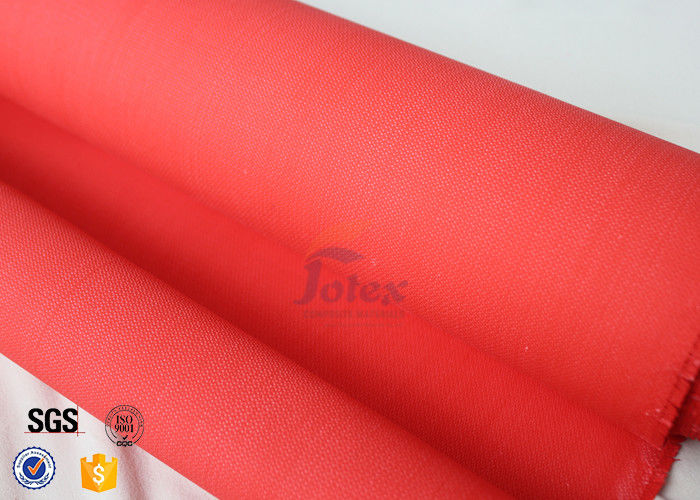

0.45Mm 530GSM Fiberglass Cloth Roll Red Acrylic Coated For Welding Blanket
Acrylic coated fiberglass fabric is made of basic cloth 430g/m2 fiberglass fabric in satin weaving type, then it is coated with red acrylic on one side or two sides. This coated fiberglass cloth is fire resistant. Its basic cloth can withstand 550℃ continuously. Also, it is chemical resistant and abrasion resistant. Acrylic coating is able to resist 260℃. It makes the fiberglass with more electrical insulation and spark protection.
Based on its properties, this coated fiberglass cloth is widely used for industrial fireproof application, such as fire blanket, welding protective cover, heat insulation fabric, railway sparks bottom part.
Total weight of this red acrylic coated fiberglass fabric is 530g/m2. Acrylic coating is 50g per side. Standard width is 1000mm.
Specification
| Item |
Acrylic Coated Fiberglass Fabric |
| Yarn | E-glass |
| Weaving | Satin Weave |
| Basic Fabric | 430g/m2 |
| Total Weight | 530g/m2 |
| Thickness | 0.5mm |
| Coating | Black Polyurethane |
| Temperature |
Coating: -50℃ to +260℃ |
| Width | 100cm |
