7628 200gsm Plain Weave Electronic Fibreglass Fabric For Printed circuit Board

China 7628 200gsm Plain Weave Electronic Fibreglass Fabric For Printed circuit Board supplier
7628 200gsm Plain Weave Electronic Fibreglass Fabric For Printed circuit Board supplier 7628 200gsm Plain Weave Electronic Fibreglass Fabric For Printed circuit Board supplier 7628 200gsm Plain Weave Electronic Fibreglass Fabric For Printed circuit Board supplier 7628 200gsm Plain Weave Electronic Fibreglass Fabric For Printed circuit Board supplier

Large Image :  7628 200gsm Plain Weave Electronic Fibreglass Fabric For Printed circuit Board

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8200W-20-100

Payment & Shipping Terms:

Minimum Order Quantity: 200 Meters
Price: $0.80--1.35/m2
Packaging Details: 100m one roll in poly bag, then in carton
Delivery Time: 2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 150,000 Meters Per Day
Contact Now
Detailed Product Description
Materials: Fiberglass Yarns Weave Type: Plain Weave
Weight: 200g Grade: E-glass
Width: 100CM Feature: Electrical Insulation

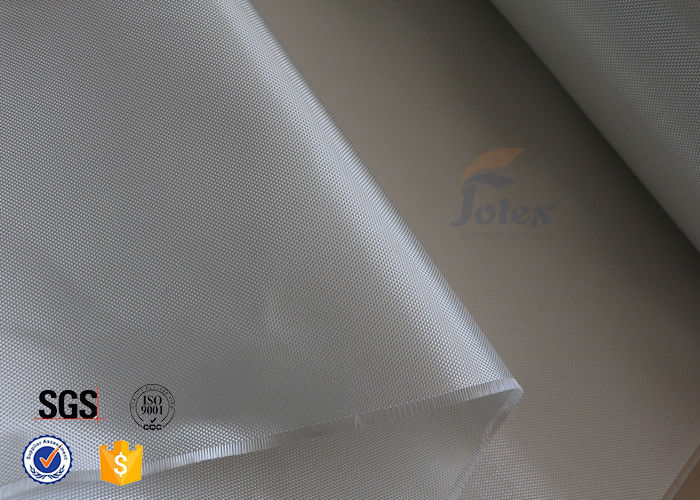

 7628 200gsm 0.2mm Electronic Fibreglass Fabric For Printed-circuit Board



7628 fiberglass fabric is one of electronic fiber glass cloth. It is woven by e-glass fiberglass yarns in plain weaving. It is mainly applied for electronics application. 7628 is an high density fiberglass cloth in 17.3/13 per cm.  Fiberglass cloth is high strength fabric with fire resistance. This fabric is a ideal mateirial in electronics fields because of its fireproofing, abrasion resistance, flexiblity and ageing resistancewhich make it suitable for high pressure laminates for printed circuit boards.

7628 fiberglass fabric is weighed at 200g. Its thickness is 0.2mm which is suitable for laminating. Plain weave makes it a stable structure woven cloth. Yarn type is EC9 68 1X0 in warp and weft directions. This 6oz fiberglass cloth is able to resist 550degree C for a long time.

Data Sheet Of 7628 Fiberglass Fabric

Item No. 7628
Description Electronic Fiberglass Fabric
Weave Plain
Weight 200 g/m2
Thickness 0.2 mm
Thread Count, per cm 17.3/13
Working Temperature ≤550℃





Properties:



  • High density, durable
  • No shrink and hot loss under continuous heating
  • Fire resistance, 550℃
  • Easy wet out by most resins
  • Physical/chemistry stability
  • Aging resistance, abrasion resistance
  • Electrical lnsulation



Application:



  • Copper clad lamination
  • Surfboard, boat manufacturer
  • Bath tubs, swinmming pool production
  • Printed-circuit board
